  2. Black 4U Tower SC745BAC with Redundant 1230W PowerSupply

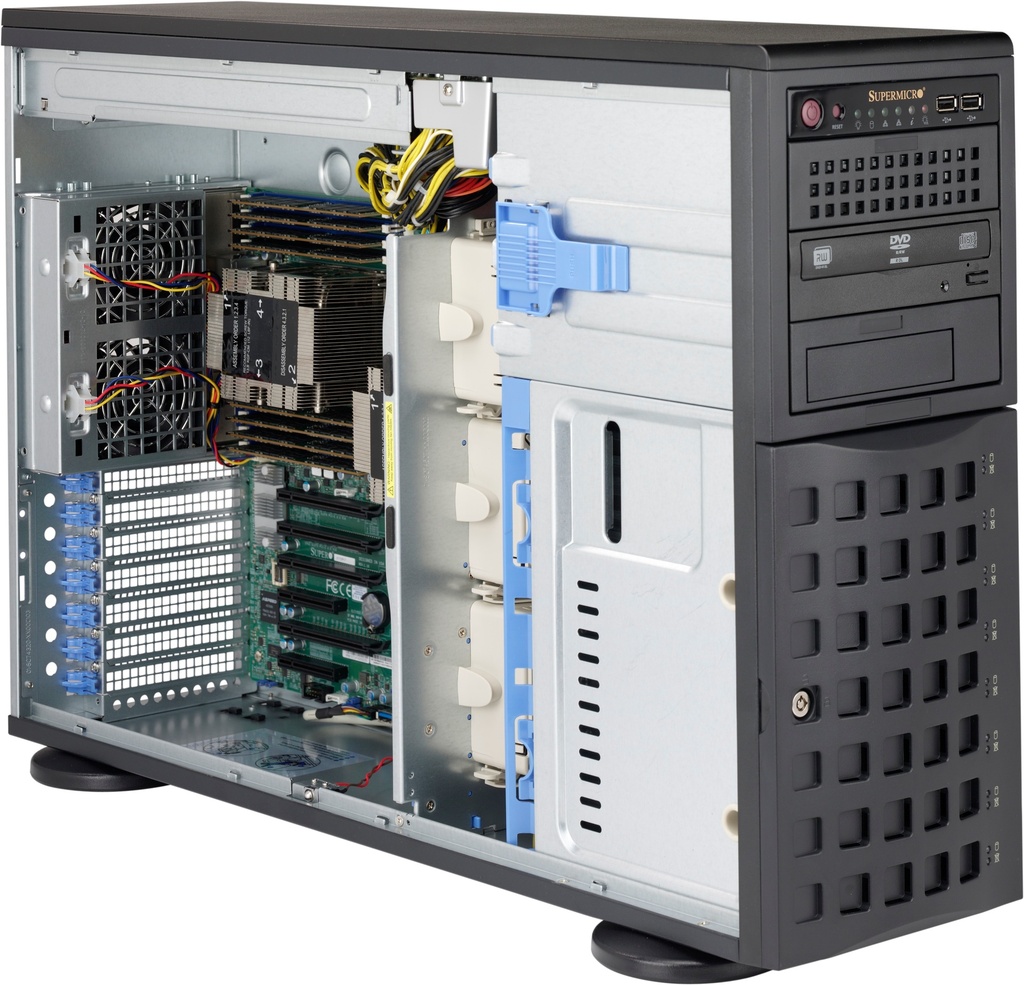

Black 4U Tower SC745BAC with Redundant 1230W PowerSupply

CSE-745BAC-R1K23B
https://safeconsulting.no/web/image/product.template/8890/image_1920?unique=73d2afe

kr 10,407.44 10407.44 NOK kr 10,407.44

kr 10,407.44

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro CSE-745BAC-R1K23B is a 4U full tower chassis supporting up to E-ATX motherboards, equipped with a 1200W redundant titanium level high-efficiency power supply, and designed for optimal system cooling and expandability.

    Key Features

    • 8x 3.5"/ 2.5" SAS3/SATA3 Backplane for Hot-Swappable Drives
    • Front HDD Door Lock & Side Panel Intrusion Switch
    • Front I/O Ports: 2x USB 3.0
    • 3x Middle 8cm (9400 rpm) PWM Fans & 2x 8cm (9400 rpm) PWM Fans
    • 4U / Full Tower Chassis Supports max. Motherboard, Sizes - E-ATX 13.68" x 13"/ATX/Micro ATX
    • 1200W (1 + 1)Redundant Titanium LevelCertified High-Efficiency Power Supply
    • 3x 5.25" External HDD Drive Bays & 8x 3.5"/2.5" Hot-Swappable HDD Drives

    Key Applications

    • Data Centers
    • Network Servers
    • High Performance Computing
    • Virtualization
    • Enterprise Applications

    Description

    The Supermicro CSE-745BAC-R1K23B 4U full tower chassis is engineered to support maximum motherboard sizes up to E-ATX 13.68" x 13". It features 8x 3.5"/ 2.5" SAS3/SATA3 hot-swappable drive bays, front I/O ports including 2x USB 3.0, and 3x 5.25" external drive bays. The chassis is equipped with advanced cooling solutions such as 3x 80mm high-performance fans and 2x rear PWM fans. Additional features include front HDD door lock, side panel intrusion switch, and comprehensive system monitoring. The 1200W high-efficiency redundant power supply ensures reliable power delivery.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperChassis 745BAC-R1K23B
    Dimensions
    Height
    • 17.8" (452 mm)
    Width
    • 7" (178 mm)
    Depth
    • 25.5" (647 mm)
    Gross Weight
    • 62 lbs (28.12 kg)
    Net Weight
    • 59 lbs (26.76 kg)
    Packaging (W x H x L)
    • 24.6" (625 mm) x 14" (356 mm) x 31.3" (795 mm)
    Available Color
    • Black
    Front Panel
    Button
    • Power On/Off button
    • System Reset button
    LED
    • Power status LED
    • HDD activity LED
    • System Information LED
    • Power Fail LED
    • 2 Network Activity LEDs
    Port
    • 2x USB 3.0 Port(s)
    Systems Cooling
    Fans
    • 2x 80mm PWM Rear Chassis Fans (9.4k RPM)
    • 3x 80mm high-performance fan(s) (9.4k RPM)
    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)
    Power Supply
    • 1U, Redundancy, Titanium, Input: 100-127Vac, 200-240Vac, and 240Vdc, output: +12V/+5Vsb, PM Bus 1.2, (L)336x(W)76x(H)40 mm, EMI Class B,
    Power Efficiency
    • 96%
    Total Output Power and Input
    • 1200W with Input 200 - 240Vac
    • 1000W with Input 100 - 127Vac
    • 1200W with Input 200 - 240Vdc
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 336 x 76 x 40 mm
    Output Type
    • Backplanes (connector)
    +12V
    • Max: 100A / Min: 0A (200Vac - 240Vac)
    • Max: 83A / Min: 0A (100Vac - 127Vac)
    +5Vsb
    • Max: 4A / Min: 0A
    Power Distributor
    • PDB-PT747-4648
    • O/P: 12/212
    • +5V Max: 30A
    • +3.3V Max: 24A
    • -12V Max: 0.6A
    Certification
    • No/A
    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • CE/EMC
    • FCC
    • FCC class B
    • UL/CB

    Standard Part List

    Part Number Quantity Description
    Air Shroud
    MCP-310-49001-0N1SC745 Intel DP X9, X8 PC air shroud 1368x13/12x13MB
    HD Backplane
    BPN-SAS3-743A18-port 4U/Tower 3.5-inch SAS3/SAS2/SATA3 12Gbps backplane for SC743/SC745 chassis
    Cable(s)
    CBL-00871CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,50CM
    CBL-0160L2US POWER CORD 16AWG, PB FREE
    CBL-0216L34 TO 4 PIN FAN POWER CABLE, 210MM
    CBL-0471L1USB3.0 Internal Cable-80cm (19pin Female to 19pin Female)
    CBL-SAST-06312Cross-over Mini SAS HD to 4 SATA w/SB, S. 55cm. 30AWG
    Part(s)
    MCP-120-00116-0N7Blank FH L-bracket with 4x4 vent holes
    MCP-230-00018-011Black plastic top cover for SC743,745
    MCP-290-74502-0B1Plastic feet (4 pcs set) for 4U tower chassis, black color
    Fan(s)
    FAN-0180L4280x80x38 mm, 9.4K RPM, Hot-swappable Rear Exhaust Fan for X11 Purley Platform Newly Enabled 4U Chassis
    FAN-0182L4380x80x38 mm, 9.4K RPM, Hot-swappable Middle Cooling Fan for X11 Purley Platform Newly Enabled 4U Chassis
    Drive Tray(s)
    MCP-220-00193-0N8SC743/SC745/SC822/SC823 Gen2 2.5"/3.5" 2-in-1 HDD tray
    Power Distributor
    PDB-PT747-46481POWER DISTRIBUTOR FOR SC747 W/ GRAPHIC OUTPUT FEATURE
    Power Supply & Accessory
    PWS-1K23A-SQ21U, Redundancy, Titanium, Input: 100-127Vac, 200-240Vac

    Optional Part List

    Part Number Quantity Description
    Cable
    CBL-0153L-6 pin to 2x big 4 pin GPU power extension from PDB, 16cm, 20AWG
    Cable Management Arm
    MCP-290-00073-0N-Supermicro Cable Management Arm for 2U, 3U and 4U chassis
    Fan Kit
    MCP-320-00046-0N-KIT-Rear fan kit (8.2K RPM fan) for SC747B / 835X / 836BH
    GPU/Add-on Card Dummy
    MCP-240-00096-0N-SC747B GPU/Add-on Card Dummy Assembly (2 slots) - single pack
    HDD Tray
    MCP-220-00080-0B-Black hotswap gen 2 3.5 to 2.5 HDD tray
    LCD
    MCP-220-00095-0B-5.25" USB LCD Kit
    Mounting Rail
    CSE-PT26L-(B)-4U Chassis Rail Kit (Includes Side Handles) (B = Black), Extendable length 26"~35.9"
    Peripheral Drive(s)
    DVM-LITE-DVDRW24-HBT-BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE PBF
    Rear Exhaust Fan
    MCP-320-00047-0N-KIT-Rear fan kit (5K RPM fan) for SC745B / 835X / 836BH
