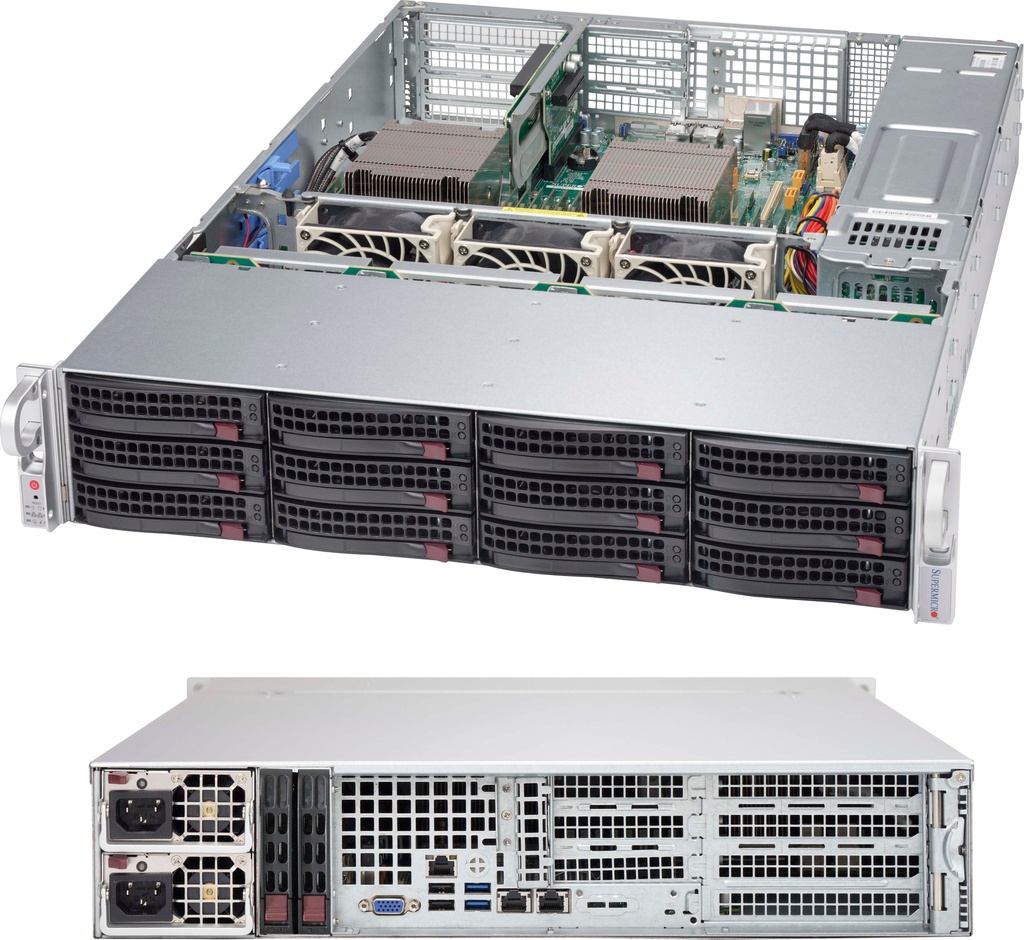

  2. Black 2U SC826B WIO Chassis w/ 920W Redundant PWS

Black 2U SC826B WIO Chassis w/ 920W Redundant PWS

CSE-826BAC4-R920WB
https://safeconsulting.no/web/image/product.template/11919/image_1920?unique=68add06

kr 12,847.74 12847.74 NOK kr 12,847.74

kr 12,847.74

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro CSE-826BAC4-R920WB is designed for high-performance and reliable server applications. It supports dual and single Intel and AMD processors and offers flexible storage with 12x 3.5" hot-swap drive bays, optional 2x 2.5" hot-swap drive bays, and a hybrid backplane supporting up to 8x SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe storage devices.

    Key Features

    • 2U chassis support for SMC Proprietary WIO motherboards max. motherboard size - 12" x 13", 13" x 13.68".Support up to 12"x13" MB with rear 2.5" HDD option installed
    • 12 x 3.5" hot-swap drive bay, optional 2 x 2.5" hot-swap drive bay8x SAS3 12Gbps and 4x Hybrid (NVMe/SAS3) 3.5" HDD
    • 12-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices
    • 1U 920W Redundant Platinum Super Quiet power supply W/PMbus
    • WIO Slots (4x Full-height, Half-length + 3x Low-profile)
    • 3 x 8cm high-performance PWM fan(s)Optional 5 x 6cm 4pin high performance fan(s)

    Key Applications

    • Data Centers
    • Enterprise Servers
    • Cloud Computing
    • Database Management

    Description

    The Supermicro CSE-826BAC4-R920WB is a state-of-the-art 2U chassis built to support high-density server configurations. It accommodates SMC Proprietary WIO motherboards with sizes up to 12" x 13", or optionally, 13" x 13.68". The chassis has versatile storage capabilities with 12x 3.5" hot-swap drive bays and an optional 2x 2.5" hot-swap drive bay. It features an advanced hybrid backplane for high-speed SAS3 12Gbps connectivity, supporting up to 8x 3.5-inch HDD/SSD and 4x NVMe storage devices. It is powered by a 920W redundant platinum-certified power supply and includes robust cooling solutions with up to five optional high-performance fans. Ideal for demanding applications requiring high reliability and performance.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperChassis 826BAC4-R920WB
    Dimensions
    Height
    • 3.5" (89 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 25.5" (647 mm)
    Gross Weight
    • 55 lbs (24.95 kg)
    Net Weight
    • 40 lbs (18.14 kg)
    Packaging (W x H x L)
    • 26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm)
    Available Color
    • Black
    Front Panel
    Button
    • Power On/Off button
    • System Reset button
    LED
    • Power status LED
    • HDD activity LED
    • 2 Network Activity LEDs
    • Unit Identification (UID) LED
    • Fan Fail/System Over Heat LED
    Systems Cooling
    Fans
    • Optional 5x 6cm 4pin high performance fan(s)
    • 3x 8cm high-performance PWM fan(s)
    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)
    Power Supply
    • 1U 920W Redundant Platinum Super Quiet power supply W/PM Bus
    Power Efficiency
    • 94%
    Total Output Power and Input
    • 920W with Input 100 - 240Vac
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 336 x 76 x 40 mm
    Output Type
    • Backplanes (gold finger)
    +12V
    • Max: 75A / Min: 1A (100Vac - 240Vac)
    +5Vsb
    • Max: 4A / Min: 0A
    Power Distributor
    • PDB-PT826-8824
    • O/P: 12V/135
    • +5V Max: 40A
    • +3.3V Max: 24A
    • -12V Max: 0.6A
    Certification
    • Platinum Certified
    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • CE/EMC
    • FCC class B
    • TUV/CB
    • UL/CUL

    Standard Part List

    Part Number Quantity Description
    Air Shroud
    MCP-310-29001-0N1SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13
    Bracket
    MCP-320-82601-0N1Middle fan bracket for 826B/216B with 3 X 8cm fan
    HD Backplane
    BPN-SAS3-826A-N4112-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices
    Cable(s)
    CBL-0071L1ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
    CBL-0160L2US POWER CORD 16AWG, PB FREE
    CBL-0182L1PWR EXTENSION.HDD TO RIGHT ANGLE HDD,PBF
    CBL-PWEX-10693PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,30CM,22AWG,5A/pin,RoHS
    Part(s)
    MCP-230-82603-0N1Top cover for SC826B, 216B WIO/UIO w/ FH-AOC mylar
    MCP-240-00103-0N12U WIO riser card bracket for SC825, SC826, SC213, SC216
    MCP-290-00088-0N1SC119 Intrusion assembly
    MCP-290-82605-0V1826 handle
    MCP-290-82606-0N1SC826 HDD Backplane Bracket
    Fan(s)
    FAN-0126L4380x80x38 mm 7K RPM Chassis Middle Fan w/ Housing
    Front Panel
    FPB-TB826116 pin Cable Adaptor Board for SC826
    Drive Tray(s)
    MCP-220-00075-0B12Black gen 5.5 hot-swap 3.5" HDD tray
    MCP-290-82607-0N1826B/216B rear dummy cover for 2 X 2.5" HDD cage,RoHS
    Power Distributor
    PDB-PT826-S88241PDB with shorter 24pin and 8pin cables for SC826B
    Power Supply & Accessory
    PWS-920P-SQ2920W 1U Redundant PWS W/ Quiet Mode
    Mounting Rail(s)
    MCP-410-00007-0N1Rail screw bag
    MCP-290-00053-0N1Rail set, quick/quick, default for 2,3U 17.2"W
    MCP-290-00060-0N1Threaded rail adapter default for round hole rack
    Rear Window
    MCP-240-82609-0N1SC826B, 216B WIO rear window

    Optional Part List

    Part Number Quantity Description
    Front Bezel
    MCP-210-82601-0B-Black Front Bezel for 826 chassis
    HDD Kit
    MCP-220-82609-0N-Rear 2.5 x 2 Hot swap HDD kit for 216B/826B/417B/846X/847B
    MCP-220-82616-0N-12G 2.5x2 Drive Kit w/ Status LED (216B/826B/417B/846X/847B
    Short Rail
    MCP-290-00058-0N-Quick-release outer rail for square hole short-depth rack (19"~26.4")
    Tray(s)
    MCP-220-00116-0B-Black gen-5 3.5-to-2.5 NVMe drive tray, Orange tab (for hotswap NVMe drive),RoHS/REACH
