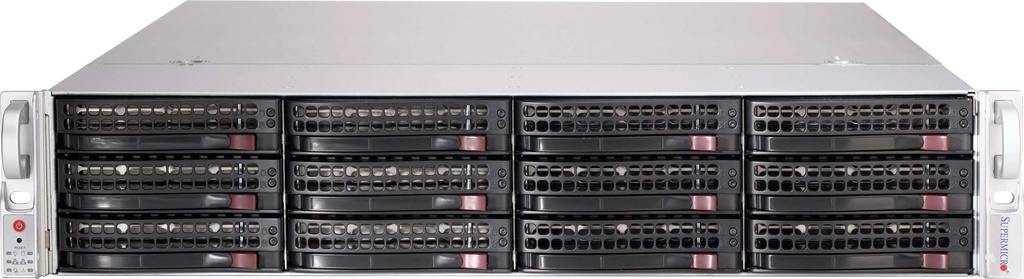

2U SC826B 12 Drive JBOD W/Single Expander,Redundant 740W

SKU: CSE-826BE1C-R741JBOD
Brand: Supermicro
https://safeconsulting.no/web/image/product.template/12728/image_1920?unique=a170b45

kr 15,457.08 15457.08 NOK kr 15,457.08 VAT Excluded

kr 15,457.08 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Summary Description

    This 2U storage JBOD chassis features 12 hot-swappable HDD bays, a single expander, and redundant 740W platinum level power supplies. Ideal for cloud backup, data replication, and high-density archive storage applications.

    Key Features

    • Cloud Backup, Data Replication, or High Density Archive Storage Applications 2U Storage JBOD Chassis with capacity 12 x 3.5" hot-swappable HDDs bays
    • Single Expander Backplane Boards support SAS3/2 or SATA3 HDDs with 12Gb/s throughput
    • 4 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
    • 1x IPMI port for Remote System Power on/off and system monitoring
    • Support NTP for time synchronization & RTC battery backup
    • 740W (1+1) 95% efficient Platinum level power supplies
    • 3 x 80mm high efficient hot-swappable fans for best system cooling
    • Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications
    • Qualified SAS HBA / controller: AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller

    Key Applications

    • Cloud backup
    • Data replication
    • High-density archive storage
    • Enterprise data storage
    • Remote system monitoring
    • High availability applications
    • Redundant power supply setups
    • Efficient system cooling
    • NTP synchronization
    • Remote power management

    Description

    The Supermicro 2U SC826B 12 Drive JBOD is designed for cloud backup, data replication, or high-density archive storage. It supports single expander backplane boards for SAS3/2 or SATA3 HDDs with 12Gb/s throughput. The chassis includes 4 x Mini-SAS HD ports for internal or external cascading expander combination, a remote IPMI port for system monitoring, and is cooled by 3 x 80mm hot-swappable fans. Powered by 740W redundant platinum power supplies.

    Product Specifications

    Specification Details
    Product SKUs- Discontinued SKU. Please contact sales-rep for possible OEM production quantities. MOQ may apply
    CSE-826BE1C-R741JBOD
    • SuperChassis 826BE1C-R741JBOD
    Dimensions
    Height
    • 3.5" (89 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 25.5" (647 mm)
    Net Weight
    • 29 lbs (13.15 kg)
    Gross Weight
    • 60 lbs (27.22 kg)
    Packaging (W x H x L)
    • 26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm)
    Available Color
    • Black
    Front Panel
    Buttons
    • Power On/Off button
    • System Reset Button
    • Unit Identification (UID) button
    LEDs
    • 1 Network Activity LEDs
    Systems Cooling
    Fans
    • 3 x 80x38mm hot-swap cooling fan(s)
    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non-Operating Relative Humidity Range
    • 5% - 95% (non-condensing)
    Power Supply
    • 1U 740W Redundant Platinum Power Supply W/PM Bus
    Power Efficiency
    • 94%
    Total Output Power and Input
    • 740W with Input 100 - 240Vac
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 336 x 76 x 40 mm
    Output Type
    • Backplanes (gold finger)
    -12V
    • Max: NAA
    +12V
    • Max: 61.7A / Min: 0.2A (100Vac - 240Vac)
    +5Vsb
    • Max: 4A / Min: 0A
    +12Vsb
    • Max: NAA
    Power Distributor
    • PDB-PT826-8824
    • O/P: 12V/135
    • +5V Max: 40
    • +3.3V Max: 24
    • -12V Max: 0.6
    Certification
    • Platinum Certified
    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • FCC class A
    • TUV/CB
    • UL/CUL
