Summary Description
The Supermicro 2U SC826B JBOD chassis features 12x 3.5" hot-swappable HDD bays, dual expander backplane boards with SAS3/2 support, and 600W redundant power supplies. Ideal for high-density archive storage and cloud backup.
Key Features
- Cloud Backup, Data Replication, or High Density Archive Storage Applications2U Storage JBOD Chassis with capacity 12 x 3.5" hot-swappable HDDs bays
- Dual Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
- 8 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
- 1x IPMI port for Remote System Power on/off and system monitoring
- Support NTP for time synchronization & RTC battery backup
- 600W (1+1) 94% efficient Platinum level power supplies
- 3 x 80mm high efficient hot-swappable fans for best system cooling
- Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications
- Qualified SAS HBA / controller:AOC-SAS3-9500-8E- 12Gb/s 2-external ports SAS3 HBAAOC-SAS3-9500-16E- 12Gb/s 4-external ports SAS3 HBAAOC-SAS3-9580-8I8E- 12Gb/s 2-external ports SAS3 RAID Controller
Key Applications
- Cloud Backup
- Data Replication
- High Density Archive Storage
- Enterprise Data Centers
- High Availability Systems
- Remote System Management
- Large Data Warehousing
- Scientific Computing
- Big Data Analytics
Description

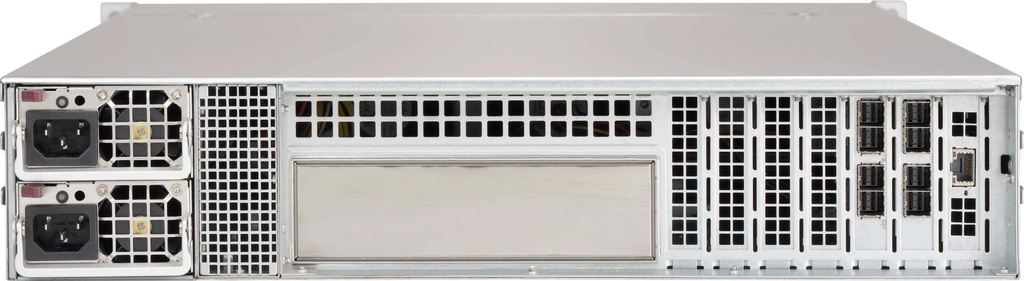

The Supermicro 2U SC826B JBOD chassis is designed for high-density archive storage and demanding data replication applications. It features 12x 3.5" hot-swappable HDD bays and dual expander backplane boards with support for SAS3/2 HDDs, offering 12Gb/s throughput. The chassis ensures high performance with 8x Mini-SAS HD ports and includes 600W redundant power supplies for reliability. Remote system management and monitoring are facilitated by an IPMI port.
Product Specifications
| Specification | Details |
|---|---|
| Product SKUs | |
| SKUs |
|
| Dimensions | |
| Height |
|
| Width |
|
| Depth |
|
| Gross Weight |
|
| Net Weight |
|
| Packaging (W x H x L) |
|
| Available Color |
|
| Front Panel | |
| Button |
|
| LED |
|
| Systems Cooling | |
| Fans |
|
| Operating Environment (System) | |
| Operating Temperature Range |
|
| Non-Operating Temperature Range |
|
| Operating Relative Humidity Range |
|
| Non Operating Relative Humidity Range |
|
| Power Supply | |
| |
| Power Efficiency |
|
| Total Output Power and Input |
|
| AC Input Frequency |
|
| Dimensions (L x W x H) |
|
| Output Type |
|
| +12V |
|
| +5Vsb |
|
| Power Distributor |
|
| Certification |
|
| Regulatory (Power Supply) | |
| Power Supply Safety / EMC |
|
Standard Part List
| Part Number | Quantity | Description |
|---|---|---|
| Air Shroud | ||
| MCP-310-29001-0N | 1 | SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13 |
| Bracket | ||
| MCP-120-84702-0N | 1 | CB3 mounting bracket for use on chassis with CB2 holes. Bracket to mount CB3 card on existing CB2 standoff on SC847/SC417/SC837/SC826/SC836/SC846 in JBOD configuration.,HF,RoHS/REACH,PBF |
| MCP-120-84705-0N | 1 | LP PCI bracket for CBL-NTWK-0587 LAN extension cable,HF,RoHS/REACH,PBF |
| HD Backplane | ||
| BPN-SAS3-826EL2 | 1 | SAS 12G dual-expander BPN, 2x LSISAS3x28, 12x 3.5" drive |
| Control Board | ||
| CSE-PTJBOD-CB3 | 1 | JBOD chassis power control board with IPMI remote on/off feature |
| Cable(s) | ||
| CBL-0160L | 2 | US POWER CORD 16AWG, PB FREE |
| CBL-CDAT-0601 | 1 | 4 Pin to 4 Pin I2C cable, 50cm, 26AWG,RoHS |
| CBL-NTWK-0587 | 1 | INT RJ45M/RJ45F Adapter W/ PCB 50CM 24AWG for SC847D JBOD |
| CBL-PWEX-1069 | 3 | PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,30CM,22AWG,5A/pin,RoHS |
| CBL-SAST-0532 | 4 | Internal Mini-SAS HD to Mini-SAS HD 50cm,30AWG,12Gb/s |
| CBL-SAST-0593 | 4 | Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s |
| Part(s) | ||
| MCP-290-82605-0V | 1 | 826 handle |
| MCP-290-82606-0N | 1 | SC826 HDD Backplane Bracket |
| MCP-230-82602-0N | 1 | Top cover for SC826B/216B/825B |
| MCP-260-00011-0N | 1 | I/O shield without any opening |
| Fan(s) | ||
| FAN-0126L4 | 3 | 80x80x38 mm 7K RPM Chassis Middle Fan w/ Housing |
| Front Panel | ||
| FPB-TB826 | 1 | 16 pin Cable Adaptor Board for SC826 |
| Drive Tray(s) | ||
| MCP-220-00075-0B | 12 | Black gen 5.5 hot-swap 3.5" HDD tray |
| Power Distributor | ||
| PDB-PT826-8824 | 1 | PDB with longer 24pin for SC826B |
| Power Supply & Accessory | ||
| PWS-609P-1R2 | 2 | 1U, platinum efficiency, 600W/650W, AC input: 100-127/200-240Vac. |
| Mounting Rail(s) | ||
| MCP-290-00053-0N | 1 | Rail set, quick/quick, default for 2,3U 17.2"W |
| MCP-290-00060-0N | 1 | Threaded rail adapter default for round hole rack |
| Rear Window | ||
| MCP-240-82608-0N | 1 | 216B/826B LP rear window,RoHS/REACH,PBF |
Optional Part List
| Part Number | Quantity | Description |
|---|---|---|
| Cable | ||
| CBL-SAST-0677 | - | 3m external Mini SAS HD to external mini SAS HD.28AWG,RoHS/REACH |
| CBL-SAST-0573 | - | External mini SAS HD to external mini SAS HD cable 28AWG (1M) |
| CBL-SAST-0690-1 | - | MINI SAS HD,12G,EXT,2M,30AWG,RoHS |
| HDD Tray | ||
| MCP-220-00118-0B | - | Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH |
