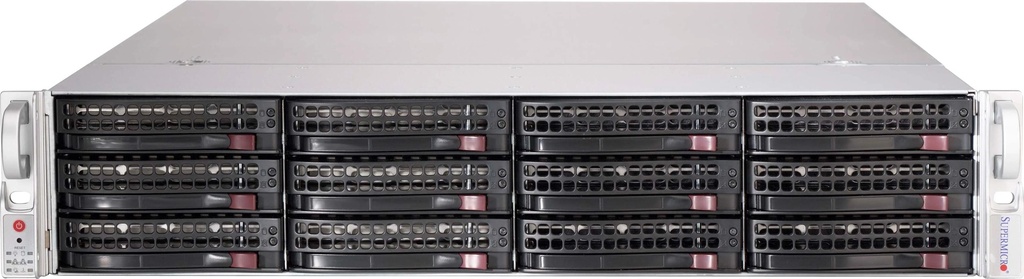

2U SC826B 12 Drive JBOD W/Dual Expander, Redundant 740W

CSE-826BE2C-R741JBOD
https://safeconsulting.no/web/image/product.template/12733/image_1920?unique=a415753

kr 20,548.84 20548.84 NOK kr 20,548.84

kr 20,548.84

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    This 2U JBOD chassis supports up to 12 hot-swappable HDDs, dual expander backplanes, and 740W redundant power supplies. It features remote management and advanced cooling system.

    Key Features

    • Cloud Backup, Data Replication, or High Density Archive Storage Applications 2U Storage JBOD Chassis with capacity 12 x 3.5" hot-swappable HDDs bays
    • Dual Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
    • 8 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
    • 1x IPMI port for Remote System Power on/off and system monitoring
    • Support NTP for time synchronization & RTC battery backup
    • 740W (1+1) 95% efficient Platinum level power supplies
    • 3 x 80mm high efficient hot-swappable fans for best system cooling
    • Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications
    • Qualified SAS HBA / controller: AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller

    Key Applications

    • Cloud Backup
    • Data Replication
    • High-Density Archive Storage
    • Enterprise Storage Solutions
    • Data Center Expansion

    Description

    This 2U storage JBOD chassis is designed for high-density archive storage applications, supporting up to 12 x 3.5" hot-swappable HDDs. It features dual expander backplanes with 12Gb/s throughput, 740W redundant Platinum level power supplies, and advanced system cooling with 3 hot-swappable fans. Additionally, it includes 1x IPMI port for remote management, high availability, and is qualified for multiple SAS controllers.

    Product Specifications

    Specification Details
    Product SKUs- Discontinued SKU. Please contact sales-rep for possible OEM production quantities. MOQ may apply
    CSE-826BE2C-R741JBOD
    • SuperChassis 826BE2C-R741JBOD
    Dimensions
    Height
    • 3.5" (89 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 25.5" (647 mm)
    Net Weight
    • 29 lbs (13.15 kg)
    Gross Weight
    • 60 lbs (27.22 kg)
    Packaging (W x H x L)
    • 26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm)
    Available Color
    • Black
    Front Panel
    Buttons
    • Power On/Off button
    • System Reset Button
    • Unit Identification (UID) button
    LEDs
    • 1 Network Activity LEDs
    Systems Cooling
    Fans
    • 3 x 80x38mm hot-swap cooling fan(s)
    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non-Operating Relative Humidity Range
    • 5% - 95% (non-condensing)
    Power Supply
    • 1U 740W Redundant Platinum Power Supply W/PM Bus
    Power Efficiency
    • 94%
    Total Output Power and Input
    • 740W with Input 100 - 240Vac
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 336 x 76 x 40 mm
    Output Type
    • Backplanes (gold finger)
    -12V
    • Max: NAA
    +12V
    • Max: 61.7A / Min: 0.2A (100Vac - 240Vac)
    +5Vsb
    • Max: 4A / Min: 0A
    +12Vsb
    • Max: NAA
    Power Distributor
    • PDB-PT826-8824
    • O/P: 12V/135
    • +5V Max: 40
    • +3.3V Max: 24
    • -12V Max: 0.6
    Certification
    • Platinum Certified
    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • FCC class A
    • TUV/CB
    • UL/CUL
