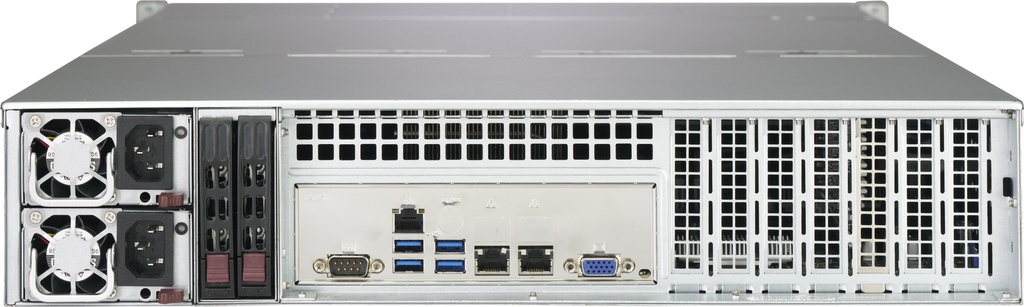

Black 2U SC829H LP Chassis w/ R. 1600W PWS

CSE-829HE1C4-R1K62LPB
https://safeconsulting.no/web/image/product.template/11923/image_1920?unique=68add06

kr 17,946.84 17946.84 NOK kr 17,946.84

kr 17,946.84

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro CSE-829HE1C4-R1K62LPB is a highly versatile 2U chassis designed to support maximum motherboard sizes up to 13.68" x 13.4" along with 16x 3.5" hot-swap drive bays and advanced cooling solutions.

    Key Features

    • 2U chassis supports for maximum motherboard sizes - 13.68" x 13.4", E-ATX 12" x 13", ATX 12" x 10" motherboards
    • 16 x 3.5" hot-swap SAS3/SATA drive bay, optional 2 x 2.5" hot-swap SAS3/SATA drive bay
    • 12-Port 2U Backplane with Expander support up to 8 x 3.5" SAS3/SATA3 HDD/SDD and 4 x SAS3/SATA3/NVMe Storage Devices,HF,RoHS/REACH4-port internal SAS3 12Gbps backplane, support up to 4x 3.5-inch SAS3/SATA3 HDD/SSD
    • 7 low-profile expansion slot(s)
    • 4 x 80x38mm hot-swap cooling fan(s)

    Key Applications

    • Data centers
    • Enterprise servers
    • High-performance computing
    • Cloud infrastructure
    • Storage solutions

    Description

    Enhance your data center infrastructure with the Supermicro CSE-829HE1C4-R1K62LPB. This 2U chassis is engineered to support a variety of motherboard sizes, including E-ATX and ATX, and can house up to 16x 3.5" SAS3/SATA drive bays with optional 2x 2.5" hot-swap bays. With top-tier cooling from 4x hot-swap fans and additional features such as robust expansion slots, a sophisticated backplane, and multiple system monitoring options, this chassis is designed for maximum efficiency and reliability.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperChassis 829HE1C4-R1K62LPB
    Dimensions
    Height
    • 3.5" (89 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 27.75" (705 mm)
    Gross Weight
    • 62 lbs (28.12 kg)
    Net Weight
    • 41.5 lbs (18.82 kg)
    Packaging (W x H x L)
    • 25.9" (658 mm) x 10.8" (274 mm) x 39.3" (998 mm)
    Available Color
    • Black
    Front Panel
    Button
    • Power On/Off button
    • System Reset button
    LED
    • Power status LED
    • System Information LED
    • Power Fail LED
    • 2 Network Activity LEDs
    • HDD Fail LED
    Systems Cooling
    Fans
    • 4x 80x38mm hot-swap cooling fan(s)
    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 60°C (-40°F - 140°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)
    Power Supply
    • 1U 1600W Redundant Titanium AC Power Supply with PM Bus 73.5x203x40mm
    Power Distributor
    • PDB-PT829H-2824
    • O/P: 12V/120A
    • +5V Max: 45A
    • +3.3V Max: 24A
    • -12V Max: 0.6A
    Certification
    • No/A

    Standard Part List

    Part Number Quantity Description
    Air Shroud
    MCP-310-82930-0B1Mylar 1U air shroud for SC829H X11
    HD Backplane
    BPN-SAS3-826EL1-N4112-Port 2U Backplane with Expander support up to 8 x 3.5" SAS3/SATA3 HDD/SDD and 4 x SAS3/SATA3/NVMe Storage Devices,HF,RoHS/REACH
    BPN-SAS3-829HA-A414-port internal SAS3 12Gbps backplane, support up to 4x 3.5-inch SAS3/SATA3 HDD/SSD
    Cable(s)
    CBL-0160L2US POWER CORD 16AWG, PB FREE
    CBL-0217L116PIN CNTL PANEL CONVERTER CBL FOR SC826,PBF
    Part(s)
    MCP-120-00062-0N7Blank LP L-bracket (5x5 square hole)
    MCP-120-82920-0N1Mid tray side support BKT for SC829H
    MCP-230-82902-0N1Top middle cover for SC829H
    MCP-230-82903-0N1Top rear cover for SC829H
    MCP-290-00088-0N1SC119 Intrusion assembly
    MCP-290-82909-0V12U Auto-latch left handle for SC829H
    MCP-290-82921-0V1SC829H Auto-latch right handle
    Fan(s)
    FAN-0158L4480x80x38 mm, 10.5K RPM, Optional Middle Cooling Fan for X10 2U Ultra and HFT Series Servers,RoHS/REACH
    Front Panel
    MCP-280-00018-0N1SC826 front control board adapter
    Drive Tray(s)
    MCP-290-82607-0N1826B/216B rear dummy cover for 2 X 2.5" HDD cage,RoHS
    MCP-220-00075-0B12Black gen 5.5 hot-swap 3.5" HDD tray
    MCP-220-82902-0N1Middle tray plate for SC829H
    MCP-220-82903-0N4Internal mid tray with handle for SC829H
    Power Distributor
    PDB-PT829H-282412U standard output with 24Pin PDB support up to
    Power Supply & Accessory
    PWS-1K62A-1R2AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH
    Mounting Rail(s)
    MCP-290-00053-0N-01136"; Rail set for Auto-latch, quick/quick, 2, 3U 17.2";W

    Optional Part List

    Part Number Quantity Description
    Adaptor Bracket
    MCP-120-82503-0N-Cable arm adapter for SC825LP,213LP (MCP-290-00073-0N required),HF,RoHS/REACH,PBF
    Cable
    CBL-SAST-0929-OCuLink controller to MiniSAS HD backplane V.91,INT,PCIe NVMe SSD, 57CM,34AWG
    CBL-SAST-0972-OCuLink controller to MiniSAS HD backplane V.91,INT,PCIe NVMe SSD, 70CM,34AWG
    Cable Management Arm
    MCP-290-00073-0N-Supermicro Cable Management Arm for 2U, 3U and 4U chassis
    HDD Kit
    MCP-220-82616-0N-12G 2.5x2 Drive Kit w/ Status LED (216B/826B/417B/846X/847B
    HDD Tray Converter
    MCP-220-00043-0N-Black hot-swap gen 4 3.5 to 2.5 HDD tray
    MCP-220-00118-0B-Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH
    Rail
    MCP-290-00058-0N-Short rail set, quick release, 19.6"~26.9" Extendable Length
    Tray(s)
    MCP-220-00138-0B-Black gen-5.5 tool-less NVMe 3.5-to-2.5 drive tray, Orange tab
