  2. 3U SC836B 16 Drive JBOD W/Single Expander, Redundant 1KW

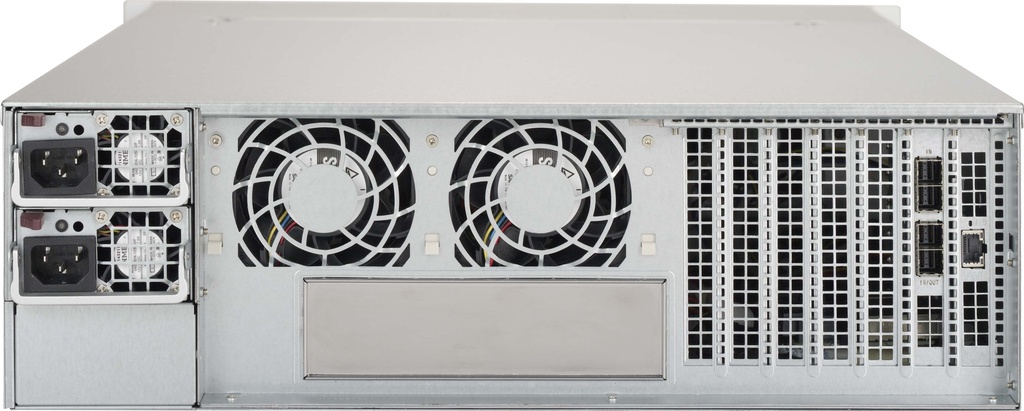

3U SC836B 16 Drive JBOD W/Single Expander, Redundant 1KW

CSE-836BE1C-R1K03JBOD
https://safeconsulting.no/web/image/product.template/12624/image_1920?unique=4175d88

kr 22,095.63 22095.63 NOK kr 22,095.63

kr 22,095.63

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    Designed for high-density storage applications, the Supermicro 3U SC836B JBOD chassis supports 16 hot-swappable 3.5" HDDs and offers 1000W redundant power supplies. It is ideal for cloud backup, data replication, or archive storage.

    Key Features

    • Cloud Backup, Data Replication, or High Density Archive Storage Applications3U Storage JBOD Chassis with capacity 16 x 3.5" hot-swappable HDDs bays
    • Single Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
    • 4 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
    • 1x IPMI port for Remote System Power on/off and system monitoring
    • Support NTP for time synchronization & RTC battery backup
    • 1000W (1+1) 96% efficient Titanium level power supplies
    • 5 hot-plug redundant cooling fans
    • Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications
    • Qualified SAS HBA / controller:AOC-SAS3-9500-8E- 12Gb/s 2-external ports SAS3 HBAAOC-SAS3-9500-16E- 12Gb/s 4-external ports SAS3 HBAAOC-SAS3-9580-8I8E- 12Gb/s 2-external ports SAS3 RAID Controller

    Key Applications

    • Cloud Backup
    • Data Replication
    • Archive Storage
    • High-Density Storage

    Description

    The Supermicro 3U SC836B JBOD chassis offers high-density storage with 16 hot-swappable 3.5" HDD bays. It includes single expander backplane boards supporting SAS3/2 HDDs with 12Gb/s throughput. Designed for cloud backup, data replication, or high-density archive storage, it features 1000W (1+1) redundant titanium-level power supplies.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperChassis 836BE1C-R1K03JBOD
    Dimensions
    Height
    • 5.2" (132 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 25.5" (647 mm)
    Gross Weight
    • 75 lbs (34.02 kg)
    Net Weight
    • 36 lbs (16.33 kg)
    Packaging (W x H x L)
    • 26.6" (676 mm) x 13" (330 mm) x 39.9" (1013 mm)
    Available Color
    • Black
    Front Panel
    Button
    • Power On/Off button
    • System Reset button
    • Unit Identification (UID) button
    LED
    • 1 Network activity LEDs
    Systems Cooling
    Fans
    • 2x 8cm hot-swap exhaust fan(s) & air shroud
    • 3x 8cm hot-swap redundant PWM cooling fan(s)
    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)
    Power Supply
    • 1U 800/1000W Redundant Titanium Single Output Power Supply W/PM Bus
    Power Efficiency
    • 96%
    Total Output Power and Input
    • 800W with Input 100 - 127Vac
    • 1000W with Input 200 - 240Vac
    • 1000W with Input 200 - 240Vdc
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 336 x 76 x 40 mm
    Output Type
    • Gold Finger (19 Pair Connector)
    +12V
    • Max: 66.7A / Min: 0A (100Vac - 127Vac)
    • Max: 83A / Min: 0A (200Vac - 240Vac)
    • Max: 83A / Min: 0A (200Vdc - 240Vdc)
    +5Vsb
    • Max: 4A / Min: 0A
    Power Distributor
    • PDB-PT826-8824
    • O/P: 12V/135
    • +5V Max: 40A
    • +3.3V Max: 24A
    • -12V Max: 0.6A
    Certification
    • Titanium Certified
    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • CE/EMC
    • UL/CB

    Standard Part List

    Part Number Quantity Description
    Air Shroud
    MCP-310-39001-0N1SC835/836/936 Intel DP X9-X10 PC air shroud 1368x13/12x13MB
    Bracket
    MCP-120-84702-0N1CB3 mounting bracket for use on chassis with CB2 holes. Bracket to mount CB3 card on existing CB2 standoff on SC847/SC417/SC837/SC826/SC836/SC846 in JBOD configuration.,HF,RoHS/REACH,PBF
    MCP-120-84706-0N1FH PCI bracket for CBL-NTWK-0587 LAN extension cable,HF,RoHS/REACH,PBF
    Control Board
    CSE-PTJBOD-CB31JBOD chassis power control board with IPMI remote on/off feature
    Cable(s)
    CBL-0071L1ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
    CBL-0296L39" 4 PIN FAN PWS EXTENSION CORD, PBF
    CBL-CDAT-060114 Pin to 4 Pin I2C cable, 50cm, 26AWG,RoHS
    CBL-NTWK-05871INT RJ45M/RJ45F Adapter W/ PCB 50CM 24AWG for SC847D JBOD
    CBL-PWEX-10691PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,30CM,22AWG,5A/pin,RoHS
    CBL-PWEX-10784PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,20CM,22AWG,5A/PIN,RoHS
    CBL-SAST-05324Internal Mini-SAS HD to Mini-SAS HD 50cm,30AWG,12Gb/s
    Part(s)
    MCP-230-82501-0N1Top cover for SC213,216,825,826,835,836,936,846
    MCP-120-00116-0N7Blank FH L-bracket with 4x4 vent holes
    MCP-290-83603-0N1SC836 HDD backplane bracket
    MCP-290-83605-0N1836B rear dummy cover for 2 X 2.5"; HDD cage
    MCP-290-00088-0N1SC119 Intrusion assembly
    MCP-290-83601-0V1 setSilver chassis handles (left and right) for SC836/835
    MCP-260-00011-0N1I/O shield without any opening
    CD-ROM & Accessory
    MCP-290-00007-011Black DVD dummy cover for SC825, 836
    Fan(s)
    FAN-0125L4280x32 mm 6.7K RPM SC836 Rear Exhaust Fan w/ Housing
    FAN-0126L4380x80x38 mm 7K RPM Chassis Middle Fan w/ Housing
    Front Panel
    FPB-FP836-D1Front control board Dual color LED(FP836-D)forSC823M,825,825
    Drive Tray(s)
    MCP-220-00007-011Black USB/COM port tray for SC825, 836
    MCP-220-00075-0B16Black gen 5.5 hot-swap 3.5" HDD tray
    Power Distributor
    PDB-PT826-88241PDB with longer 24pin for SC826B
    Power Supply & Accessory
    PWS-1K03A-1R21U 1000W Redundant Power Supply Titanium W/PMbus 76x40x336mm,RoHS/REACH
    Mounting Rail(s)
    MCP-290-00053-0N1Rail set, quick/quick, default for 2,3U 17.2"W
    MCP-410-00007-0N1Rail screw bag
    Rear Window
    MCP-240-83605-0N1836B chassis rear window (to support the optional MCP-220-83605-0N)

    Optional Part List

    Part Number Quantity Description
    Cable
    CBL-SAST-0677-3m external Mini SAS HD to external mini SAS HD.28AWG,RoHS/REACH
    CBL-SAST-0573-External mini SAS HD to external mini SAS HD cable 28AWG (1M)
    CBL-SAST-0690-1-MINI SAS HD,12G,EXT,2M,30AWG,RoHS
    Drive Trays
    MCP-220-00118-0B-Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH
