  2. 3U SC836B 16 DriveJBOD w/DualExpander,Redundant 600W PSW

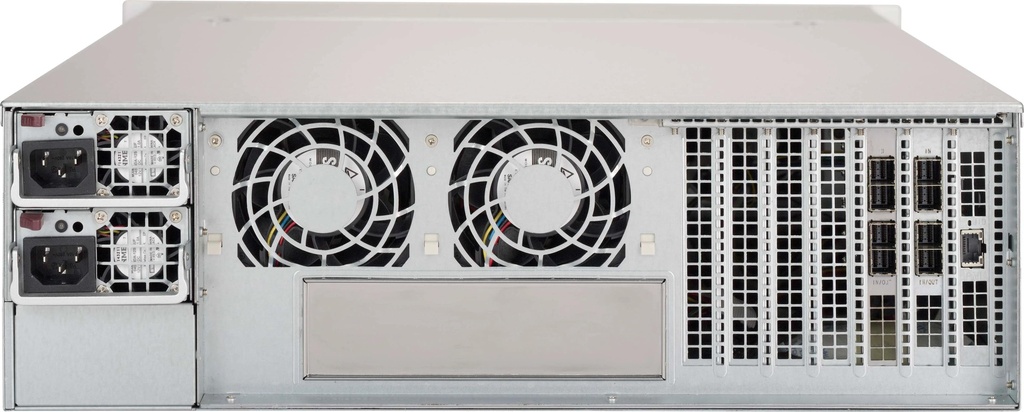

3U SC836B 16 DriveJBOD w/DualExpander,Redundant 600W PSW

CSE-836BE2C-R609JBOD
https://safeconsulting.no/web/image/product.template/12625/image_1920?unique=b20187c

kr 21,396.23 21396.23 NOK kr 21,396.23

kr 21,396.23

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    Ideal for cloud backup, data replication, or high-density archive storage. Features dual expander backplane, 16 x 3.5" hot-swappable HDD bays, and redundant 600W power supplies.

    Key Features

    • Cloud Backup, Data Replication, or High Density Archive Storage Applications3U Storage JBOD Chassis with capacity 16 x 3.5" hot-swappable HDDs bays
    • Dual Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
    • 8 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
    • 1x IPMI port for Remote System Power on/off and system monitoring
    • Support NTP for time synchronization & RTC battery backup
    • 600W (1+1) 94% efficient Platinum level power supplies
    • 5 hot-plug redundant cooling fans
    • Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications
    • Qualified SAS HBA / controller:AOC-SAS3-9500-8E- 12Gb/s 2-external ports SAS3 HBAAOC-SAS3-9500-16E- 12Gb/s 4-external ports SAS3 HBAAOC-SAS3-9580-8I8E- 12Gb/s 2-external ports SAS3 RAID Controller

    Key Applications

    • Cloud Backup
    • Data Replication
    • High-Density Archive Storage
    • Enterprise Data Centers
    • High-Performance Computing Clusters
    • Redundant Storage Solutions
    • Disaster Recovery
    • Big Data Analytics
    • Business Continuity
    • Remote System Monitoring

    Description

    This 3U storage JBOD chassis supports up to 16 x 3.5" hot-swappable HDD bays, dual expander backplane boards for SAS3/2 HDDs with a 12Gb/s throughput, and 94% efficient 600W redundant power supplies. It is designed for cloud backup, data replication, and high-density archive storage applications. Featuring 8 x Mini-SAS HD ports, IPMI port, and 5 hot-plug redundant cooling fans.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperChassis 836BE2C-R609JBOD
    Dimensions
    Height
    • 5.2" (132 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 25.5" (647 mm)
    Gross Weight
    • 75 lbs (34.02 kg)
    Net Weight
    • 36 lbs (16.33 kg)
    Packaging (W x H x L)
    • 26.6" (676 mm) x 13" (330 mm) x 39.9" (1013 mm)
    Available Color
    • Black
    Front Panel
    Button
    • Power On/Off button
    • System Reset button
    • Unit Identification (UID) button
    LED
    • 1 Network activity LEDs
    Systems Cooling
    Fans
    • 2x 8cm hot-swap exhaust fan(s) & air shroud
    • 3x 8cm hot-swap redundant PWM cooling fan(s)
    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)
    Power Supply
    • 600W / 650W 1U Redundant Power Supply
    Power Efficiency
    • 94%
    Total Output Power and Input
    • 650W with Input 200 - 240Vac
    • 600W with Input 100 - 127Vac
    • 650W with Input 200 - 240Vdc
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 336 x 76 x 40 mm
    Output Type
    • Backplanes (gold finger)
    +12V
    • Max: 54.16A / Min: 0A (200Vdc - 240Vdc)(for CCC only)
    • Max: 54.16A / Min: 0A (200Vac - 240Vac)
    • Max: 50A / Min: 0A (100Vac - 127Vac)
    +5Vsb
    • Max: 4A / Min: 0A
    Power Distributor
    • PDB-PT826-8824
    • O/P: 12V/135
    • +5V Max: 40A
    • +3.3V Max: 24A
    • -12V Max: 0.6A
    Certification
    • Platinum Certified
    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • CE/EMC
    • FCC

    Standard Part List

    Part Number Quantity Description
    Air Shroud
    MCP-310-39001-0N1SC835/836/936 Intel DP X9-X10 PC air shroud 1368x13/12x13MB
    Bracket
    MCP-120-84702-0N1CB3 mounting bracket for use on chassis with CB2 holes. Bracket to mount CB3 card on existing CB2 standoff on SC847/SC417/SC837/SC826/SC836/SC846 in JBOD configuration.,HF,RoHS/REACH,PBF
    MCP-120-84706-0N1FH PCI bracket for CBL-NTWK-0587 LAN extension cable,HF,RoHS/REACH,PBF
    Control Board
    CSE-PTJBOD-CB31JBOD chassis power control board with IPMI remote on/off feature
    Cable(s)
    CBL-0071L1ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
    CBL-0296L39" 4 PIN FAN PWS EXTENSION CORD, PBF
    CBL-CDAT-060114 Pin to 4 Pin I2C cable, 50cm, 26AWG,RoHS
    CBL-NTWK-05871INT RJ45M/RJ45F Adapter W/ PCB 50CM 24AWG for SC847D JBOD
    CBL-PWEX-10691PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,30CM,22AWG,5A/pin,RoHS
    CBL-PWEX-10784PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,20CM,22AWG,5A/PIN,RoHS
    CBL-SAST-05314Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s
    CBL-SAST-05324Internal Mini-SAS HD to Mini-SAS HD 50cm,30AWG,12Gb/s
    Part(s)
    MCP-290-83603-0N1SC836 HDD backplane bracket
    MCP-290-83605-0N1836B rear dummy cover for 2 X 2.5"; HDD cage
    MCP-230-82501-0N1Top cover for SC213,216,825,826,835,836,936,846
    MCP-120-00116-0N7Blank FH L-bracket with 4x4 vent holes
    MCP-290-00088-0N1SC119 Intrusion assembly
    MCP-290-83601-0V1 setSilver chassis handles (left and right) for SC836/835
    MCP-260-00011-0N1I/O shield without any opening
    CD-ROM & Accessory
    MCP-290-00007-011Black DVD dummy cover for SC825, 836
    Fan(s)
    FAN-0125L4280x32 mm 6.7K RPM SC836 Rear Exhaust Fan w/ Housing
    FAN-0126L4380x80x38 mm 7K RPM Chassis Middle Fan w/ Housing
    Front Panel
    FPB-FP836-D1Front control board Dual color LED(FP836-D)forSC823M,825,825
    Drive Tray(s)
    MCP-220-00007-011Black USB/COM port tray for SC825, 836
    MCP-220-00075-0B16Black gen 5.5 hot-swap 3.5" HDD tray
    Power Distributor
    PDB-PT826-88241PDB with longer 24pin for SC826B
    Power Supply & Accessory
    PWS-609P-1R221U, platinum efficiency, 600W/650W, AC input: 100-127/200-240Vac.
    Mounting Rail(s)
    MCP-410-00007-0N1Rail screw bag
    MCP-290-00053-0N1Rail set, quick/quick, default for 2,3U 17.2"W
    Rear Window
    MCP-240-83605-0N1836B chassis rear window (to support the optional MCP-220-83605-0N)

    Optional Part List

    Part Number Quantity Description
    Cable
    CBL-SAST-0677-3m external Mini SAS HD to external mini SAS HD.28AWG,RoHS/REACH
    CBL-SAST-0573-External mini SAS HD to external mini SAS HD cable 28AWG (1M)
    CBL-SAST-0690-1-MINI SAS HD,12G,EXT,2M,30AWG,RoHS
    Drive Trays
    MCP-220-00118-0B-Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH
