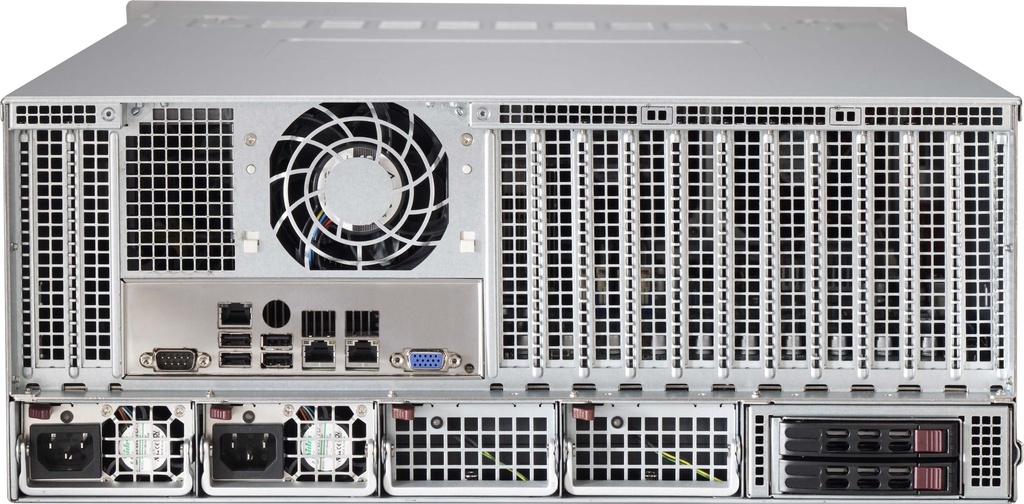

  2. Black 4U SC846X w/ Redundant 1200W PWS,RoHS/REACH,PBF

Black 4U SC846X w/ Redundant 1200W PWS,RoHS/REACH,PBF

CSE-846XA-R1K23B
https://safeconsulting.no/web/image/product.template/11931/image_1920?unique=68add06

kr 20,896.32 20896.32 NOK kr 20,896.32

kr 20,896.32

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro CSE-846XA-R1K23B is a 4U chassis designed for high-density storage and high availability. It features 24x 3.5" hot-swap SAS2/SATA3 drive bays, redundant 1200W Titanium level high-efficiency power supplies, and advanced cooling systems.

    Key Features

    • 100% cooling redundancy, 24x 3.5" Hot-swap SAS2/SATA3 Drive Bays w/ Direct Attached HDD backplane
    • Redundant 1200W Titanium Level high efficiency power supply & 5 hot-plug redundant cooling fans w/adjustable air shroud
    • Mini-i-Pass (SFF 8087) connectivity;
    • Support two 1000W BBP
    • Support up to 13 FH FL expansion slots
    • High Availability PS, Storage Capacity, and numerous I/O slots

    Key Applications

    • Enterprise storage solutions
    • High-density data centers
    • Scalable cloud infrastructure
    • Virtualized environments

    Description

    The Supermicro CSE-846XA-R1K23B is engineered for high-density storage solutions in enterprise environments. Its 4U chassis supports up to 24x 3.5" hot-swap SAS2/SATA3 drive bays with a direct-attached backplane. The system is powered by redundant 1200W Titanium level high-efficiency power supplies, ensuring minimal downtime and efficient power usage. The cooling system includes five hot-plug redundant cooling fans and an adjustable air shroud. With support for dual and single Intel® and AMD processors, and up to 13 FH FL expansion slots, it offers flexibility and high availability for various I/O needs.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperChassis 846XA-R1K23B
    Dimensions
    Height
    • 7" (178 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 29" (736 mm)
    Gross Weight
    • 118 lbs (53.52 kg)
    Net Weight
    • 86 lbs (39 kg)
    Packaging (W x H x L)
    • 28" (711 mm) x 18" (457 mm) x 42" (1067 mm)
    Available Color
    • Black
    Front Panel
    Button
    • Power On/Off button
    • System Reset button
    LED
    • Power status LED
    • HDD activity LED
    • Power Fail LED
    • 2 Network Activity LEDs
    • Fan Fail/System Over Heat LED
    Systems Cooling
    Fans
    • 4x 92x38mm Hot-Swap Cooling Fans
    • 1x 8cm hot-swap exhaust fan(s) & air shroud
    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)
    Power Supply
    • 1U 1200W/1000W Titanium Power Supply W/PM Bus W76xL336xH40mm
    Power Efficiency
    • 96%
    Total Output Power and Input
    • 1200W with Input 200 - 240Vac
    • 1000W with Input 100 - 127Vac
    • 1200W with Input 200 - 240Vdc
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 336 x 76 x 40 mm
    Output Type
    • Backplanes (gold finger)
    +12V
    • Max: 100A / Min: 0A (200Vdc - 240Vdc)
    • Max: 100A / Min: 0A (200Vac - 240Vac)
    • Max: 83A / Min: 0A (100Vac - 127Vac)
    +5Vsb
    • Max: 4A / Min: 0A
    Power Distributor
    • PDB-PT418-B6824
    • O/P: 12V/256
    • +5V Max: 50A
    • +3.3V Max: 30A
    • -12V Max: 0.6A
    Certification
    • Titanium Certified
    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • CE/EMC
    • FCC class A
    • UL/CB
    • UL/CUL

    Standard Part List

    Part Number Quantity Description
    Air Shroud
    MCP-310-84602-0N1Air shroud for SC846X (Optimized for X9DRX)
    HD Backplane
    BPN-SAS-846A124-port 4U SAS 6Gbps direct-attached backplane, support up to 24x 3.5-inch SAS2/SATA3 HDD/SSD
    Cable(s)
    CBL-0071L1ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
    CBL-0088L410.5" 4PIN FAN POWER CORD FOR 743X-645,PBF
    CBL-0174L214AWG USA POWER CORD 6FT PB FREE
    CBL-0216L14 TO 4 PIN FAN POWER CABLE, 210MM
    CBL-0217L116PIN CNTL PANEL CONVERTER CBL FOR SC826,PBF
    Part(s)
    MCP-220-84609-0N1846X rear tray for 2 hot swap HDD (MCP-220-82609-0N)
    MCP-230-84801-0N1Top cover for SC848,418,418G
    MCP-290-84603-0N1SC846 HDD Backplane Bracket
    MCP-290-84607-0V1Silver chassis handle set for SC846, 848
    MCP-290-00088-0N1SC119 Intrusion assembly
    Fan(s)
    FAN-0115L4492x92x38 mm, 7.5K RPM, PWM Fan for SC748 rev K
    FAN-0125L4180x32 mm 6.7K RPM SC836 Rear Exhaust Fan w/ Housing
    Front Panel
    MCP-280-82601-0N1Front control board adapter (TB826) for SC216,826,936,846
    Drive Tray(s)
    MCP-290-82607-0N1826B/216B rear dummy cover for 2 X 2.5" HDD cage,RoHS
    MCP-220-00075-0B24Black gen 5.5 hot-swap 3.5" HDD tray
    Power Distributor
    PDB-PT418-B68241Power Distributor Board for SC418 to support Battery and GPU option
    Power Supply & Accessory
    PWS-1K23A-1R2AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 336x76x40 mm,HF,RoHS/REACH
    CSE-PT0130L2SC745 Power Supply Dummy Cover (76mm wide, 700W/800W/900W)
    Mounting Rail(s)
    MCP-290-00057-0N1 setRail set, quick/quick, default for 4U 17.2" W
    MCP-290-00060-0N1Threaded rail adapter default for round hole rack
    Rear Window
    MCP-240-84603-0N1846X rear window

    Optional Part List

    Part Number Quantity Description
    Cable
    CBL-PWEX-0581-8 pin to two 6+2 pin 12V GPU power cable, 65 cm 16/20 AWG,HF,RoHS/REACH,PBF
    Fan Kit
    MCP-320-00046-0N-KIT-Rear fan kit (8.2K RPM fan) for SC747B, 835X, 836BH
    HDD Kit
    MCP-220-00044-0N-Dual 2.5" fixed HDD bracket for SC502, 503, 510, 512, 515U
    HDD Tray
    MCP-220-82616-0N-12G 2.5x2 Drive Kit w/ Status LED (216B/826B/417B/846X/847B
    Short Rail
    MCP-290-00058-0N-Short rail set, quick release, 19.6"~26.9" Extendable Length
