4U 846X Chassis w/ SAS3 Single Expander and 1200W PWS
CSE-846XE1C-R1K23B
Summary Description

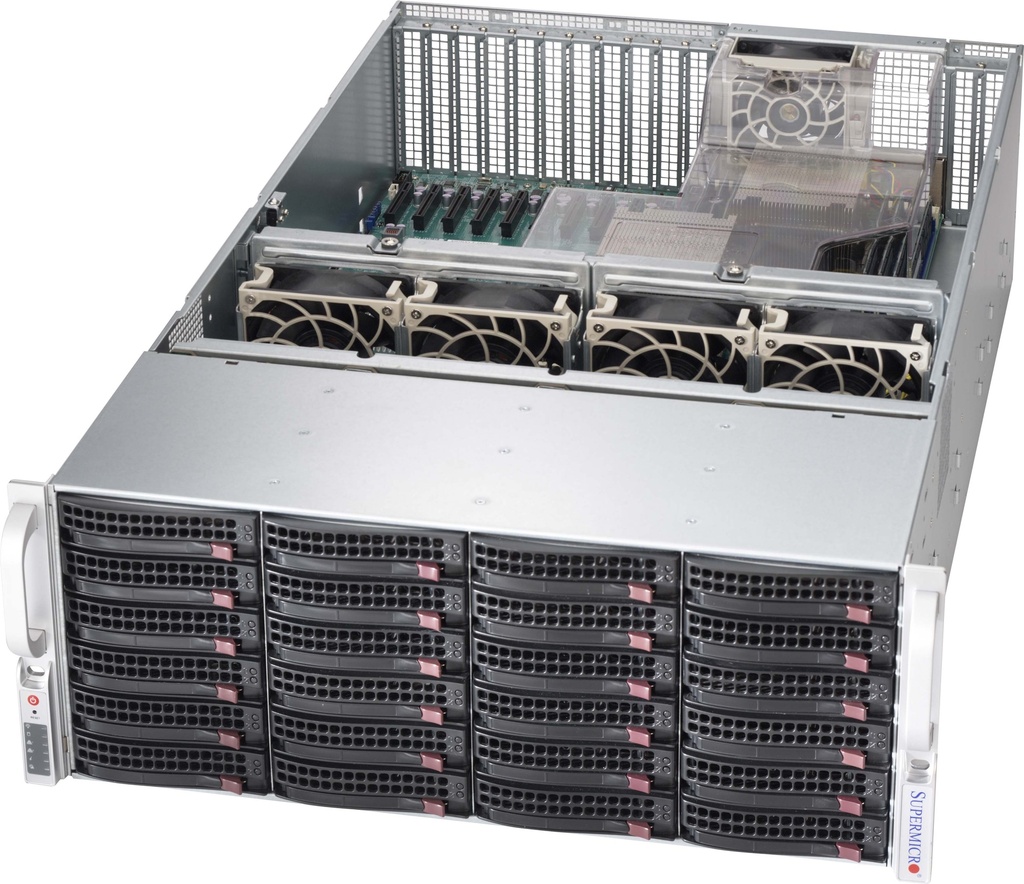

The SuperMicro 4U 846X Chassis offers superior cooling, vast storage capacity, and multiple expansion slots. Designed for high availability, it includes redundant 1200W power supplies and multiple I/O slots, making it perfect for enterprise-level storage needs.
Key Features
- 100% cooling redundancy, 24x 3.5" Hot-swap SAS2/SATA3 Drive Bays
- Redundant 1200W Titanium Level high efficiency power supply & 5 hot-plug redundant cooling fans w/adjustable air shroud
- Single SAS3 (12Gbps) expander backplane
- Mini SAS HD (SFF8643) connectivity;
- Support two 1000W BBP
- Support up to 13 FH FL expansion slots
- High Availability PS, Storage Capacity, and numerous I/O slots
Key Applications
- Enterprise Storage
- Data Centers
- Virtualization
- Cloud Computing
- High-performance Computing
- Big Data Analytics
- Content Delivery Networks
- Database Management
- Backup and Recovery
- Scientific Research
Description
The SuperMicro 4U 846X Chassis features 24x 3.5" hot-swap SAS2/SATA3 drive bays and a single SAS3 expander backplane, making it ideal for high-density storage solutions. It boasts 100% cooling redundancy, high-efficiency redundant power supplies, and support for up to 13 full-height, full-length expansion slots. This chassis ensures high availability with its robust power supply, extensive storage capacity, and multiple I/O slots. It's an optimal choice for enterprises requiring reliable and scalable storage solutions.
Product Specifications
Specification | Details |
---|---|
Product SKUs | |
SKUs |
|
Dimensions | |
Height |
|
Width |
|
Depth |
|
Gross Weight |
|
Net Weight |
|
Packaging (W x H x L) |
|
Available Color |
|
Front Panel | |
Button |
|
LED |
|
Systems Cooling | |
Fans |
|
Operating Environment (System) | |
Operating Temperature Range |
|
Non-Operating Temperature Range |
|
Operating Relative Humidity Range |
|
Non Operating Relative Humidity Range |
|
Power Supply | |
| |
Power Efficiency |
|
Total Output Power and Input |
|
AC Input Frequency |
|
Dimensions (L x W x H) |
|
Output Type |
|
+12V |
|
+5Vsb |
|
Power Distributor |
|
Certification |
|
Regulatory (Power Supply) | |
Power Supply Safety / EMC |
|
Standard Part List
Part Number | Quantity | Description |
---|---|---|
Air Shroud | ||
MCP-310-84602-0N | 1 | Air shroud for SC846X (Optimized for X9DRX) |
HD Backplane | ||
BPN-SAS3-846EL1 | 1 | SAS3 12G Single LSI SAS3 Expander, 24x 3.5" Drive, RoHS |
Cable(s) | ||
CBL-0071L | 1 | ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF |
CBL-0088L | 4 | 10.5" 4PIN FAN POWER CORD FOR 743X-645,PBF |
CBL-0174L | 2 | 14AWG USA POWER CORD 6FT PB FREE |
CBL-0216L | 1 | 4 TO 4 PIN FAN POWER CABLE, 210MM |
CBL-0217L | 1 | 16PIN CNTL PANEL CONVERTER CBL FOR SC826,PBF |
Part(s) | ||
MCP-220-84609-0N | 1 | 846X rear tray for 2 hot swap HDD (MCP-220-82609-0N) |
MCP-230-84801-0N | 1 | Top cover for SC848,418,418G |
MCP-290-84603-0N | 1 | SC846 HDD Backplane Bracket |
MCP-290-84607-0V | 1 | Silver chassis handle set for SC846, 848 |
MCP-290-00088-0N | 1 | SC119 Intrusion assembly |
Fan(s) | ||
FAN-0115L4 | 4 | 92x92x38 mm, 7.5K RPM, PWM Fan for SC748 rev K |
FAN-0125L4 | 1 | 80x32 mm 6.7K RPM SC836 Rear Exhaust Fan w/ Housing |
Front Panel | ||
MCP-280-82601-0N | 1 | Front control board adapter (TB826) for SC216,826,936,846 |
Drive Tray(s) | ||
MCP-290-82607-0N | 1 | 826B/216B rear dummy cover for 2 X 2.5" HDD cage,RoHS |
MCP-220-00075-0B | 24 | Black gen 5.5 hot-swap 3.5" HDD tray |
Power Distributor | ||
PDB-PT418-B6824 | 1 | Power Distributor Board for SC418 to support Battery and GPU option |
Power Supply & Accessory | ||
PWS-1K23A-1R | 2 | AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 336x76x40 mm,HF,RoHS/REACH |
CSE-PT0130L | 2 | SC745 Power Supply Dummy Cover (76mm wide, 700W/800W/900W) |
Mounting Rail(s) | ||
MCP-290-00057-0N | 1 set | Rail set, quick/quick, default for 4U 17.2" W |
MCP-290-00060-0N | 1 | Threaded rail adapter default for round hole rack |
Rear Window | ||
MCP-240-84603-0N | 1 | 846X rear window |
Optional Part List
Part Number | Quantity | Description |
---|---|---|
Cable | ||
CBL-PWEX-0581 | - | 8 pin to two 6+2 pin 12V GPU power cable, 65 cm 16/20 AWG,HF,RoHS/REACH,PBF |
Fan Kit | ||
MCP-320-00046-0N-KIT | - | Rear fan kit (8.2K RPM fan) for SC747B, 835X, 836BH |
HDD Kit | ||
MCP-220-00044-0N | - | Dual 2.5" fixed HDD bracket for SC502, 503, 510, 512, 515U |
HDD Tray | ||
MCP-220-82616-0N | - | 12G 2.5x2 Drive Kit w/ Status LED (216B/826B/417B/846X/847B |
Short Rail | ||
MCP-290-00058-0N | - | Short rail set, quick release, 19.6"~26.9" Extendable Length |
