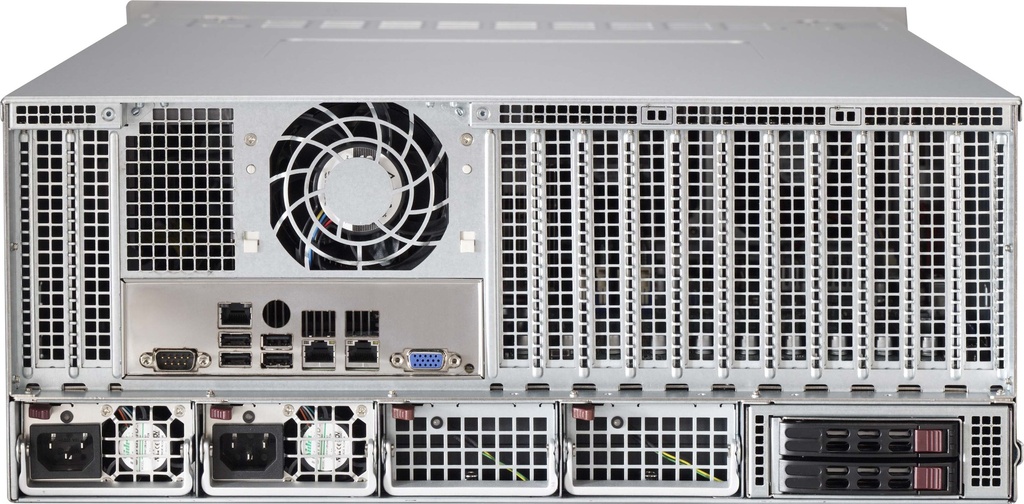

  2. 4U 846X Chassis w/ SAS3 Dual Expander and 1200W PWS

4U 846X Chassis w/ SAS3 Dual Expander and 1200W PWS

CSE-846XE2C-R1K23B
https://safeconsulting.no/web/image/product.template/11932/image_1920?unique=68add06

kr 25,120.58 25120.58 NOK kr 25,120.58

kr 25,120.58

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    Supermicro CSE-846XE2C-R1K23B is a 4U chassis featuring 24x 3.5" SAS3 Hot-swap Drive Bays, dual SAS3 (12Gbps) expander backplanes, and a 1200W Titanium Level power supply. It supports various Intel and AMD processors and up to 13 FH FL expansion slots.

    Key Features

    • 100% cooling redundancy, 24x 3.5" Hot-swap SAS3 Drive Bays
    • Redundant 1200W Titanium Level high efficiency power supply & 5 hot-plug redundant cooling fans w/adjustable air shroud
    • Dual SAS3 (12Gbps) expander backplane
    • Mini SAS HD (SFF 8643) connectivity;
    • Support up to 13 FH FL expansion slots
    • High Availability PS, Storage Capacity, and numerous I/O slots

    Key Applications

    • Enterprise storage solutions
    • Data center deployments
    • High-performance computing

    Description

    The Supermicro CSE-846XE2C-R1K23B 4U chassis offers optimized storage and cooling solutions. Equipped with 24x 3.5" Hot-swap SAS/SATA drive bays, dual-expander backplanes, and a 1200W redundant power supply, it ensures reliability and efficiency. The chassis supports up to 13 full-height, full-length (FH FL) expansion slots and is compatible with both Intel and AMD processors. Cooling redundancy is achieved through five hot-plug cooling fans and adjustable air shrouds, maintaining optimal temperatures even under heavy loads. Additional features include comprehensive system monitoring and various peripheral drive options for flexible configurations.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperChassis 846XE2C-R1K23B
    Dimensions
    Height
    • 7" (178 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 29" (736 mm)
    Gross Weight
    • 118 lbs (53.52 kg)
    Net Weight
    • 86 lbs (39 kg)
    Packaging (W x H x L)
    • 28" (711 mm) x 18" (457 mm) x 42" (1067 mm)
    Available Color
    • Black
    Front Panel
    Button
    • Power On/Off button
    • System Reset button
    LED
    • Power status LED
    • HDD activity LED
    • Power Fail LED
    • 2 Network Activity LEDs
    • Fan Fail/System Over Heat LED
    Systems Cooling
    Fans
    • 1x 8cm hot-swap exhaust fan(s) & air shroud
    • 4x 92x38mm Hot-Swap Cooling Fans
    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 60°C (-40°F - 140°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)
    Power Supply
    • 1U 1200W/1000W Titanium Power Supply W/PM Bus W76xL336xH40mm
    Power Efficiency
    • 96%
    Total Output Power and Input
    • 1200W with Input 200 - 240Vac
    • 1000W with Input 100 - 127Vac
    • 1200W with Input 200 - 240Vdc
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 336 x 76 x 40 mm
    Output Type
    • Backplanes (gold finger)
    +12V
    • Max: 100A / Min: 0A (200Vdc - 240Vdc)
    • Max: 100A / Min: 0A (200Vac - 240Vac)
    • Max: 83A / Min: 0A (100Vac - 127Vac)
    +5Vsb
    • Max: 4A / Min: 0A
    Power Distributor
    • PDB-PT418-B6824
    • O/P: 12V/256
    • +5V Max: 50A
    • +3.3V Max: 30A
    • -12V Max: 0.6A
    Certification
    • Titanium Certified
    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • CE/EMC
    • FCC class A
    • UL/CB
    • UL/CUL

    Standard Part List

    Part Number Quantity Description
    Air Shroud
    MCP-310-84602-0N1Air shroud for SC846X (Optimized for X9DRX)
    HD Backplane
    BPN-SAS3-846EL2124-port 4U SAS3 12Gbps dual-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature)
    Cable(s)
    CBL-0071L1ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
    CBL-0088L410.5" 4PIN FAN POWER CORD FOR 743X-645,PBF
    CBL-0174L214AWG USA POWER CORD 6FT PB FREE
    CBL-0216L14 TO 4 PIN FAN POWER CABLE, 210MM
    CBL-0217L116PIN CNTL PANEL CONVERTER CBL FOR SC826,PBF
    Part(s)
    MCP-220-84609-0N1846X rear tray for 2 hot swap HDD (MCP-220-82609-0N)
    MCP-230-84801-0N1Top cover for SC848,418,418G
    MCP-290-84603-0N1SC846 HDD Backplane Bracket
    MCP-290-84607-0V1Silver chassis handle set for SC846, 848
    MCP-290-00088-0N1SC119 Intrusion assembly
    Fan(s)
    FAN-0115L4492x92x38 mm, 7.5K RPM, PWM Fan for SC748 rev K
    FAN-0125L4180x32 mm 6.7K RPM SC836 Rear Exhaust Fan w/ Housing
    Front Panel
    MCP-280-82601-0N1Front control board adapter (TB826) for SC216,826,936,846
    Drive Tray(s)
    MCP-290-82607-0N1826B/216B rear dummy cover for 2 X 2.5" HDD cage,RoHS
    MCP-220-00075-0B24Black gen 5.5 hot-swap 3.5" HDD tray
    Power Distributor
    PDB-PT418-B68241Power Distributor Board for SC418 to support Battery and GPU option
    Power Supply & Accessory
    PWS-1K23A-1R2AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 336x76x40 mm,HF,RoHS/REACH
    CSE-PT0130L2SC745 Power Supply Dummy Cover (76mm wide, 700W/800W/900W)
    Mounting Rail(s)
    MCP-290-00057-0N1 setRail set, quick/quick, default for 4U 17.2" W
    MCP-290-00060-0N1Threaded rail adapter default for round hole rack
    Rear Window
    MCP-240-84603-0N1846X rear window

    Optional Part List

    Part Number Quantity Description
    Component
    N/A--
    Cable
    CBL-PWEX-0581-8 pin to two 6+2 pin 12V GPU power cable, 65 cm 16/20 AWG,HF,RoHS/REACH,PBF
    Fan Kit
    MCP-320-00046-0N-KIT-Rear fan kit (8.2K RPM fan) for SC747B, 835X, 836BH
    HDD Kit
    MCP-220-00044-0N-Dual 2.5" fixed HDD bracket for SC502, 503, 510, 512, 515U
    HDD Tray
    MCP-220-82616-0N-12G 2.5x2 Drive Kit w/ Status LED (216B/826B/417B/846X/847B
    Short Rail
    MCP-290-00058-0N-Short rail set, quick release, 19.6"~26.9" Extendable Length
