  2. 4U SC847B LP Chassis W/SAS3 Single Expander & 1280W PWS

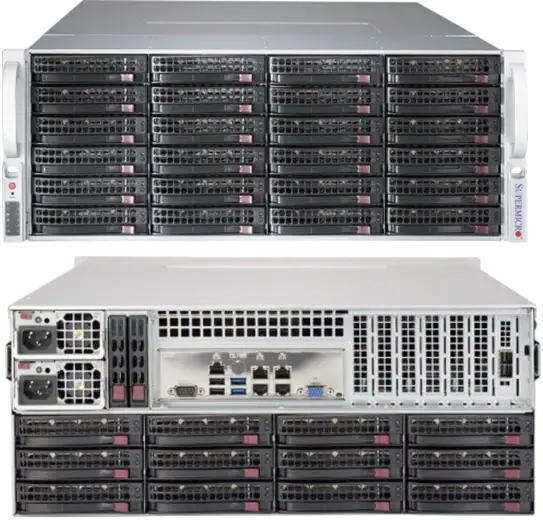

4U SC847B LP Chassis W/SAS3 Single Expander & 1280W PWS

CSE-847BE1C-R1K28LPB
https://safeconsulting.no/web/image/product.template/12644/image_1920?unique=a4c5cb8

kr 25,520.51 25520.510000000002 NOK kr 25,520.51

kr 25,520.51

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The 4U SC847B LP Chassis offers versatile motherboard support and high-density storage with 36 x 3.5" hot-swap SAS/SATA bays. It includes a 1280W redundant power supply and comprehensive cooling solutions.

    Key Features

    • 4U Chassis for motherboard support size: (12" x 10") (13.68" x 13") (9.6" x 9.6")
    • 36 x 3.5" hot-swap SAS/SATA drive bay with SES3, optional 2 x 2.5" hot-swap drive bay
    • 12-port 2U SAS3 12Gbps single-expander backplane, support up to 12x 3.5-inch SAS3/SATA3 HDD/SSD
    • 24-port 4U SAS3 12Gbps single-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD
    • 1U 1280W Redundant Platinum 95%+ Super Quiet Power Supply with PMbus
    • 7 low-profile expansion slot(s)
    • 7 x 8cm (7000 RPM) hot-swap PWM cooling fan(s)

    Key Applications

    • Data Center
    • High-Density Storage
    • Enterprise IT
    • Server Farms
    • Virtualization
    • Backup and Recovery

    Description

    The 4U SC847B LP Chassis is designed for high-density storage solutions, supporting a variety of motherboard sizes. It features 36 x 3.5" hot-swap SAS/SATA drive bays, an optional 2 x 2.5" drive bay, and a 1280W redundant power supply. The chassis ensures superior cooling with 7 x 8cm hot-swap PWM cooling fans and includes a single SAS3 expander backplane.

    Product Specifications

    Specification Details
    Product SKUs- Discontinued SKU. Please contact sales-rep for possible OEM production quantities. MOQ may apply
    CSE-847BE1C-R1K28LPB
    • SuperChassis 847BE1C-R1K28LPB
    Dimensions
    Height
    • 7" (178 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 27.5" (699 mm)
    Gross Weight
    • 91 lbs (41.28 kg)
    Packaging (W x H x L)
    • 27.2" (691 mm) x 17.4" (442 mm) x 39.6" (1006 mm)
    Available Color
    • Black
    Front Panel
    Buttons
    • Power On/Off button
    • System Reset Button
    LEDs
    • 2 Network Activity LEDs
    • Fan Fail/System Over Heat LED
    • HDD activity LED
    • Power Status LED
    • Unit Identification (UID) LED
    Systems Cooling
    Fans
    • 7 x 8cm (7000 RPM) hot-swap PWM cooling fan(s)
    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non-Operating Relative Humidity Range
    • 5% - 95% (non-condensing)
    Power Supply
    • 1U 1280W Redundant Platinum 95%+ Super Quiet Power Supply with PM Bus
    Power Efficiency
    • 95%
    Total Output Power and Input
    • 1000W with Input 100 - 140Vac
    • 1280W with Input 180 - 240Vac
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 336 x 76 x 40 mm
    Output Type
    • Backplanes (gold finger)
    -12V
    • Max: NAA
    +12V
    • Max: 83A / Min: 0.5A (100Vac - 140Vac)
    • Max: 106.7A / Min: 0.5A (180Vac - 240Vac)
    +5Vsb
    • Max: 4A / Min: 0A
    +12Vsb
    • Max: NAA
    Power Distributor
    • PDB-PT847-8824
    • O/P: 12V/135
    • +5V Max: 100
    • +3.3V Max: 30
    • -12V Max: 0.6
    Certification
    • Platinum Certified
    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • CE/EMC
    • FCC class B
    • TUV/CB
    • UL/CUL
