4U SC847B LP CSE SAS3 Single Expander, 10K Fan 1200W PWS

CSE-847BE1C4-R1K23LPB
https://safeconsulting.no/web/image/product.template/12640/image_1920?unique=8d6572e

kr 26,157.82 26157.82 NOK kr 26,157.82

kr 26,157.82

Not Available For Sale

    This combination does not exist.

    Summary Description

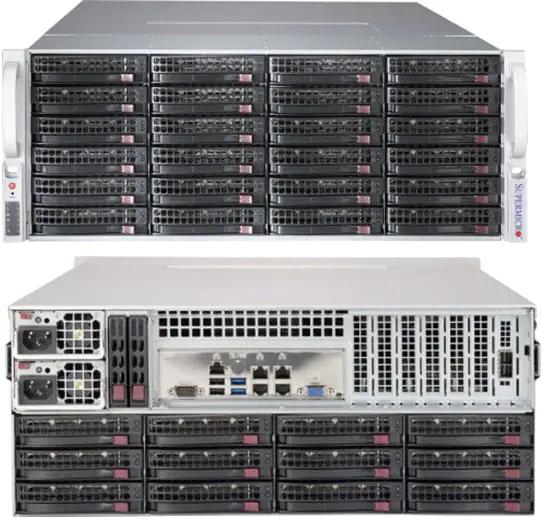

    The SuperChassis 847BE1C4-R1K23LPB is a 4U rackmount chassis featuring 36 x 3.5" hot-swap bays, dual 2.5" hot-swap drive bays, and a 1200W Titanium power supply. Designed for compatibility with various motherboard sizes, it also includes seven high-performance fans for efficient cooling.

    Key Features

    • 4U Chassis for motherboard support size: (12" x 10") (13.68" x 13") (9.6" x 9.6")
    • 36 x 3.5" hot-swap SAS/SATA drive bay with SES3, optional 2 x 2.5" hot-swap drive bay
    • 12-Port 2U Backplane with Expander support up to 8 x 3.5" SAS3/SATA3 HDD/SDD and 4 x SAS3/SATA3/NVMe Storage Devices,HF,RoHS/REACH24-port 4U SAS3 12Gbps single-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD
    • 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
    • 7 low-profile expansion slot(s)
    • 7 x 80mm high-performance fan(s)

    Key Applications

    • Enterprise servers
    • Data centers
    • Cloud computing
    • Virtualization
    • Database management
    • High-performance computing
    • Network storage
    • Big data analytics
    • Content delivery networks
    • Disaster recovery

    Description

    The SuperChassis 847BE1C4-R1K23LPB offers a robust 4U chassis, compatible with various motherboard sizes. It features 36 x 3.5" hot-swap SAS/SATA bays, dual 2.5" hot-swap drive bays, and a highly efficient 1200W Titanium power supply. Cooling is managed by seven 80mm high-performance fans. The chassis supports multiple expansion slots for enhanced functionality.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperChassis 847BE1C4-R1K23LPB
    Dimensions
    Height
    • 7" (178 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 27.5" (699 mm)
    Gross Weight
    • 118 lbs (53.52 kg)
    Net Weight
    • 86 lbs (39 kg)
    Packaging (W x H x L)
    • 27.2" (691 mm) x 17.4" (442 mm) x 39.6" (1006 mm)
    Available Color
    • Black
    Front Panel
    Button
    • Power On/Off button
    • System Reset button
    LED
    • Power status LED
    • HDD activity LED
    • 2 Network Activity LEDs
    • Unit Identification (UID) LED
    • Fan Fail/System Over Heat LED
    Systems Cooling
    Fans
    • 7x 80mm high-performance fan(s)
    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)
    Power Supply
    • 1U 1200W/1000W Titanium Power Supply W/PM Bus W76xL336xH40mm
    Power Efficiency
    • 96%
    Total Output Power and Input
    • 1200W with Input 200 - 240Vac
    • 1000W with Input 100 - 127Vac
    • 1200W with Input 200 - 240Vdc
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 336 x 76 x 40 mm
    Output Type
    • Backplanes (gold finger)
    +12V
    • Max: 100A / Min: 0A (200Vdc - 240Vdc)
    • Max: 100A / Min: 0A (200Vac - 240Vac)
    • Max: 83A / Min: 0A (100Vac - 127Vac)
    +5Vsb
    • Max: 4A / Min: 0A
    Power Distributor
    • PDB-PT847-8824
    • O/P: 12V/135
    • +5V Max: 100A
    • +3.3V Max: 30A
    • -12V Max: 0.6A
    Certification
    • Titanium Certified
    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • CE/EMC
    • FCC class A
    • UL/CB
    • UL/CUL

    Standard Part List

    Part Number Quantity Description
    HD Backplane
    BPN-SAS3-826EL1-N4112-Port 2U BPN with EXP up to 8x3.5" SAS3 HDD& 4xNVMe
    BPN-SAS3-846EL11SAS3 12G Single LSI SAS3 Expander, 24x 3.5" Drive, RoHS
    Power Distributor
    PDB-PT847-8824124pin standard output with 5V high current 100Amp power distributor board for SC847
    Power Supply & Accessory
    PWS-1K23A-1R2AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 336x76x40 mm,HF,RoHS/REACH

    Optional Part List

    Part Number Quantity Description
    Cable
    CBL-SAST-0532-Internal Mini-SAS HD to Mini-SAS HD 50cm,30AWG,12Gb/s,HF,RoHS/REACH,PBF
    CBL-SAST-0531-01-Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s [FCI],RoHS/REACH
    Front Bezel
    MCP-210-84601-0B-Black Front Bezel For SC846 Chassis
    HDD Kit
    MCP-220-82616-0N-12G 2.5x2 Drive Kit w/ Status LED (216B/826B/417B/846X/847B
    MCP-220-84701-0N-SC847 internal drive tray for one 3.5
    MCP-220-82619-0N-2.5x2 NVMe Drive Kit for 216B/826B/417B/846X/847B,RoHS
    HDD Tray Converter
    MCP-220-00118-0B-Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH
    MCP-220-00138-0B-Black gen-5.5 tool-less NVMe 3.5-to-2.5 drive tray, Orange tab
    Rail
    MCP-290-00058-0N-Short rail set, quick release, 19.6"~26.9" Extendable Length
    MCP-290-00061-0N-Non-threaded rail adapter optional for round thread rack
