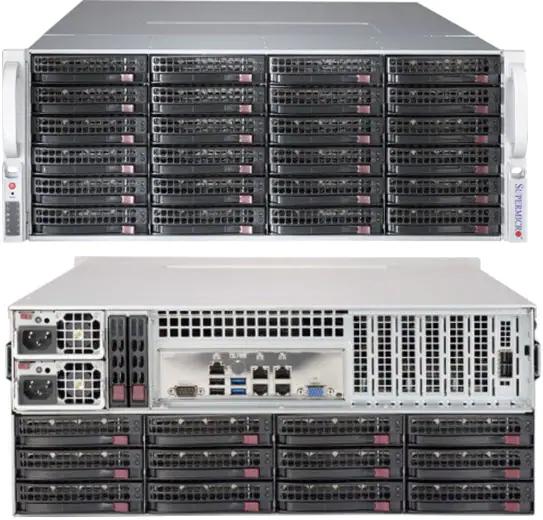

4U SC847B LP Chassis SAS3 dual expander,10K fan 1200W PWS

CSE-847BE2C-R1K23LPB
https://safeconsulting.no/web/image/product.template/12646/image_1920?unique=a6ebd58

kr 33,330.38 33330.38 NOK kr 33,330.38 VAT Excluded

kr 33,330.38 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Summary Description

    Durable 4U chassis with support for high-performance motherboards, featuring SAS3 dual expander, multiple hot-swap drive bays, and a robust 1200W power supply.

    Key Features

    • 4U Chassis for motherboard support size: (12" x 10") (13.68" x 13") (9.6" x 9.6")
    • 36 x 3.5" hot-swap SAS/SATA drive bay with SES3, optional 2 x 2.5" hot-swap drive bay
    • 12-port 2U SAS3 12Gbps dual-expander backplane, support up to 12x 3.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature)24-port 4U SAS3 12Gbps dual-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature)
    • 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
    • 7 low-profile expansion slot(s)
    • 7 x 80mm high-performance fan(s)

    Key Applications

    • Data Centers
    • Enterprise Storage Solutions
    • High-Performance Computing
    • Virtualization
    • Cloud Infrastructure
    • Backup and Recovery Systems
    • Big Data Analytics
    • Database Management
    • Network Attached Storage (NAS)
    • Server Farms

    Description

    The 4U SC847B Low Profile Chassis offers top-tier performance and expandability with a SAS3 dual expander backplane. It supports a variety of motherboard sizes and includes 36 hot-swap 3.5" drive bays. The chassis features a 1200W Titanium power supply and multiple cooling fans for optimal performance in demanding environments.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperChassis 847BE2C-R1K23LPB
    Dimensions
    Height
    • 7" (178 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 27.5" (699 mm)
    Gross Weight
    • 118 lbs (53.52 kg)
    Net Weight
    • 86 lbs (39 kg)
    Packaging (W x H x L)
    • 27.2" (691 mm) x 17.4" (442 mm) x 39.6" (1006 mm)
    Available Color
    • Black
    Front Panel
    Button
    • Power On/Off button
    • System Reset button
    LED
    • Power status LED
    • HDD activity LED
    • 2 Network Activity LEDs
    • Unit Identification (UID) LED
    • Fan Fail/System Over Heat LED
    Systems Cooling
    Fans
    • 7x 80mm high-performance fan(s)
    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)
    Power Supply
    • 1U 1200W/1000W Titanium Power Supply W/PM Bus W76xL336xH40mm
    Power Efficiency
    • 96%
    Total Output Power and Input
    • 1200W with Input 200 - 240Vac
    • 1000W with Input 100 - 127Vac
    • 1200W with Input 200 - 240Vdc
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 336 x 76 x 40 mm
    Output Type
    • Backplanes (gold finger)
    +12V
    • Max: 100A / Min: 0A (200Vdc - 240Vdc)
    • Max: 100A / Min: 0A (200Vac - 240Vac)
    • Max: 83A / Min: 0A (100Vac - 127Vac)
    +5Vsb
    • Max: 4A / Min: 0A
    Power Distributor
    • PDB-PT847-8824
    • O/P: 12V/135
    • +5V Max: 100A
    • +3.3V Max: 30A
    • -12V Max: 0.6A
    Certification
    • Titanium Certified
    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • CE/EMC
    • FCC class A
    • UL/CB
    • UL/CUL

    Standard Part List

    Part Number Quantity Description
    HD Backplane
    BPN-SAS3-826EL21SAS 12G dual-expander BPN, 2x LSISAS3x28, 12x 3.5" drive
    BPN-SAS3-846EL21SAS3 12G double LSI expander backplane, 4U 24x 3.5"HDD, RoHS
    Power Distributor
    PDB-PT847-8824124pin standard output with 5V high current 100Amp power distributor board for SC847
    Power Supply & Accessory
    PWS-1K23A-1R2AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 336x76x40 mm,HF,RoHS/REACH

    Optional Part List

    Part Number Quantity Description
    Cable
    CBL-SAST-0532-Internal Mini-SAS HD to Mini-SAS HD 50cm,30AWG,12Gb/s,HF,RoHS/REACH,PBF
    CBL-SAST-0531-01-Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s [FCI],RoHS/REACH
    Drive Trays
    MCP-220-00118-0B-Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH
    MCP-220-84701-0N-SC847 internal drive tray for one 3.5
    Front Bezel
    MCP-210-84601-0B-Black Front Bezel For SC846 Chassis
    HDD Kit
    MCP-220-82616-0N-12G 2.5x2 Drive Kit w/ Status LED (216B/826B/417B/846X/847B
    Rail
    MCP-290-00058-0N-Short rail set, quick release, 19.6"~26.9" Extendable Length
    MCP-290-00061-0N-Non-threaded rail adapter optional for round thread rack
