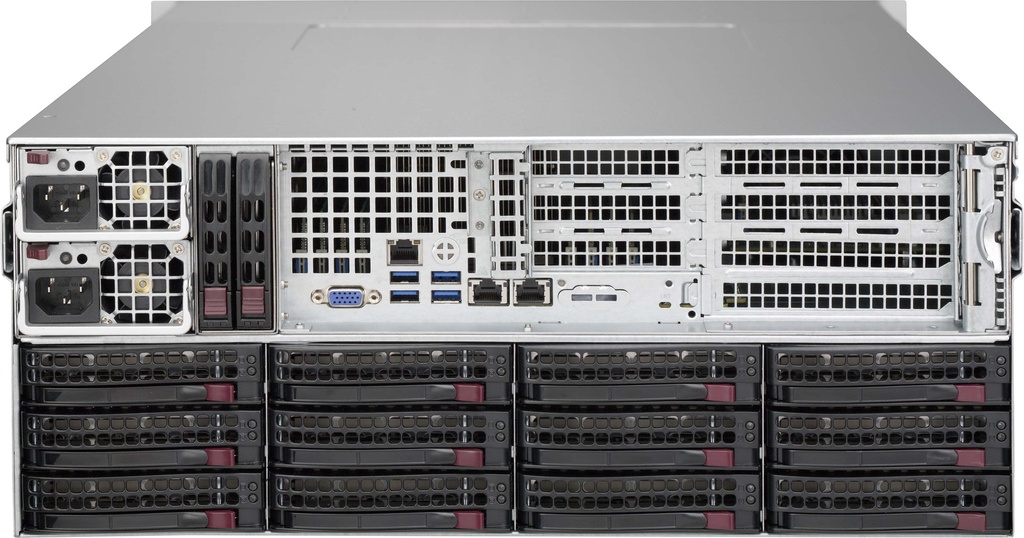

4U SC847B WIO Chassis w/ SAS3 dual expander and1200W PWS

CSE-847BE2C-R1K23WB
https://safeconsulting.no/web/image/product.template/12647/image_1920?unique=4175d88

kr 31,657.16 31657.16 NOK kr 31,657.16

kr 31,657.16

Not Available For Sale

    This combination does not exist.

    Summary Description

    The SuperChassis 4U SC847B is a versatile WIO chassis featuring a SAS3 dual expander backplane and a 1200W redundant titanium power supply, designed for high-performance enterprise applications.

    Key Features

    • 4U chassis support for SMCI Proprietary WIO motherboards; max. motherboard size - 12" x 13", 13" x 13.68"* Support up to 12"x13" MB with rear 2.5" HDD option installed
    • 36 x 3.5" hot-swap drive bay, optional 2 x 2.5" hot-swap drive bay
    • 12-port 2U SAS3 12Gbps dual-expander backplane, support up to 12x 3.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature)24-port 4U SAS3 12Gbps dual-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature)
    • 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
    • WIO Slots (4x Full-height, Full-length + 3x Low-profile)
    • 7 x 8cm (7000 RPM) hot-swap PWM cooling fan(s)

    Key Applications

    • Enterprise Storage
    • High-Performance Computing
    • Data Center
    • Server Farm
    • Virtualization
    • Cloud Computing
    • Database Management
    • Big Data
    • High-Capacity Storage
    • Network Attached Storage (NAS)

    Description

    The SuperChassis 4U SC847B WIO chassis is designed for high-capacity storage and maximum performance in enterprise environments. It supports proprietary WIO motherboards and up to 36 hot-swap 3.5" HDDs, with optional SAS3 dual expander backplane. The chassis includes seven 80mm hot-swap fans for efficient cooling and a 1200W titanium power supply for reliable operation.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperChassis 847BE2C-R1K23WB
    Dimensions
    Height
    • 7" (178 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 27.5" (699 mm)
    Gross Weight
    • 118 lbs (53.52 kg)
    Net Weight
    • 86 lbs (39 kg)
    Packaging (W x H x L)
    • 27.2" (691 mm) x 17.4" (442 mm) x 39.6" (1006 mm)
    Available Color
    • Black
    Front Panel
    Button
    • Power On/Off button
    • System Reset button
    LED
    • Power status LED
    • HDD activity LED
    • 2 Network Activity LEDs
    • Unit Identification (UID) LED
    • Fan Fail/System Over Heat LED
    Systems Cooling
    Fans
    • 7x 8cm (7000 RPM) hot-swap PWM cooling fan(s)
    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)
    Power Supply
    • 1U 1200W/1000W Titanium Power Supply W/PM Bus W76xL336xH40mm
    Power Efficiency
    • 96%
    Total Output Power and Input
    • 1200W with Input 200 - 240Vac
    • 1000W with Input 100 - 127Vac
    • 1200W with Input 200 - 240Vdc
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 336 x 76 x 40 mm
    Output Type
    • Backplanes (gold finger)
    +12V
    • Max: 100A / Min: 0A (200Vdc - 240Vdc)
    • Max: 100A / Min: 0A (200Vac - 240Vac)
    • Max: 83A / Min: 0A (100Vac - 127Vac)
    +5Vsb
    • Max: 4A / Min: 0A
    Power Distributor
    • PDB-PT847-8824
    • O/P: 12V/135
    • +5V Max: 100A
    • +3.3V Max: 30A
    • -12V Max: 0.6A
    Certification
    • Titanium Certified
    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • CE/EMC
    • FCC class A
    • UL/CB
    • UL/CUL

    Standard Part List

    Part Number Quantity Description
    Air Shroud
    MCP-310-49004-0N1SC847/417 DP X9 universal PC air shroud 1368x13/12x13MB
    HD Backplane
    BPN-SAS3-826EL21SAS 12G dual-expander BPN, 2x LSISAS3x28, 12x 3.5" drive
    BPN-SAS3-846EL21SAS3 12G double LSI expander backplane, 4U 24x 3.5"HDD, RoHS
    Cable(s)
    CBL-0071L1ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
    CBL-0160L2US POWER CORD 16AWG, PB FREE
    CBL-0217L116PIN CNTL PANEL CONVERTER CBL FOR SC826,PBF
    Part(s)
    MCP-230-84705-0N1Top cover for SC847 847B series
    MCP-290-00095-0N14U Chassis Intrusion Assembly 80cm
    MCP-290-82606-0N1SC826 HDD Backplane Bracket
    MCP-290-84603-0N1SC846 HDD Backplane Bracket
    MCP-290-84607-0V1Silver chassis handle set for SC846, 848
    Fan(s)
    FAN-0126L4780x80x38 mm 7K RPM Chassis Middle Fan w/ Housing
    FAN-0204L4780x80x38 mm, 7K RPM, Middle Cooling Fan w/ New Plastic Mater
    Front Panel
    MCP-280-82601-0N1Front control board adapter (TB826) for SC216,826,936,846
    Drive Tray(s)
    MCP-220-00075-0B36Black gen 5.5 hot-swap 3.5" HDD tray
    MCP-220-84709-ASM1SC847B WIO MB Tray assembly,HF,RoHS/REACH
    Power Distributor
    PDB-PT847-8824124pin standard output with 5V high current 100Amp power distributor board for SC847
    Power Supply & Accessory
    PWS-1K23A-1R2AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 336x76x40 mm,HF,RoHS/REACH
    Mounting Rail(s)
    MCP-290-00057-0N1 setRail set, quick/quick, default for 4U 17.2" W
    MCP-410-00007-0N1Rail screw bag

    Optional Part List

    Part Number Quantity Description
    Cable
    CBL-SAST-0531-Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s, HF,RoHS/REACH,PBF
    CBL-SAST-0532-Internal Mini-SAS HD to Mini-SAS HD 50cm,30AWG,12Gb/s
    Drive Trays
    MCP-220-84701-0N-Internal drive bay for one 3.5" HDD or two 2.5" HDD
    Front Bezel
    MCP-210-84601-0B-Front Bezel Cover, Black with Key Lock
    Hard Drive Carrier
    MCP-220-00116-0B-Black gen-5 3.5-to-2.5 NVMe drive tray, Orange tab (for hotswap NVMe drive),RoHS/REACH
    HDD Kit
    MCP-220-82616-0N-12G 2.5x2 Drive Kit w/ Status LED (216B/826B/417B/846X/847B
    MCP-220-82609-0N-Rear 2.5 x 2 Hot swap HDD kit for 216B/826B/417B/846X/847B
    HDD Tray Converter
    MCP-220-00043-0N-3.5" convert to 2.5" hot-swap HDD Tray
    Mounting Rail
    MCP-290-00058-0N-19" to 26.6" rail set, Quick Release, Tool-less
    Rail
    MCP-290-00061-0N-Non-threaded rail adapter optional for round thread rack
