  2. 4U SC847JBODw/SAS3 Single Expander w/1200W Redundant PWS

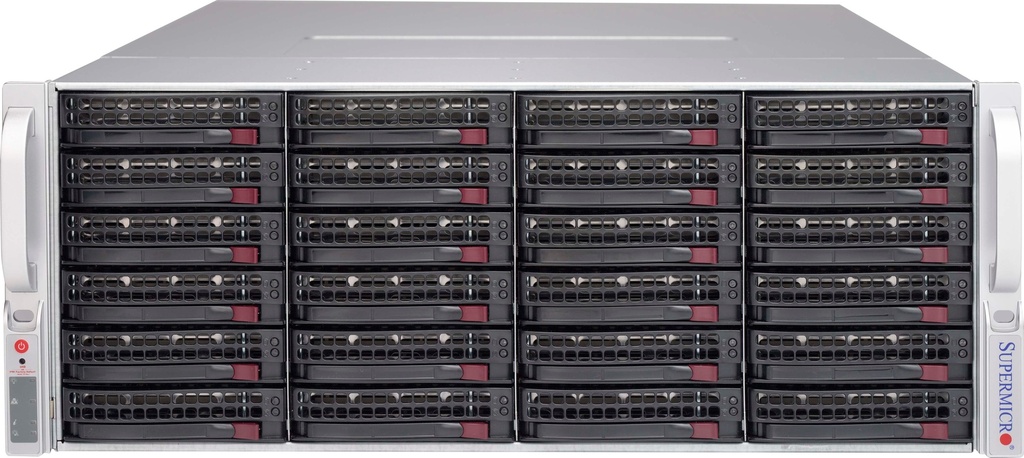

4U SC847JBODw/SAS3 Single Expander w/1200W Redundant PWS

SKU: CSE-847E1C-R1K23JBOD
Brand: Supermicro
https://safeconsulting.no/web/image/product.template/12648/image_1920?unique=90f4ca4

kr 31,803.41 31803.41 NOK kr 31,803.41 VAT Excluded

kr 31,803.41 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro 4U SC847JBOD is equipped with 44 hot-swap drive bays, supporting SAS3/SATA3 drives with 12Gbps throughput. It includes redundant 1200W Titanium-Level power supplies and a JBOD power control board with IPMI for remote management, making it perfect for high-capacity storage solutions.

    Key Features

    • 44x (24 front + 20 rear) 3.5" hot-swap SAS/SATA drive bays supporting SAS3/2 or SATA3 HDDs with 12Gbps throughput
    • Redundant 1200W Titaninum Level (1+1) power supplies with PMBus
    • 7x 8cm (middle) hot-swap redundant cooling fans
    • SAS3 (12Gbps) backplane with single expander supports SAS3/SATA3 drives for capacity expansion
    • JBOD Power Control Board with IPMI for remote monitor and power on-off
    • 4x External mini SAS HD (SFF 8644) connectivity and IPMI RJ45 port
    • Palletized packaging for easy shipping and handling
    • Qualified SAS HBA / controller:AOC-SAS3-9500-8E- 12Gb/s 2-external ports SAS3 HBAAOC-SAS3-9500-16E- 12Gb/s 4-external ports SAS3 HBAAOC-SAS3-9580-8I8E- 12Gb/s 2-external ports SAS3 RAID Controller

    Key Applications

    • Data Centers
    • High-Performance Computing
    • Large Scale Storage Solutions
    • Enterprise Data Management
    • Cloud Storage
    • Backup and Archiving
    • Content Delivery Networks
    • Big Data Analytics
    • Virtualization Environments
    • Disaster Recovery Solutions

    Description

    The Supermicro 4U SC847JBOD chassis features 44 hot-swap drive bays for SAS3/SATA3 drives, supporting 12Gbps throughput. It includes redundant 1200W Titanium-Level power supplies, JBOD power control board with IPMI for remote operations, and a SAS3 backplane with single expander. With high efficiency cooling and advanced connectivity options, it is designed for substantial storage and high-performance computing needs.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperChassis 847E1C-R1K23JBOD
    Dimensions
    Height
    • 7" (178 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 27.5" (699 mm)
    Gross Weight
    • 118 lbs (53.52 kg)
    Net Weight
    • 86 lbs (39 kg)
    Packaging (W x H x L)
    • 27.2" (691 mm) x 17.4" (442 mm) x 39.6" (1006 mm)
    Available Color
    • Black
    Front Panel
    Button
    • Power On/Off button
    • System Reset button
    • Unit Identification (UID) button
    LED
    • Power status LED
    • 1 Network activity LEDs
    • Power Fail LED
    • Unit Identification (UID) LED
    • Fan Fail/System Over Heat LED
    Systems Cooling
    Fans
    • 7x 8cm hot-swap redundant PWM cooling fan(s)
    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)
    Power Supply
    • 1U 1200W/1000W Titanium Power Supply W/PM Bus W76xL336xH40mm
    Power Efficiency
    • 96%
    Total Output Power and Input
    • 1200W with Input 200 - 240Vac
    • 1000W with Input 100 - 127Vac
    • 1200W with Input 200 - 240Vdc
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 336 x 76 x 40 mm
    Output Type
    • Backplanes (gold finger)
    +12V
    • Max: 100A / Min: 0A (200Vdc - 240Vdc)
    • Max: 100A / Min: 0A (200Vac - 240Vac)
    • Max: 83A / Min: 0A (100Vac - 127Vac)
    +5Vsb
    • Max: 4A / Min: 0A
    Power Distributor
    • PDB-PT847-8824
    • O/P: 12V/135
    • +5V Max: 100A
    • +3.3V Max: 30A
    • -12V Max: 0.6A
    Certification
    • Titanium Certified
    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • CE/EMC
    • FCC class A
    • UL/CB
    • UL/CUL

    Standard Part List

    Part Number Quantity Description
    Bracket
    MCP-120-84702-0N1CB3 mounting bracket for use on chassis with CB2 holes. Bracket to mount CB3 card on existing CB2 standoff on SC847/SC417/SC837/SC826/SC836/SC846 in JBOD configuration.,HF,RoHS/REACH,PBF
    HD Backplane
    BPN-SAS3-846EL11SAS3 12G Single LSI SAS3 Expander, 24x 3.5" Drive, RoHS
    Control Board
    MCP-280-84701-0N2SC847D JBOD Mini SAS HD Ext-to-Int adapter ,HF,RoHS/REACH,PBF
    CSE-PTJBOD-CB31JBOD chassis power control board with IPMI remote on/off feature
    Cable(s)
    CBL-CDAT-060124 Pin to 4 Pin I2C cable, 50cm, 26AWG,RoHS
    CBL-NTWK-05871INT RJ45M/RJ45F Adapter W/ PCB 50CM 24AWG for SC847D JBOD
    CBL-SAST-05682Internal Mini-SAS HD to Mini-SAS HD 35cm,30AWG,12Gb/s
    CBL-SAST-05934Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s
    CBL-SAST-0593-014Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s [FCI]
    Power Distributor
    PDB-PT847-8824124pin standard output with 5V high current 100Amp power distributor board for SC847
    Power Supply & Accessory
    PWS-1K23A-1R2AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 336x76x40 mm,HF,RoHS/REACH

    Optional Part List

    Part Number Quantity Description
    Cable
    CBL-SAST-0690-1-MINI SAS HD,12G,EXT,2M,30AWG,RoHS
    CBL-SAST-0573-1m external Mini SAS HD to external mini SAS HD.28AWG,HF,RoHS/REACH,PBF
    CBL-SAST-0677-3m 12G external Mini SAS HD to external mini SAS HD.28AWG,RoHS/REACH
    HDD Tray Converter
    MCP-220-00118-0B-Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH
    Rail
    MCP-290-00058-0N-Short rail set, quick release, 19.6"~26.9" Extendable Length
