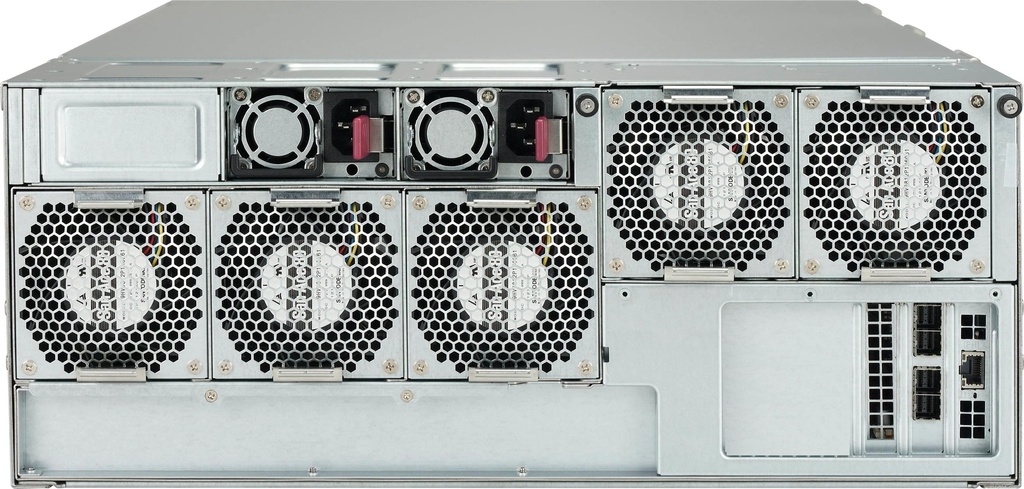

4U SC946L SAS3 top loading 45 DrivesJBODw/Single Expander

SKU: CSE-946LE1C-R1K66JBOD
Brand: Supermicro
https://safeconsulting.no/web/image/product.template/12651/image_1920?unique=6e0a78f

kr 40,327.53 40327.53 NOK kr 40,327.53 VAT Excluded

kr 40,327.53 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The 4U SC946L chassis supports 45 top-loading SAS/SATA drives, making it ideal for cloud backup, data replication, or high-density archive storage. It includes a single expander, redundant 1600W power supply, and optimized cooling with 5 hot-swap fans.

    Key Features

    • Extreme High Density and High Capacity Storage Chassis support 45 x 3.5" Top Loading SAS/SATA 12Gb/s Hot Swapping HDD/SSD Bays
    • Tool-less HDD tray with HDD LED indicator
    • Single Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
    • 4 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
    • 1x IPMI port for Remote System Power on/off and system monitoring
    • Support NTP for time synchronization & RTC battery backup
    • 1600W (1+1) Redundant High-efficiency Platinum Level Power Supplies
    • Optimized cooling w/ 5x 80x38mm rear hot-swap fans
    • Support front LCD panel for system status & error info (Option)
    • Ideal for Cloud backup, data Replication or High density Archive Storage Applications
    • Qualified SAS HBA / controller:AOC-SAS3-9300-8E- 12Gb/s 2-external ports SAS3 HBAAOC-SAS3-9380-8E- 12Gb/s 2-external ports SAS3 RAID Controller

    Key Applications

    • Cloud Backup
    • Data Replication
    • High-Density Archive Storage
    • Enterprise Storage Solutions
    • Data Centers
    • Virtualization
    • Media and Entertainment
    • Scientific Research
    • Big Data Applications
    • Content Delivery Networks

    Description

    The 4U SC946L is a high-density storage chassis designed for professional server setups. It supports 45 top-loading SAS/SATA 12Gb/s hot-swapping HDD/SSD bays and includes single expander backplane boards. The cooling is optimized with 5 rear hot-swap fans, and the power supply is a 1600W redundant platinum level unit. Ideal for cloud backup, data replication, or high-density archive storage.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperChassis 946LE1C-R1K66JBOD
    Dimensions
    Height
    • 7" (178 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 26" (660 mm)
    • 32.5" (825.5 mm) with cable management arm installed
    Gross Weight
    • 120 lbs (54.43 kg)
    Net Weight
    • 85 lbs (38.56 kg)
    Packaging (W x H x L)
    • No/A
    Palletized Packing (W x H x L)
    • 28" (711 mm) x 23" (584 mm) x 42.5" (1080 mm)
    Available Color
    • Black
    Front Panel
    Button
    • Power On/Off button
    • Unit Identification (UID) button
    LED
    • Power status LED
    • 1 Network activity LEDs
    • System Information LED
    • Power Fail LED
    Systems Cooling
    Fans
    • 5x 80mm rear hot-swap exhaust PWM fan(s)
    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 60°C (-40°F - 140°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)
    Power Supply
    • 1600W 1U redundant power supply
    Power Efficiency
    • 96%
    Dimensions (L x W x H)
    • 265 x 73.5 x 40 mm
    Output Type
    • Backplanes (gold finger)
    Power Distributor
    • PDB-PT946S-L824
    • O/P: 12V/200
    • +5V Max: 25A
    • +3.3V Max: 25A
    • -12V Max: 0A
    Certification
    • Titanium Certified
    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • CE/EMC
    • FCC class A
    • TUV/CB
    • UL/CUL

    Standard Part List

    Part Number Quantity Description
    Bracket
    MCP-120-84702-0N1CB3 mounting bracket for use on chassis with CB2 holes. Bracket to mount CB3 card on existing CB2 standoff on SC847/SC417/SC837/SC826/SC836/SC846 in JBOD configuration.,HF,RoHS/REACH,PBF
    MCP-120-84705-0N1LP PCI bracket for CBL-NTWK-0587 LAN extension cable,HF,RoHS/REACH,PBF
    MCP-320-94601-0N1SC946S Rear 3 FAN bracket for 3x 8038 FAN
    MCP-320-94602-0N1SC946S Rear 2 FAN bracket for 2x 8038 FAN
    HD Backplane
    BPN-SAS3-946LEL11SAS3 12Gb/s single-path expander backplane, top-load 45bays
    Control Board
    CSE-PTJBOD-CB31JBOD chassis power control board with IPMI remote on/off feature
    Cable(s)
    CBL-00871CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,50CM
    CBL-0160L2US POWER CORD 16AWG, PB FREE
    CBL-0459L2AC Power Cord Latch Clamp
    CBL-CDAT-060114 Pin to 4 Pin I2C cable, 50cm, 26AWG,RoHS
    CBL-CDAT-071614 Pin to 4 Pin I2C cable for JBOD chassis, 25cm, 26AWG
    CBL-NTWK-05871INT RJ45M/RJ45F Adapter W/ PCB 50CM 24AWG for SC847D JBOD
    CBL-PWCD-0578-12PWCD,US,IEC60320 C14 TO C13,3FT,14AWG,RoHS
    CBL-PWCD-0578-IS2PWCD,US,IEC60320 C14 TO C13,910mm,14AWG,15A,250V,Black, RoHS
    CBL-PWEX-08631Powerlug to 5.7 Radsok, yel 12AWG, 32cm for SC946S
    CBL-PWEX-10241Powerlug to 5.7 Radsok, black 12AWG, 45cm,RoHS
    CBL-SAST-08344(SLIMSAS to MiniSAS HD)x4/STR,50CM,32#,85Ohms,RoHS/REACH
    Part(s)
    MCP-210-94604-0N1SC946S/L front bezel bracket
    MCP-220-94604-0N1SC946S Motherboard tray
    MCP-230-94606-0N1SC946L Top cover
    MCP-240-94602-0N2SC946S HDD partition bracket
    MCP-270-94604-0N1SC946L Chassis base
    MCP-290-00135-0V14U Auto-latch left handle
    MCP-290-00136-0V14U Auto-latch right handle
    MCP-290-94606-0N1SC946S PDB bracket
    MCP-290-94607-0N1946S rear dummy cover for 2 X 2.5
    MCP-120-00062-0N3Blank LP L-bracket (5x5 square hole)
    Fan(s)
    FAN-0184L4580x80x38 mm, 14.4K RPM, Rear Exhaust Fan for SC946S Chassis (60-bay)
    Front Panel
    FPB-FP829H1Front Control Board for SC829H chassis
    Drive Tray(s)
    MCP-220-94601-0N45SC946ED 3.5" / 2.5" tool-less HDD tray
    Power Distributor
    PDB-PT946S-L82414U PDB support over 2KW for SC946S and 45bay system.,RoHS
    Power Supply & Accessory
    PWS-1K66P-1R21U 1600W Redundant Platinum Power Supply 73.5mm width,RoHS/REACH,PBF
    Mounting Rail(s)
    MCP-290-00133-0N1Cable Management Arm, 2U height, 4
    MCP-290-00150-0N1Rail set, Auto-latch, quick/quick, default 4U 17.2
    Rear Window
    MCP-240-94604-0N1SC946S rear window, NO I/O. w/ 3x LP slots

    Optional Part List

    Part Number Quantity Description
    Adaptor Bracket
    MCP-290-00166-0N1Threaded rail adapter, auto latch, for round hole rack,RoHS
    Cable
    CBL-SAST-0690-1-MINI SAS HD,12G,EXT,2M,30AWG,RoHS
    CBL-SAST-0677-3m 12G external Mini SAS HD to external mini SAS HD.28AWG,RoHS/REACH
