4U SC946S SAS3 Top Loading 60 Drive JBOD w/Dual Expander

CSE-946SE2C-R1K66JBOD
https://safeconsulting.no/web/image/product.template/12652/image_1920?unique=4175d88

kr 65,629.36 65629.36 NOK kr 65,629.36

kr 65,629.36

Not Available For Sale

    This combination does not exist.

    Summary Description

    The Supermicro 4U SC946S JBOD offers extreme high-capacity storage with 60 top-loading 3.5" SAS 12Gb/s hot-swap bays. Designed for high availability, it includes dual expander backplanes and 1600W redundant power supplies. Optimized cooling, tool-less HDD trays, and IPMI remote management make it ideal for cloud backup and data replication.

    Key Features

    • Extreme High Density and High Capacity Storage Chassis support 60 x 3.5" Top Loading SAS 12Gb/s Hot Swapping HDD/SSD Bays
    • Tool-less HDD tray with HDD LED indicator
    • Dual Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
    • 8 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
    • 1x IPMI port for Remote System Power on/off and system monitoring
    • Support NTP for time synchronization & RTC battery backup
    • 1600W (1+1) Redundant High-efficiency Platinum Level Power Supplies

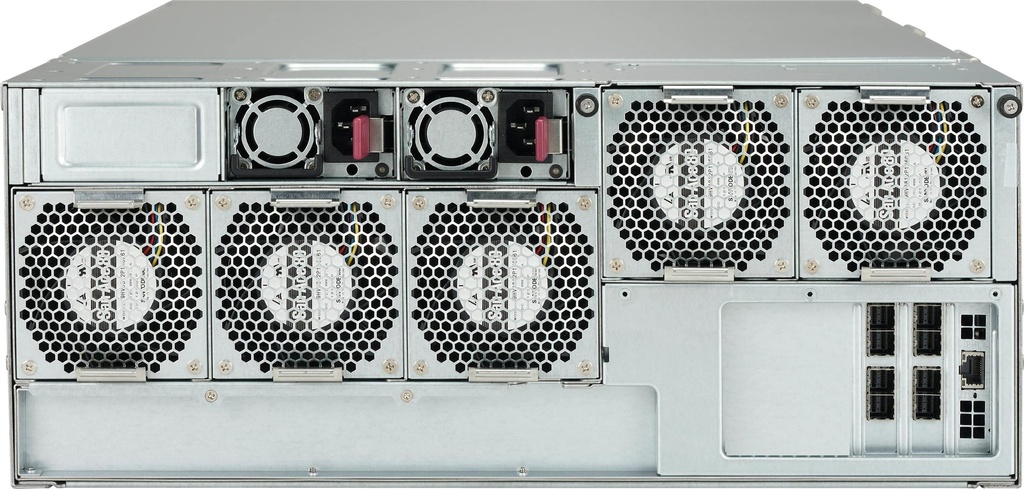

    • Optimized cooling w/ 5x 80x38mm rear hot-swap fans
    • Support front LCD panel for system status & error info (Option)
    • Ideal for Cloud backup, data Replication or High density Archive Storage Applications
    • Qualified SAS HBA / controller:AOC-SAS3-9300-8E- 12Gb/s 2-external ports SAS3 HBAAOC-SAS3-9380-8E- 12Gb/s 2-external ports SAS3 RAID Controller

    Key Applications

    • Cloud Backup
    • Data Replication
    • High Density Archive Storage
    • Big Data Analytics
    • Enterprise Storage Solutions
    • Disaster Recovery
    • Content Delivery Networks
    • Data Warehousing
    • Virtualization
    • Database Storage

    Description

    The Supermicro 4U SC946S is a high-density JBOD chassis supporting up to 60 top-loading 3.5" SAS 12Gb/s hot-swap HDD/SSD bays. It features dual expander backplanes, 1600W redundant power supplies, and optimized cooling with rear hot-swap fans. Ideal for cloud backup, high-density archive storage, and data replication. Includes tool-less HDD trays and optional front LCD panel for system status.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperChassis 946SE2C-R1K66JBOD
    Dimensions
    Height
    • 7" (178 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 30.2" (767.08 mm)
    • 35.2" (894 mm) with cable management arm installed
    Gross Weight
    • 155 lbs (70.31 kg)
    Net Weight
    • 100 lbs (45.36 kg)
    Packaging (W x H x L)
    • 28" (711 mm) x 33.25" (845 mm) x 42.5" (1080 mm)
    Available Color
    • Black
    Front Panel
    Button
    • Power On/Off button
    • Unit Identification (UID) button
    LED
    • Power status LED
    • 1 Network activity LEDs
    • System Information LED
    • Power Fail LED
    Systems Cooling
    Fans
    • 5x 80mm rear hot-swap exhaust PWM fan(s)
    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 60°C (-40°F - 140°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)
    Power Supply
    • 1600W 1U redundant power supply
    Power Efficiency
    • 96%
    Dimensions (L x W x H)
    • 265 x 73.5 x 40 mm
    Output Type
    • Backplanes (gold finger)
    Power Distributor
    • PDB-PT946S-824
    • O/P: 12V/168A
    • +5V Max: 25A
    • +3.3V Max: 25A
    • -12V Max: 0.6A
    Certification
    • Titanium Certified
    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • CE/EMC
    • FCC class A
    • TUV/CB
    • UL/CUL

    Standard Part List

    Part Number Quantity Description
    Bracket
    MCP-120-84702-0N1CB3 mounting bracket for use on chassis with CB2 holes. Bracket to mount CB3 card on existing CB2 standoff on SC847/SC417/SC837/SC826/SC836/SC846 in JBOD configuration.,HF,RoHS/REACH,PBF
    MCP-120-84705-0N1LP PCI bracket for CBL-NTWK-0587 LAN extension cable,HF,RoHS/REACH,PBF
    MCP-320-94601-0N1SC946S Rear 3 FAN bracket for 3x 8038 FAN
    MCP-320-94602-0N1SC946S Rear 2 FAN bracket for 2x 8038 FAN
    Control Board
    CSE-PTJBOD-CB31JBOD chassis power control board with IPMI remote on/off feature
    Cable(s)
    CBL-00871CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,50CM
    CBL-0160L2US POWER CORD 16AWG, PB FREE
    CBL-0303L14PIN POWER CABLE, ST TO RA, 40CM
    CBL-0459L2AC Power Cord Latch Clamp
    CBL-CDAT-060124 Pin to 4 Pin I2C cable, 50cm, 26AWG,RoHS
    CBL-NTWK-05871INT RJ45M/RJ45F Adapter W/ PCB 50CM 24AWG for SC847D JBOD
    CBL-PWCD-0578-12PWCD,US,IEC60320 C14 TO C13,3FT,14AWG,RoHS
    CBL-PWCD-0578-IS2PWCD,US,IEC60320 C14 TO C13,910mm,14AWG,15A,250V,Black, RoHS
    CBL-PWEX-08611Powerlug to 5.7 Radsok, black 12AWG, 32cm for SC946S
    CBL-PWEX-08621Powerlug to 5.7 Radsok, black 12AWG, 53cm for SC946S
    CBL-PWEX-08631Powerlug to 5.7 Radsok, yel 12AWG, 32cm for SC946S
    CBL-PWEX-08641Powerlug to 5.7 Radsok, yel 12AWG, 53cm for SC946S
    CBL-SAST-08334SLIMLINE SAS, INT, 55MM, 32AWG
    CBL-SAST-08344(SLIMSAS to MiniSAS HD)x4/STR,50CM,32#,85Ohms,RoHS/REACH
    CBL-SAST-08354(SlimSAS to MiniSAS HD) x4,STR,100CM,32AWG,RoHS
    Part(s)
    MCP-210-94604-0N1SC946S/L front bezel bracket
    MCP-220-94604-0N1SC946S Motherboard tray
    MCP-230-94603-0N1SC946S Top cover
    MCP-240-94602-0N3SC946S HDD partition bracket
    MCP-270-94602-0N1SC946S Chassis base
    MCP-290-00135-0V14U Auto-latch left handle
    MCP-290-00136-0V14U Auto-latch right handle
    MCP-290-94606-0N1SC946S PDB bracket
    MCP-290-94607-0N1946S rear dummy cover for 2 X 2.5
    MCP-120-00062-0N3Blank LP L-bracket (5x5 square hole)
    Fan(s)
    FAN-0184L4580x80x38 mm, 14.4K RPM, Rear Exhaust Fan for SC946S Chassis (60-bay)
    Front Panel
    FPB-FP829H1Front Control Board for SC829H chassis
    Drive Tray(s)
    MCP-220-94601-0N60SC946ED 3.5" / 2.5" tool-less HDD tray
    Power Distributor
    PDB-PT946S-L82414U PDB support over 2KW for SC946S and 45bay system.,RoHS
    Power Supply & Accessory
    PWS-1K66P-1R21U 1600W Redundant Platinum Power Supply 73.5mm width,RoHS/REACH,PBF
    Mounting Rail(s)
    MCP-290-00133-0N1Cable Management Arm, 2U height, 4
    MCP-290-00137-0N1Rail set, Auto-latch, quick/quick, default 4U 17.2"W
    Rear Window
    MCP-240-94604-0N1SC946S rear window, NO I/O. w/ 3x LP slots

    Optional Part List

    Part Number Quantity Description
    Adaptor Bracket
    MCP-290-00166-0N-Threaded rail adapter, auto latch, for round hole rack,RoHS
    Cable
    CBL-SAST-0690-1-MINI SAS HD,12G,EXT,2M,30AWG,RoHS
    CBL-SAST-0677-MINI SAS HD,12G,EXT,3M,28AWG
