4U 90-bay Top Load JBOD w/ dual expander,RoHS

CSE-947HE2C-R2K05JBOD
https://safeconsulting.no/web/image/product.template/12102/image_1920?unique=8d6572e

kr 115,497.62 115497.62 NOK kr 115,497.62

kr 115,497.62

Not Available For Sale

    This combination does not exist.

    Summary Description

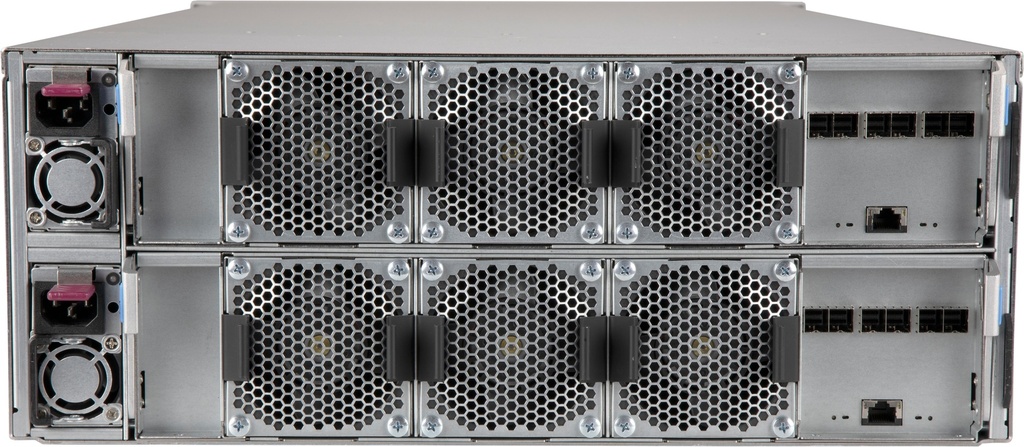

    The Supermicro CSE-947HE2C-R2K05JBOD is a high availability 4U Rackmount Top-Load JBOD Storage Enclosure, capable of supporting 90 SAS3 12Gb/s hot-swappable HDDs.

    Key Features

    • Dual-Path Storage Enclosure for High Availability Applications
    • Support two canister controllers; 1+1 redundant for Dual-Path Enclosure
    • Support 90 3.5"/2.5" Top Loading SAS3 12Gb/s Hot-Swappable HDDs
    • 6x SAS3.0 IO ports (MiniSAS HD/SFF-8644) per node
    • Dedicated IPMI RJ45 management port
    • Redfish OOB management protocol support
    • SCSI Enclosure Services SES-4 support
    • Hot-swappable Tool-less Modular Design for Easy Service and Easy Maintenance
    • Redundant Titanium 2000W power supply

    Key Applications

    • High Availability Applications
    • Data Center Storage
    • Enterprise Storage Solutions
    • Large Scale Data Storage
    • Redundant Power Supply Systems
    • Modular Design Systems
    • Hot-Swappable HDD Systems
    • Rackmount Storage Solutions
    • SAS3 Storage Systems

    Description

    The Supermicro CSE-947HE2C-R2K05JBOD is designed for high availability applications, featuring a dual-path storage enclosure, support for dual canister controllers, and redundant 2000W Titanium power supplies. This 4U rackmount chassis can house up to 90 3.5"/2.5" top-loading SAS3 12Gb/s hot-swappable HDDs and includes six SAS3.0 IO ports per node, dedicated IPMI RJ45 management port, and support for Redfish OOB management protocol. The system is equipped with hot-swappable tool-less modular design to facilitate easy service and maintenance.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperChassis 947HE2C-R2K05JBOD
    Dimensions
    Height
    • 6.96" (177 mm)
    Width
    • 17.6" (447 mm)
    Depth
    • 43.3" (1099 mm)
    Gross Weight
    • 225 lbs (102.06 kg)
    Net Weight
    • 130 lbs (58.97 kg)
    Packaging (W x H x L)
    • No/A
    Palletized Packing (W x H x L)
    • 35.82" (910 mm) x 29.92" (755 mm) x 53.15" (1345 mm)
    Available Color
    • Black
    Front Panel
    Button
    • Power On/Off button
    • System Reset button
    • Unit Identification (UID) button
    LED
    • HDD activity LED
    • 1 Network activity LEDs
    • System Information LED
    • Unit Identification (UID) LED
    • Power LED
    Systems Cooling
    Fans
    • 6x 8cm hot-swap redundant PWM cooling fan(s)
    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)
    Power Supply
    • 1U 2000W Redundant Titanium AC Power supply, 73.5x40x265mm, CRPS
    Power Efficiency
    • 96%
    Total Output Power and Input
    • 1000W with Input 100 - 120Vac
    • 1980W with Input 220 - 230Vac
    • 1800W with Input 200 - 220Vac
    • 2000W with Input 200 - 240Vac
    • 2000W with Input 230 - 240Vac
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 265 x 73.5 x 40 mm
    Output Type
    • Backplanes (gold finger)
    +12V
    • Max: 165A / Min: 0A (220Vac - 230Vac)
    • Max: 150A / Min: 0A (200Vac - 220Vac)
    • Max: 166.7A / Min: 0A (200Vac - 240Vac)(for UL/cUL only)
    • Max: 166.7A / Min: 0A (230Vac - 240Vac)
    • Max: 83.3A / Min: 0A (100Vac - 120Vac)
    +12Vsb
    • Max: 2.1A / Min: 0A
    Certification
    • Titanium Certified
    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • CE/EMC
    • FCC class A
    • TUV/CB
    • UL/CUL

    Standard Part List

    Part Number Quantity Description
    Bracket
    MCP-240-94706-0N1SC947S/H Midplane bracket
    MCP-240-94707-0N3SC947S/H HDD partition bracket, left
    MCP-240-94708-0N3SC947S/H HDD partition bracket, right
    HD Backplane
    BPN-ADP-30SAS3-13Adapter board between Expander and HDD BPN for CSE-947H,RoHS
    BPN-SAS3-947EB6HDD Backplane (15-slot) for CSE-947H 60/90-bay top load chassis/server.,RoHS
    BPN-SAS3-947EL6SAS3 expander module for top-load 60/90-bay single/twin/SBB CSE-947 project,RoHS
    BPN-SAS3-947HCB-JB2IPMI control board for CSE-947H top-load 60/90-bay JBOD
    BPN-SAS3-947HEL-JB2JBOD I/O board for CSE-947H top-load 60/90-bay JBOD unit
    BPN-SAS3-947SB1Midplane for topload CSE-947 60/90-bay SBB/Twin/single-node system,RoHS
    Cable(s)
    CBL-OTHR-1104190 SBB,SlimlineULP x12 to SlimlineLP x8,FFC,100 OHM to
    CBL-PWEX-11011[NR]PH3.0,F to PH3.0,M,2x4P TO PH3.0,M,2x8P,6A/p,30.6/43.6CM,18AWG
    CBL-PWEX-11021[NR]MicroFit (2x8 to 2x4),Ph3.0,35/49cm,fold,18AWG,RoHS
    CBL-PWEX-11031[NR]PH3.0,F to PH3.0,M,2x4P TO PH3.0,M,2x8P,6A/pin,18AWG,72.4/85.5CM
    Part(s)
    MCP-240-94709-0N1SC947S/H Rear Outer Enclosure
    MCP-270-94703-0N1SC947H 90-Bay Chassis External Enclosure Base
    MCP-120-94707-0N1SC947H Inner partition bracket, left
    MCP-120-94708-0N1SC947H Inner partition bracket, right
    MCP-320-94703-0N2SC947S/H reverse air blocker for MB tray
    MCP-220-94710-0N2SC947S/SC947H JBOD tray 2U height
    Front Panel
    FPB-FP827BR12U BigTwin front control board - right side
    Drive Tray(s)
    MCP-220-94601-0N90SC946ED 3.5" / 2.5" tool-less HDD tray
    Power Supply & Accessory
    PWS-2K05A-1R21U 2000W Redundant Titanium Power Supply W/PMbus 73.5x40x265mm,RoHS/REACH
    Mounting Rail(s)
    MCP-290-00180-0N1L shape rail set for 4U chassis, quick release , for 17.6"W
    MCP-290-94703-0N1Internal rail set, ball bearing for 947H

    Optional Part List

    Part Number Quantity Description
    Cable
    CBL-SAST-0690-1-MINI SAS HD,12G,EXT,2M,30AWG,RoHS
    CBL-SAST-0677-3m External Mini SAS HD to External Mini SAS HD 28AWG
    CBL-SAST-0573-01-MINI SAS HD, EXT, 1M, 28AWG
