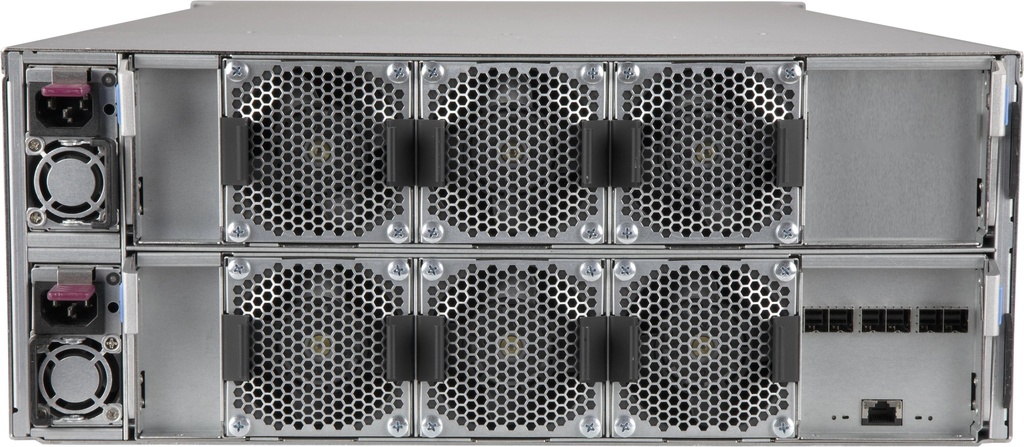

4U 60-bay Top Load JBOD w/ single expander,RoHS

CSE-947SE1C-R1K66JBOD
https://safeconsulting.no/web/image/product.template/12653/image_1920?unique=4175d88

kr 81,903.14 81903.14 NOK kr 81,903.14

kr 81,903.14

Not Available For Sale

    This combination does not exist.

    Summary Description

    The Supermicro 4U JBOD chassis supports up to 60 3.5" SAS3 12Gb/s hot-swappable HDDs. It includes features like a single expander, redundant 1600W power supply, and robust management protocols, making it an excellent choice for data centers and enterprise storage.

    Key Features

    • Single-Path Storage Enclosure
    • Support single canister controllers
    • Support 60 3.5" Top Loading SAS3 12 Gb/s Hot-Swappable HDDs
    • 6x SAS3.0 IO ports ( MiniSAS HD) per node
    • Dedicated IPMI RJ45 management port
    • Redfish OOB management protocol support
    • SCSI Enclosure Services SES-4 support
    • Hot-swappable Tool-less Modular Design for Easy Service and Easy Maintenance
    • Redundant Platinum 1600W power supply

    Key Applications

    • Data Centers
    • Enterprise Storage
    • High-Performance Computing
    • Backup Systems
    • Large-Scale Databases
    • Cloud Storage
    • Virtualization
    • Big Data Processing
    • Content Delivery Networks
    • Archiving

    Description

    This Supermicro 4U JBOD chassis offers 60 top-loading 3.5" SAS3 12Gb/s hot-swappable HDDs, perfect for large storage solutions. It features a single expander, redundant platinum-level 1600W power supply, and robust cooling with 6x 8cm hot-swap fans. Ideal for data-intensive applications with easy access and management features.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperChassis 947SE1C-R1K66JBOD
    Dimensions
    Height
    • 6.96" (177 mm)
    Width
    • 17.6" (447 mm)
    Depth
    • 32" (813 mm)
    Gross Weight
    • 170 lbs (77.11 kg)
    Net Weight
    • 107 lbs (48.53 kg)
    Packaging (W x H x L)
    • No/A
    Palletized Packing (W x H x L)
    • 35.82" (805 mm) x 29.92" (755 mm) x 53.15" (1135 mm)
    Available Color
    • Black
    Front Panel
    Button
    • Power On/Off button
    • Unit Identification (UID) button
    LED
    • HDD activity LED
    • 1 Network activity LEDs
    • System Information LED
    • Unit Identification (UID) LED
    • Power LED
    Systems Cooling
    Fans
    • 6x 8cm hot-swap redundant PWM cooling fan(s)
    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)
    Power Supply
    • 1600W redundant power supply, Platinum level with PM Bus & I2C
    Power Efficiency
    • 94%
    Total Output Power and Input
    • 1000W with Input 100 - 127Vac
    • 1600W with Input 200 - 240Vac
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 265 x 73.5 x 40 mm
    Output Type
    • Backplanes (gold finger)
    +12V
    • Max: 82A / Min: 0.1A (100Vac - 120Vac)
    • Max: 132A / Min: 0.1A (200Vac - 240Vac)
    +12Vsb
    • Max: 2A / Min: 0.2A
    Certification
    • Platinum Certified
    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • CE/EMC
    • FCC class A
    • TUV/CB
    • UL/CUL

    Standard Part List

    Part Number Quantity Description
    Bracket
    MCP-240-94706-0N1SC947S/H Midplane bracket
    MCP-240-94707-0N5SC947S/H HDD partition bracket, left
    MCP-240-94708-0N5SC947S/H HDD partition bracket, right
    HD Backplane
    BPN-ADP-30SAS3-12Adapter board between Expander and HDD BPN for CSE-947H,RoHS
    BPN-ADP-947SB1BPN-ADP-947SB,RoHS
    BPN-SAS3-947EB4HDD Backplane (15-slot) for CSE-947H 60/90-bay top load chas
    BPN-SAS3-947EL2SAS3 expander module for top-load 60/90-bay single/twin/SBB
    BPN-SAS3-947HCB-JB1Hot swappable JBOD IPMI control board for CSE-947H top-load
    BPN-SAS3-947HEL-JB1Hot-swappable JBOD I/O board for CSE0947H top load 60/90-bay
    BPN-SAS3-947SB1Midplane for topload CSE-947 60/90-bay SBB/Twin/single-node
    Cable(s)
    CBL-OTHR-1102160-single,SlimlineULP x12 to SlimlineLP x8,FFC,100 OHM
    CBL-PWEX-11011[NR]PH3.0,F to PH3.0,M,2x4P TO PH3.0,M,2x8P,6A/p,30.6/43.6CM,18AWG
    CBL-PWEX-11021[NR]MicroFit (2x8 to 2x4),Ph3.0,35/49cm,fold,18AWG,RoHS
    Part(s)
    MCP-240-94709-0N1SC947S/H Rear Outer Enclosure
    MCP-270-94702-0N1SC947S 60-Bay Chassis External Enclosure Base
    MCP-120-94705-0N1SC947S Inner partition bracket, left
    MCP-120-94706-0N1SC947S Inner partition bracket, right
    MCP-320-94703-0N2SC947S/H reverse air blocker for MB tray
    MCP-220-94710-0N2SC947S/SC947H JBOD tray 2U height
    Front Panel
    FPB-FP827BR12U BigTwin front control board - right side
    Drive Tray(s)
    MCP-220-94601-0N60SC946ED 3.5" / 2.5" tool-less HDD tray
    Power Supply & Accessory
    PWS-1K66P-1R21U 1600W Redundant Platinum Power Supply 73.5mm width,RoHS/REACH,PBF
    Mounting Rail(s)
    MCP-290-00180-0N1L shape rail set for 4U chassis, quick release , for 17.6"W
    MCP-290-94704-0N1Internal rail set, ball bearing for 947S

    Optional Part List

    Part Number Quantity Description
    Cable
    CBL-SAST-0690-1-MINI SAS HD,12G,EXT,2M,30AWG,RoHS
    CBL-SAST-0677-3m External Mini SAS HD to External Mini SAS HD 28AWG
    CBL-SAST-0573-01-MINI SAS HD, EXT, 1M, 28AWG
