1U SCLA15TQC WIO Chassis w/Redundant 500W,cost-effective

CSE-LA15TQC-R504W
https://safeconsulting.no/web/image/product.template/12076/image_1920?unique=5e77b27

kr 5,424.05 5424.05 NOK kr 5,424.05

kr 5,424.05

Not Available For Sale

    This combination does not exist.

    Summary Description

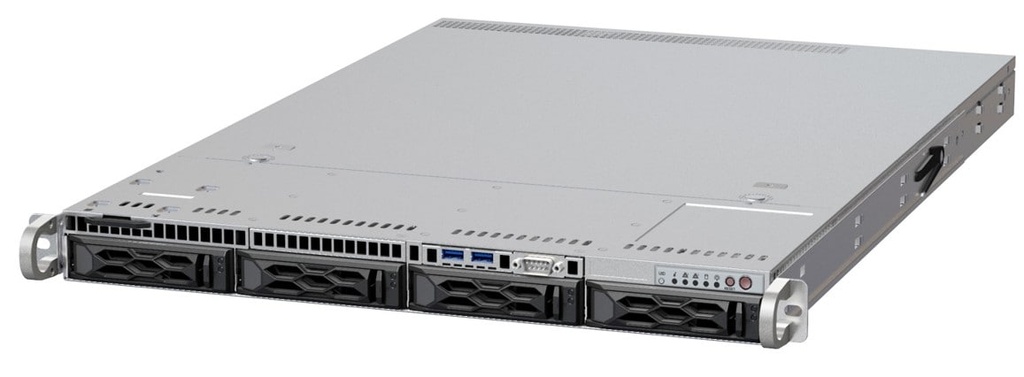

    The Supermicro CSE-LA15TQC-R504W 1U chassis is optimized for WIO motherboards and supports up to 4 hot-swap SAS3/SATA drives.

    Key Features

    • Optimized for WIO (W series) motherboards, support MB size up to 12.3" x 13.4"
    • 4 x 3.5"(tool-less) or 2.5"(screw) hot-swap SAS3/SATA drive bay
    • SAS or enterprise SATA HDD only recommended
    • 1U SAS/SATA Backplane with SES2 support
    • 1U 500W Redundant power supply Platinum level, 24Pin output
    • 2x full-height & full-length expansion slot(s) 1x low-profile expansion slot
    • 3 x 40x56mm counter-rotation PWM fan(s)
    • Support Service Tag for system information
    • OEM Only, MOQ Applies

    Key Applications

    • Optimized for WIO motherboards
    • Supports up to 4 hot-swap drives
    • Enterprise data centers
    • High-performance computing
    • Server management

    Description

    The Supermicro CSE-LA15TQC-R504W 1U chassis is specifically designed to support WIO (W series) motherboards with up to 12.3" X 13.4" dimensions. This chassis includes 4 x 3.5"(tool-less) or 2.5"(screw) hot-swap SAS3/SATA drive bays and a 500W redundant power supply with Platinum level efficiency. Additionally, it has 2x full-height & full-length and 1x low-profile expansion slots, 3x 40x56mm counter-rotation PWM fans, and is equipped to support Service Tags for system information management.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperChassis LA15TQC-R504W (OEM)
    Dimensions
    Height
    • 1.7" (43 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 25.6" (650 mm)
    Gross Weight
    • 28 lbs (12.7 kg)
    Packaging (W x H x L)
    • 23.7" (602 mm) x 7.7" (196 mm) x 32.1" (815 mm)
    Available Color
    • Black
    Front Panel
    Button
    • Power On/Off button
    • System Reset button
    • Unit Identification (UID) button
    LED
    • Power status LED
    • HDD activity LED
    • 2 Network Activity LEDs
    • Unit Identification (UID) LED
    • Fan Fail/System Over Heat LED
    Systems Cooling
    Fans
    • 3x 40x56mm counter-rotation PWM fan(s)
    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)
    Power Supply
    • 1U 500W/600W redundant single output 80 Plus Certification Platinum
    Power Efficiency
    • 92%
    Total Output Power and Input
    • 600W with Input 200 - 240Vac
    • 500W with Input 100 - 127Vac
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 322 x 54.5 x 40.25 mm
    Output Type
    • Backplanes (gold finger)
    +12V
    • Max: 50A / Min: 0A (200Vac - 240Vac)
    • Max: 42A / Min: 0A (100Vac - 127Vac)
    • Max: 50A / Min: 0A
    +5Vsb
    • Max: 4A / Min: 0A
    Power Distributor
    • PDB-PT116-L8824
    • O/P: 12V/80
    • +5V Max: 25A
    • +3.3V Max: 25A
    • -12V Max: 0.6A
    Certification
    • Platinum Certified
    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • CCC
    • CE/EMC
    • FCC
    • TUV/CB
    • UL/CUL

    Standard Part List

    Part Number Quantity Description
    HD Backplane
    BPN-SAS3-815TQ11U 4-Port 12Gbps Backplane Support 4x3.5
    Cable(s)
    CBL-0335L1FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF
    Part(s)
    MCP-220-81509-0N2USB 3.0 + COM Port Dummy cover for LA15 (cost-effective)
    MCP-230-00036-0N1Top cover with 1 mylar for SC815 (cost-down)
    MCP-240-00099-0N11U WIO riser card bracket for SC113, SC815, SC119, SC819
    MCP-270-81506-0N1Chassis base for CSE-LA15,WIO, Redundant PWS
    MCP-120-00030-0N1Blank LP L-bracket (1 raw of capsule hole)
    MCP-120-00053-0N2Blank FH L bracket w/o SCSI cutout for SC825,836,846,743
    Fan(s)
    FAN-0156L4340x40x56 mm 13K-11K RPM Counter-rotating Fan,RoHS/REACH
    Front Panel
    FPB-FP815U1815 UIO front control board (U)
    Cooling Fan & Accessory
    CSE-PT01351FAN HOLDER FOR SIX 40X56MM COUNTER ROTATING FANS
    MCP-340-00035-0B3Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
    Drive Tray(s)
    MCP-220-00184-0B4Black gen-9 tool-less cost-effective 3.5
    Power Distributor
    PDB-PT116-L882411U cost effective Power Distributor Board support up to 1KW,
    Power Supply & Accessory
    PWS-504P-1R221U Redundant 500W/600W, Platinum efficiency, AC inlet: C14,RoHS
    MCP-250-81502-0N1SC815 Redundant Power Distributor Cover
    Mounting Rail(s)
    MCP-290-00105-0N1 setInner rail, front, screw type
    Rear Window
    MCP-240-00098-0N1WIO rear window for SC113,SC116, SC815 Redundant PWS

    Optional Part List

    Part Number Quantity Description
    Air Shroud
    MCP-310-19002-0N-SC815/113/116 Intel DP X9, X8 PC air shroud, 12x13MB
    MCP-310-19019-0B-SC113/SC116/SC815/SC515, DP X11DDW Mylar air shroud
    MCP-310-81305-0B-Mylar air shroud for 1U X11SPW-TF,RoHS
    MCP-310-81306-0B-Mylar air shroud for 1U X12SPW-TF,RoHS
    Chassis parts
    MCP-290-00088-0N-SC119 Intrusion assembly
    Front Tray
    MCP-220-81510-0N-USB 3.0 + COM tray kit for LA15 (cost-effective)
    Hard Drive Carrier
    MCP-220-81511-0N-FDD size Tray support 1x 2.5" HDD for LA15 (cost-effective)
    Heatsink / Retention
    N/A-Please refer to our Thermal Components Matrix
    Rail
    MCP-290-00102-0N-Outer rail, quick-release type, 25.6" to 33.05"
    MCP-290-00054-0N-Rail set, quick/quick, optional for 1U 17.2
