1U SCLA15 TQC CloudDC Chassis w/ Redundant 860W,RoHS

CSE-LA15TQC-R860AW
https://safeconsulting.no/web/image/product.template/12086/image_1920?unique=549c3fa

kr 7,936.10 7936.1 NOK kr 7,936.10

kr 7,936.10

Not Available For Sale

    This combination does not exist.

    Summary Description

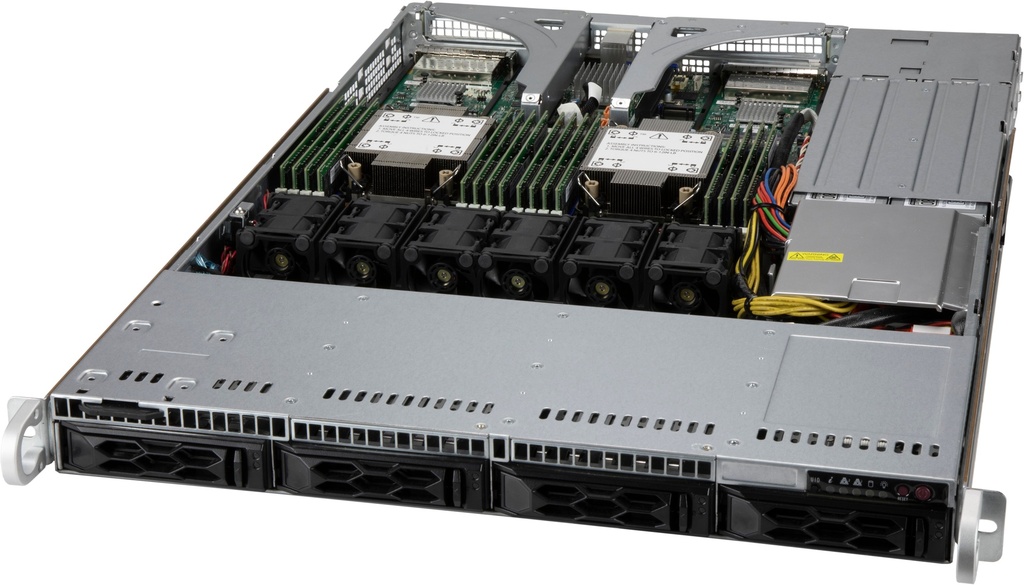

    The Supermicro CSE-LA15TQC-R860AW is a 1U chassis designed for Cloud Data Centers, featuring 4x 3.5"(tool-less) or 2.5"(screw) hot-swap SAS3/SATA drive bays, 2x full-height expansion slots, and a 1U 860W Redundant power supply with Platinum efficiency.

    Key Features

    • 1U Optimized for CloudDC motherboard with S-AIOM support, support MB size up to 12.3" x 13.4"
    • 4 x 3.5"(tool-less) or 2.5"(screw) hot-swap SAS3/SATA drive bay
    • SAS or enterprise SATA HDD only recommended
    • 1U SAS/SATA Backplane with SES2 support
    • 1U 860W Redundant power supply Platinum level, 24Pin output
    • 2x full-height & full-length expansion slot(s) 2x S-AIOM expansion slot(s)
    • 4 x 40x56mm counter-rotation PWM fan(s) by default, 2x as optional
    • Support Service Tag for system information

    Key Applications

    • Cloud Data Centers
    • High Performance Computing
    • Enterprise Storage Solutions

    Description

    The Supermicro CSE-LA15TQC-R860AW 1U chassis is specifically designed to support Cloud Data Center applications. It includes a 1U SAS/SATA Backplane with SES2 support, 4x 40x56mm counter-rotation PWM fans, and dual Intel® or AMD processor support. The chassis features two S-AIOM and two full-height expansion slots, an optional service tag for system information, and comprehensive system monitoring capabilities. The front panel is equipped with LEDs for power status, HDD activity, and network activity, among others. This chassis offers reliable cooling and power efficiency with 860W redundant power supply that is Platinum certified.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperChassis LA15TQC-R860AW
    Dimensions
    Height
    • 1.7" (43 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 25.6" (650 mm)
    Gross Weight
    • 28 lbs (12.7 kg)
    Packaging (W x H x L)
    • 23.7" (602 mm) x 7.7" (196 mm) x 34.1" (866 mm)
    Available Color
    • Black
    Front Panel
    Button
    • Power On/Off button
    • System Reset button
    • Unit Identification (UID) button
    LED
    • Power status LED
    • HDD activity LED
    • 2 Network Activity LEDs
    • Unit Identification (UID) LED
    • Fan Fail/System Over Heat LED
    Systems Cooling
    Fans
    • 4x 40x56mm counter-rotation PWM fan(s)
    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)
    Power Supply
    • 800W/860W 1U redundant power supply
    Power Efficiency
    • 94+%
    Total Output Power and Input
    • 860W with Input 200 - 240Vac
    • 800W with Input 100 - 127Vac
    • 860W with Input 200 - 240Vdc
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 322 x 54.5 x 40.25 mm
    Output Type
    • Backplanes (gold finger)
    +12V
    • Max: 71.6A / Min: 0A (200Vac - 240Vac)
    • Max: 66.6A / Min: 0A (100Vac - 127Vac)
    +5Vsb
    • Max: 4A / Min: 0A
    Power Distributor
    • PDB-PT116-SL8824
    • O/P: 12V/80
    • +5V Max: 25A
    • +3.3V Max: 25A
    • -12V Max: 0.6A
    Certification
    • Platinum Certified
    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • CE/EMC
    • UL/CB
    • UL/CUL

    Standard Part List

    Part Number Quantity Description
    HD Backplane
    BPN-SAS3-815TQ11U 4-Port 12Gbps Backplane Support 4x3.5
    Cable(s)
    CBL-CDAT-0680-551NCSI,2x10F to 2x10F,IDC,PH2.54,55cm,shield,28AWG,RoHS
    CBL-PWCD-0160-IS2PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
    Part(s)
    MCP-120-00116-0N2Blank FH L-bracket with 4x4 vent holes
    MCP-220-81509-0N2USB 3.0 + COM Port Dummy cover for LA15 (cost-effective)
    MCP-230-81502-0N11U AWIO top cover with 1 mylar for CSE-LA15 AW
    MCP-240-00175-0N2S-AIOM Dummy Cover for 1U chassis
    MCP-240-00177-0N2S-AIOM metal cage for 1U chassis
    MCP-240-00179-0N11U X12 AWIO Riser card bracket (Left) for LA15,LB16,LB13 AW
    MCP-240-00180-0N11U X12 AWIO Riser card bracket (Right) for LA15,LB16,LB13 AW
    MCP-290-00173-0N1SC119 Intrusion assembly upgraded version (with 3rd mounting screw hole) (cable length: 47mm)
    MCP-270-81506-0N1Chassis base for CSE-LA15,WIO, Redundant PWS
    MCP-320-00067-0B1Chassis base Air Foam block set (L+R) for Cloud-DC
    MCP-160-00028-0B1Mylar Cable Channel for Cloud-DC, X12 DDW
    Fan(s)
    FAN-0101L4440x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808
    Front Panel
    FPB-FP815U1815 UIO front control board (U)
    Cooling Fan & Accessory
    MCP-320-00056-0B2440X56 rubber fan pin for SC819U, SC119U,RoHS/REACH
    MCP-320-00066-0B1Fan holder with cable channel, 40X56mm fan, for LA15,LB16,LB13
    MCP-340-00035-0B2Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
    Drive Tray(s)
    MCP-220-00184-0B4Black gen-9 tool-less cost-effective 3.5
    Power Distributor
    PDB-PT116-SL88241Based on PDB-PT116-L8824 to optimize 24Pin etc cable lengths
    Power Supply & Accessory
    MCP-250-81502-0N1SC815 Redundant Power Distributor Cover
    PWS-860P-1R221U 860W, Redundant power supply, 54.5mm width, Platinum with
    Mounting Rail(s)
    MCP-290-00016-0N11U open rack bracket set for CSE-PT51L,MCP-290-00054-0N
    MCP-290-00054-0N1setRail set, quick/quick, optional for 1U 17.2
    Rear Window
    MCP-240-00173-0N11U X12 AWIO Rear window for LA15,LB16,LB13 Redundant PWS

    Optional Part List

    Part Number Quantity Description
    Air Shroud
    MCP-310-19019-0B-SC113/SC116/SC815/SC515, DP X11DDW Mylar air shroud
    MCP-310-81305-0B-Mylar air shroud for 1U X11SPW-TF,RoHS
    Chassis parts
    MCP-290-00088-0N-SC119 Intrusion assembly
    Hard Drive Carrier
    MCP-220-81511-0N-FDD size Tray support 1x 2.5" HDD for LA15 (cost-effective)
    Heatsink / Retention
    N/A-Please refer to our Thermal Components Matrix
    Rail
    MCP-290-00056-0N-Short outer rail, /quick, optional for 1U 17.2
    MCP-290-00102-0N-Outer rail, quick-release type, 25.6" to 33.05"
