1U SCLB13 CloudDC Chassis w/ Redundant 860W,RoHS

CSE-LB13AC2-R860AW
https://safeconsulting.no/web/image/product.template/12045/image_1920?unique=5e77b27

kr 8,748.46 8748.460000000001 NOK kr 8,748.46

kr 8,748.46

Not Available For Sale

    This combination does not exist.

    Summary Description

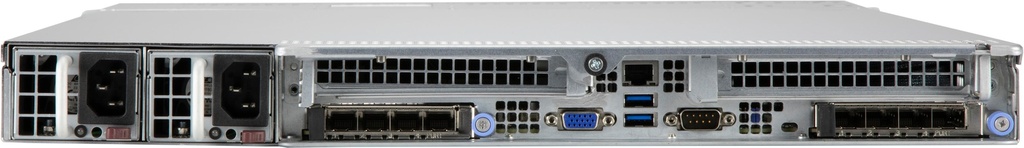

    Supermicro CSE-LB13AC2-R860AW, a 1U chassis featuring SAS3 12Gb/s and NVMe support, is optimized for CloudDC with S-AIOM support. This chassis includes 8x tool-less hot-swap SAS3/SATA drive bays, supports Intel and AMD processors, and features redundant 860W power supplies.

    Key Features

    • SAS3 12Gb/s and NVMe support1U Optimized for CloudDC motherboard with S-AIOM support, support MB size up to 12.3" x 13.4"
    • 8 x 2.5"(tool-less) hot-swap SAS3/SATA drive bay
    • SAS or enterprise SATA HDD only recommended
    • 1U SAS/SATA Backplane with SES2 support
    • 1U 860W Redundant power supply Platinum level, 24Pin output
    • 2x full-height & full-length expansion slot(s) 2x S-AIOM expansion slot(s)
    • 4 x 40x56mm counter-rotation PWM fan(s)by default, 2 x as optional
    • Support optional 1x Slim SATA DVD or 1x 2.5" HDD with DVD dummy tray kit
    • Support Service Tag for system information

    Key Applications

    • Data Centers
    • Cloud Computing
    • Enterprise Storage
    • High-Performance Computing

    Description

    The Supermicro CSE-LB13AC2-R860AW is a robust and versatile 1U chassis designed for optimizing CloudDC initiatives. This chassis is equipped with 8x 2.5" hot-swap SAS3/SATA drive bays and features support for dual and single Intel & AMD processors. It includes a sophisticated 1U SAS/SATA Backplane with SES2 support. Its cooling capabilities comprise 4x 40x56mm counter-rotation PWM fans, with options for additional fans. The redundant 860W power supply ensures reliability and efficiency with a Platinum level certification. Additional functionalities such as Service Tag support for system information and optional trays for slim SATA DVD or extra HDDs make it a highly versatile solution for data centers.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperChassis LB13AC2-R860AW
    Dimensions
    Height
    • 1.7" (43 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 23.5" (597 mm)
    Gross Weight
    • 40 lbs (18.14 kg)
    Packaging (W x H x L)
    • 23.7" (602 mm) x 7.7" (196 mm) x 31.8" (808 mm)
    Available Color
    • Black
    Front Panel
    Button
    • Power On/Off button
    • Unit Identification (UID) button
    LED
    • Power status LED
    • HDD activity LED
    • 2 Network Activity LEDs
    • Unit Identification (UID) LED
    Systems Cooling
    Fans
    • 4x 40x56mm counter-rotation PWM fan(s)
    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)
    Power Supply
    • 800W/860W 1U redundant power supply
    Power Efficiency
    • 94+%
    Total Output Power and Input
    • 860W with Input 200 - 240Vac
    • 800W with Input 100 - 127Vac
    • 860W with Input 200 - 240Vdc
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 322 x 54.5 x 40.25 mm
    Output Type
    • Backplanes (gold finger)
    +12V
    • Max: 71.6A / Min: 0A (200Vac - 240Vac)
    • Max: 66.6A / Min: 0A (100Vac - 127Vac)
    +5Vsb
    • Max: 4A / Min: 0A
    Power Distributor
    • PDB-PT116-SL8824
    • O/P: 12V/80
    • +5V Max: 25A
    • +3.3V Max: 25A
    • -12V Max: 0.6A
    Certification
    • Platinum Certified
    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • CE/EMC
    • UL/CB
    • UL/CUL

    Standard Part List

    Part Number Quantity Description
    HD Backplane
    BPN-SAS3-113A-N218-port 1U SAS3 12Gbps Hybrid backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3 Storage Devices
    Cable(s)
    CBL-CDAT-0680-551NCSI,2x10F to 2x10F,IDC,PH2.54,55cm,shield,28AWG,RoHS
    CBL-PWCD-0160-IS2PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
    Part(s)
    MCP-120-00116-0N2Blank FH L-bracket with 4x4 vent holes
    MCP-230-00060-0N11U AWIO top cover with 1 mylar for CSE-LB13, LB16 AW
    MCP-240-00175-0N2S-AIOM Dummy Cover for 1U chassis
    MCP-240-00177-0N2S-AIOM metal cage for 1U chassis
    MCP-240-00179-0N11U X12 AWIO Riser card bracket (Left) for LA15,LB16,LB13 AW
    MCP-240-00180-0N11U X12 AWIO Riser card bracket (Right) for LA15,LB16,LB13 AW
    MCP-290-00173-0N1SC119 Intrusion assembly upgraded version (with 3rd mounting screw hole) (cable length: 47mm)
    MCP-270-11304-0N11U chassis base for CSE-LB13 AWIO, Redundant PWS
    MCP-320-00067-0B1Chassis base Air Foam block set (L+R) for Cloud-DC
    MCP-160-00028-0B1Mylar Cable Channel for Cloud-DC, X12 DDW
    Fan(s)
    FAN-0101L4440x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808
    Front Panel
    FPB-FP1121Front control board for SC113,113M (U/C share
    Cooling Fan & Accessory
    MCP-320-00056-0B2440X56 rubber fan pin for SC819U, SC119U,RoHS/REACH
    MCP-320-00066-0B1Fan holder with cable channel, 40X56mm fan, for LA15,LB16,LB13
    MCP-340-00035-0B2Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
    Drive Tray(s)
    MCP-220-00188-0B8Black gen-5.5 tool-less cost-effective 2.5
    Power Distributor
    PDB-PT116-SL88241Based on PDB-PT116-L8824 to optimize 24Pin etc cable lengths
    Power Supply & Accessory
    MCP-250-00009-0N1SC113 Redundant Power Distributor Cover
    PWS-860P-1R221U 860W, Redundant power supply, 54.5mm width, Platinum with
    Mounting Rail(s)
    MCP-290-00016-0N11U open rack bracket set for CSE-PT51L,MCP-290-00054-0N
    MCP-290-00063-0N1setRail set, quick/quick, default for 1U 17.2"W for SC113/SC116,RoHS/REACH
    Rear Window
    MCP-240-00173-0N11U X12 AWIO Rear window for LA15,LB16,LB13 Redundant PWS

    Optional Part List

    Part Number Quantity Description
    Cable
    CDM-SATA-mini-SATA to SATA adapter for slim DVD
    CBL-0179L-SATA CABLE 70CM FLAT STRAIGHT-STRAIGHT PBF
    Chassis parts
    MCP-290-00088-0N-SC119 Intrusion assembly
    DVD-ROM / DVD-RW
    DVM-TEAC-DVD-SBT5-BLACK TEAC SLIM DVD SATA DRIVE,HF,RoHS
    Front USB
    MCP-220-00087-0B-Black USB tray for slim DVD bay
    Rail
    MCP-290-00056-0N-Quick-release outer rail for square hole short-depth rack (19"~26.4")
    MCP-290-00102-0N-Outer rail, quick-release type, 25.6" to 33.05"
    MCP-290-00063-0N-Rail set, quick/quick, default for 1U 17.2"W for SC113/SC116,RoHS/REACH
