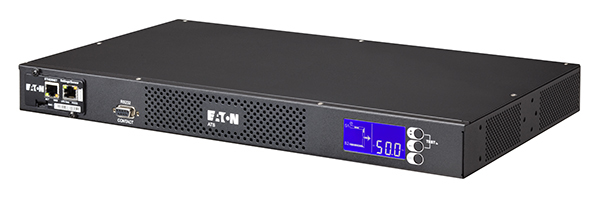

Eaton ATS 16N

SKU: EATS16N
Brand: Eaton
https://safeconsulting.no/web/image/product.template/13758/image_1920?unique=6e0a78f

kr 11,722.82 11722.82 NOK kr 11,722.82 VAT Excluded

kr 11,722.82 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    Eaton ATS16N. Input operation voltage (min): 208 V, Input operation voltage (max): 240 V, Input frequency: 50/60 Hz. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 9 AC outlet(s). Form factor: Rackmount, Product colour: Black, Rack capacity: 1U. Certification: IEC/EN 62310-1, IEC/EN 60950-1, IEC/EN 62310-2, CE. Safety: IEC/EN 62310-1, IEC/EN 60950-1

    Key Features

    • Affordable power redundancy solution
    • Automatic transfer switch functionality
    • Supports multiple devices simultaneously
    • Compact 1U rack form factor
    • Seamless power source switching

    Key Applications

    • Power redundancy for IT equipment
    • Networking equipment like switches and routers

    Description

    The Eaton ATS offers an affordable solution for customers willing to add power redundancy to networking equipment like switches and routers. This automatic transfer switch will power them from 2 different sources. Should one power source fail, the alternate one will switch over with no interruption to the connected equipment. Eaton ATS can be connected to multiple devices at the same time while saving the cost of expensive redundant power supplies.

    Features
    - Provides power redundancy to IT equipment
    - Alternative to expensive redundant power supplies available from networking equipment vendors
    - Compact, 1U rack form factor
    - Seamlessly switches from one power source to the other
    - Network management on ATS 30 and ATS 16 Netpack versions
    - LCD with metering and basic configuration capabilities

    Product Specifications

    Specification Details
    Features
    Input operation voltage (min)
    • 208
    Input operation voltage (max)
    • 240
    Input frequency
    • 50/60
    Output frequency
    • 50/60
    Maximum current
    • 16
    Response time
    • 8
    Number of input phases
    • 1
    Number of output phases
    • 1
    Web-based management
    • Yes
    Ports & interfaces
    AC outlet types
    • C13 coupler,C19 coupler
    Power plug
    • C20 coupler
    AC outlets quantity
    • 9
    Number of output IEC jumpers
    • 8
    Ethernet LAN (RJ-45) ports
    • 1
    Design
    Form factor
    • Rackmount
    Rack capacity
    • 1U
    Product colour
    • Black
    Display type
    • LED
    LED indicators
    • Yes
    Certificates
    Certification
    • IEC/EN 62310-1, IEC/EN 60950-1, IEC/EN 62310-2, CE
    Packaging content
    Rack mount kit
    • Yes
    Safety regulation & standards
    Safety
    • IEC/EN 62310-1, IEC/EN 60950-1
    Weight & dimensions
    Width
    • 440
    Depth
    • 250
    Height
    • 43
    Weight
    • 3500
    Logistics data
    Harmonized System (HS) code
    • 85078000
    Other features
    Number of phases
    • 1
    Nominal input voltage
    • 230
    Mounting
    • Horizontal
