Engenius ECS1552FP Cloud Managed Switch

SKU:

ECS1552FP

kr 7,086.56 7086.56 NOK kr 7,086.56

kr 7,086.56

This combination does not exist.

ADD TO CART

Terms and Conditions

Summary Description

EnGenius CloudSwitch L2Plus 48 Full PoE. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 32000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3at, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Key Features

Managed L2 Web-based management SNMP v1/v2c/v3
Quality of Service (QoS) support Configuring Location Settings (CLI)
Basic switching RJ-45 Ethernet ports quantity: 48
10G support 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
MAC address table: 32000 entries Switching capacity: 176 Gbit/s Multicast forwarding
Access Control List (ACL)
1U Rack mounting
Power supply included Power over Ethernet (PoE)

Key Applications

Small and Medium Businesses (SMBs)
Enterprise Network Management
Voice and Video Traffic Optimization
Cloud-based Network Management

Description

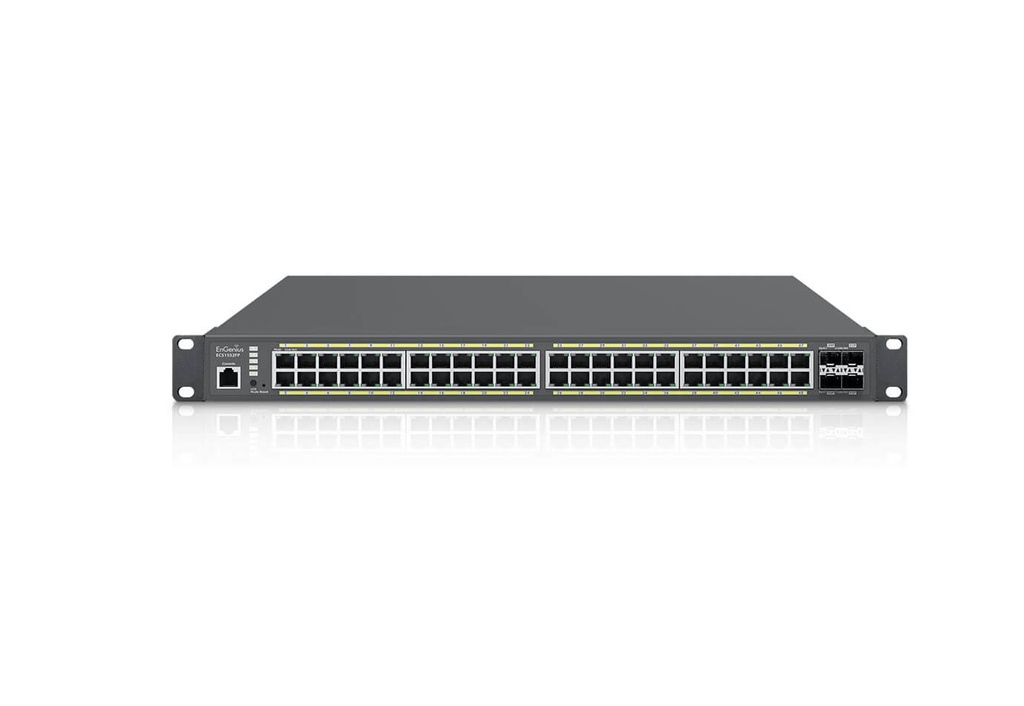

EnGenius Cloud Managed Layer 2+ Switch ECS1552FP offers 48 Gigabit PoE+ ports, 4 10G SFP+ uplink ports, and a 740W budget, ideal for SMBs. It supports zero-touch provisioning and centralized cloud management. With advanced security features, Voice-VLAN, and PoE Extended Mode, it optimizes network efficiency for quality voice and video traffic, enabling peak performance for SMBs

Product Specifications

Specification	Details
Management features
Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
ARP inspection	Yes
Configuring Location Settings (CLI)	Yes
System event log	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	48
SFP+ module slots quantity	4
Network
Networking standards	IEEE 802.1D,IEEE 802.1Q,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3at,IEEE 802.3az,IEEE 802.3x,IEEE 802.3z
10G support	Yes
Copper ethernet cabling technology	10BASE-T,10GBASE-T,100BASE-TX,1000BASE-T
Full duplex	Yes
Flow control support	Yes
Link aggregation	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Port-based VLAN,Protocol-based VLAN,Tagged VLAN,Voice VLAN
Data transmission
Switching capacity	176
MAC address table	32000
Number of queues	8
Static route	Yes
Number of static routes	63
Number of IP interfaces	20
Jumbo frames support	Yes
Jumbo frames	9000
Security
DHCP features	DHCP relay,DHCP snooping
Access Control List (ACL)	Yes
IGMP snooping	Yes
Security algorithms	802.1x RADIUS,SSH,SSL/TLS
Authentication	Port-based authentication
Authentication type	IEEE 802.1x,RADIUS
Queue scheduling algorithms	Strict Priority Queue (SPQ),SP,WRR+SP,Weighted Round Robin (WRR)
Multicast features
Multicast support	Yes
Multicast features	Multicast forwarding
Number of multicast groups filtered	256
Multicast Listener Discovery (MLD) snooping	v1
Protocols
Management protocols	SNMP v1/v2c/v3
Design
Rack mounting	Yes
Form factor	1U
Product colour	Black
LED indicators	Yes
Performance
Internal memory	512
Flash memory	128
Firmware upgradeable	Yes
Power
Power supply included	Yes
Redundant power supply (RPS) support	No
Number of power supply units	1
AC input voltage	100 - 240
AC input frequency	50 - 60
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	48
Total Power over Ethernet (PoE) budget	740
Operational conditions
Operating temperature (T-T)	0 - 50
Operating relative humidity (H-H)	5 - 95
Weight & dimensions
Width	440
Depth	310
Height	44
Weight	5900
Packaging content
Cables included	AC
Quick start guide	Yes
Rack mount kit	Yes
Logistics data
Harmonized System (HS) code	85176990
