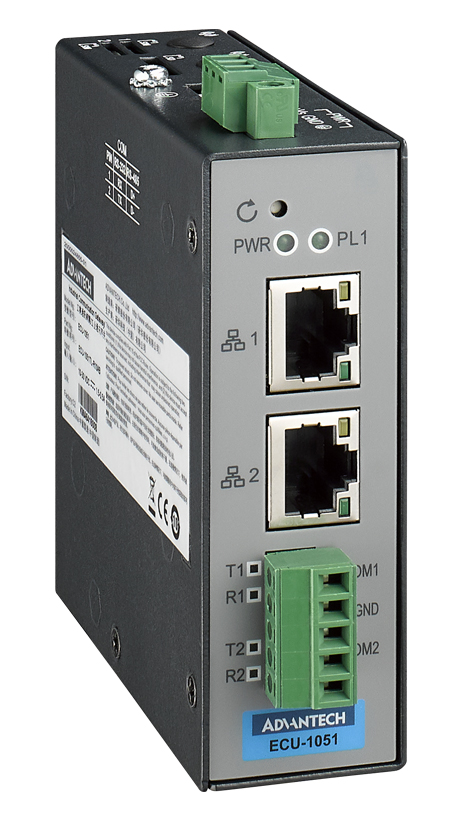

A8 600MHz,2xLAN,2xCOM,Dual SIM slots w/EdgeLink

SKU: ECU-1051TL-R10AAE
GTIN (EAN/UPC): 4719879822489
Brand: Advantech
https://safeconsulting.no/web/image/product.template/12920/image_1920?unique=35ab79b

kr 2,628.07 2628.07 NOK kr 2,628.07 VAT Excluded

kr 2,628.07 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Summary Description

    The ECU-1051TL-R10AAE is an IoT Gateway device featuring a TI Cortex A8 600MHz CPU and DDR3L 256MB RAM. It supports dual LAN ports and SIM slots with built-in EdgeLink technology for reliable communication.

    Key Features

    • A8 600MHz Processor
    • Dual LAN Ports
    • Dual SIM Slots
    • Wide Temperature Range
    • Remote Monitoring Support

    Key Applications

    • IoT Gateways & Devices
    • Remote Monitoring
    • Edge Intelligence
    • Industrial Automation
    • Data Logging

    Description

    Designed for industrial applications, the ECU-1051TL-R10AAE offers robust performance with its TI Cortex A8 600MHz CPU, 256MB DDR3L RAM, and versatile connectivity options. It supports web service for remote monitoring, firmware updates via SD card, and a wide operating temperature range to ensure durability in harsh environments.

    Product Specifications

    Specification Details
    General
    Grounding Protection
    • Chassis Grounding
    Programming Language
    • Linux C
    Protocol
    • OPC-UA Client & Server
    • DNP3.0 Client & Server
    • IEC-60870-5-104 Master & Slave
    • Modbus RTU/TCP Master & Slave
    • BACNet/IP Server
    Hardware
    Certification
    • CE, FCC class A
    CPU
    • TI Cortex A8, 600MHz
    Expansion
    • 1 x Full-size mPCIe Slot
    LED Indicators
    • PWR, RUN / ERROR, TX1, RX1, TX2, RX2, Program
    Memory
    • DDR3L 256MB
    OS Support
    • Linux
    Power Input
    • 10~30 VDC
    Storage
    • 1 x 512MB NAND Flash
    Watchdog Timer
    • 15~255 s
    Ethernet
    Speed
    • 10/100 Mbps
    Serial Communication
    Baud Rate (bps)
    • 50 bps~115.2 kbps
    Data Signals
    • RS-232: TxD, RxD, GND
    • RS-485: Data+, Data-
    I/O Interface
    Expansion
    • 1 x Full-size mPCIe Slot
    LAN Ports
    • 2 x 10/100 Mbps
    Power Connector
    • 1 x 3-Pin Terminal Block
    Serial Ports
    • 2 x RS-232/485 (Terminal Block)
    Environment
    Operating Temperature
    • -40~70 °C (-40~158 °F)
    Relative Humidity
    • 5~95% RH (non-condensing)
    Storage Temperature
    • -40~85 °C (-40~185 °F)
    Expansion Function
    Interface
    • 1 x Full-size mini PCIe 2.0
    SIM card slot
    • Nano SIM card
    Power Requirements
    Input Voltage
    • 10~30 VDC
    Mechanical
    Dimension (W x H x D)
    • 92 x 30 x 93 mm
    Enclosure
    • SECC
    Form Factor
    • Passive Cooling and Front Accessible
    Mounting
    • Wall, DIN-rail
    Wireless Communication
    Standard (Technology)
    • WIFI, LTE
