  2. EnGenius ECW230 - Indoor AP

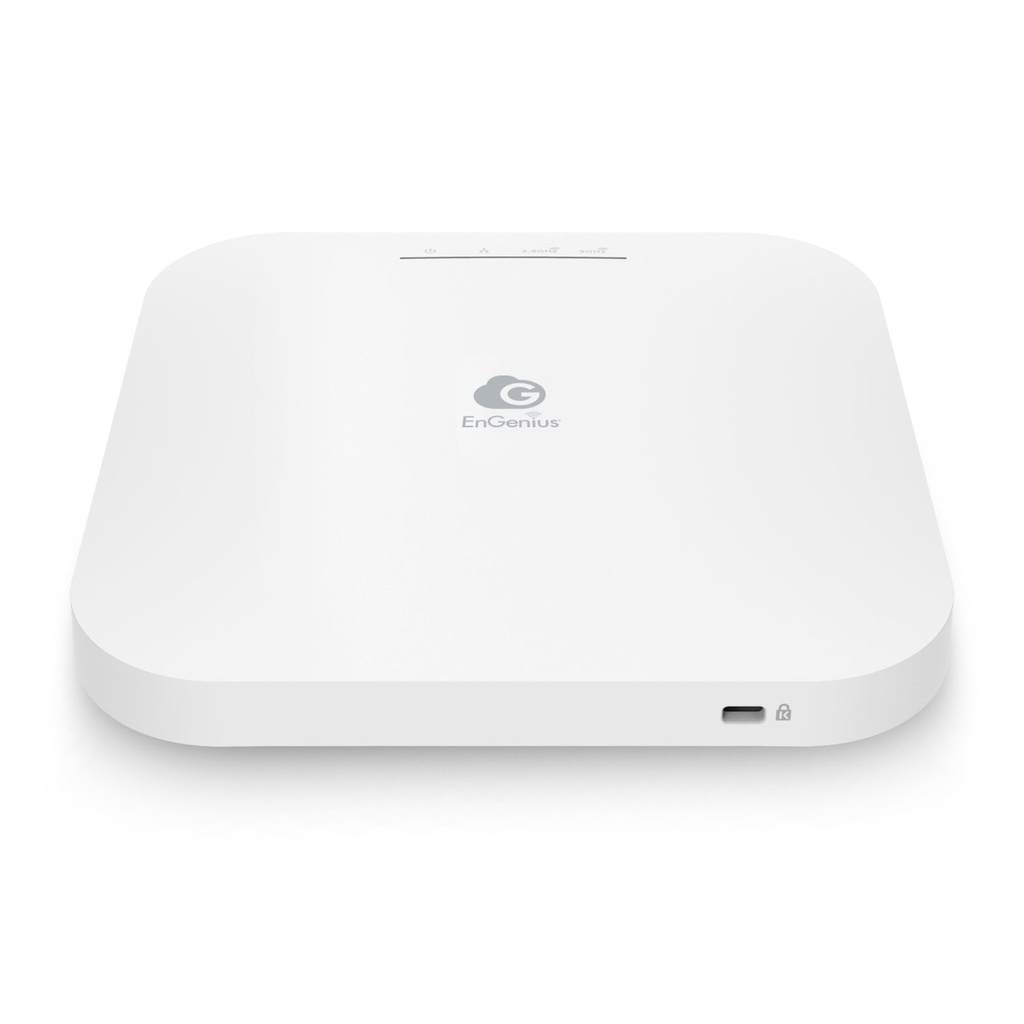

EnGenius ECW230 - Indoor AP

ECW230
https://safeconsulting.no/web/image/product.template/13427/image_1920?unique=eb1756f

kr 2,957.85 2957.85 NOK kr 2,957.85

kr 2,957.85

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The EnGenius Cloud Managed ECW230 is a versatile wireless access point featuring the latest 802.11ax technology. It provides high-density support and maximizes speeds up to 1,148 Mbps on the 2.4 GHz band and 2,400 Mbps on the 5 GHz band. The low-profile device ensures seamless connectivity in various environments.

    Key Features

    • Dual concurrent 802.11ax architecture
    • Supports up to 2,400 Mbps on 5GHz
    • High efficiency and throughput
    • Integrated Omni-Directional Antenna
    • Power-over-Ethernet: 802.3at Input
    • 256-QAM supported on 2.4GHz
    • Tx Beamforming
    • Supports OFDMA and MU-MIMO
    • Up to 512 concurrent users per radio
    • Comprehensive security protocols

    Key Applications

    • Enterprise Networking
    • Educational Institutions
    • Hospitality Services
    • Managed Network Service
    • Multi-Dwelling Units
    • Campgrounds
    • Grocery Stores

    Description

    Experience the advancements in Wi-Fi technology with the ECW230 Cloud Managed Access Point. Designed for high-performance wireless coverage, it supports Dual 4x4 architecture and is backward-compatible with existing devices. The ECW230 is equipped with advanced features like MU-MIMO and Target Wake Time for optimal client and IoT device performance.

    Product Specifications

    Specification Details
    Technical Specifications
    Standards
    • IEEE 802.11ax on 2.4 GHz
    • IEEE 802.11ax on 5 GHz
    • Backward compatible with 802.11a/b/g/n/ac
    • IEEE 802.3 u/ab
    Processor
    • Qualcomm® Quad-Core ARM Cortex A53s @ 2.0GHz CPU
    Antenna
    • 4 x 2.4 GHz: 5 dBi
    • 4 x 5 GHz: 6 dBi
    • Integrated Omni-Directional Antenna
    Physical Interface
    • 1 x 2.5GE Port (PoE+)
    • 1 x DC Jack
    • 1 x Reset Button
    LED Indicators
    • 1 x Power
    • 1 x LAN
    • 1 x 2.4 GHz
    • 1 x 5 GHz
    Power Source
    • Power-over-Ethernet: 802.3at Input
    • 12VDC /2A
    Maximum Power Consumption
    • 19.5W
    Wireless & Radio Specifications
    Operating Frequency
    • Dual-Radio Concurrent 2.4 GHz & 5 GHz
    Operation Modes
    • AP
    • Mesh
    Frequency Radio
    • 2.4 GHz: 2400 MHz ~ 2482 MHz
    • 5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
    Transmit Power
    • Up to 23 dBm on 2.4 GHz
    • Up to 23 dBm on 5 GHz
    Radio Chains/Spatial Stream
    • 4x4:4
    MU-MIMO
    • Four (4) spatial streams Multiple (MU)-MIMO for up to 2400 Mbps wireless data rate to transmit to two streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously.
    Supported Data Rates802.11ax:
    • 2.4 GHz: 9 to 1148 (MCS0 to MCS11, NSS = 1 to 4)
    • 5 GHz: 18 to 2400 (MCS0 to MSC11, NSS = 1 to 4)

    802.11ac:
    • 6.5 to 1733 Mbps (MCS0 to MCS9, NSS = 1 to 4)

    Channelization
    • 802.11ax supports high efficiency (HE) —HE 20/40/80 MHz
    • 802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
    • 802.11n supports high throughput (HT) —HT 20/40 MHz
    Max Concurrent User
    • 512 Per radio
    Client Balancing
    • Yes
    Auto Channel Selection
    • Yes
    Management
    Multiple BSSID
    • 8 SSIDs for both 2.4GHz and 5GHz radios.
    VLAN Tagging
    • Supports 802.1q SSID-to-VLAN Tagging
    • Cross-Band VLAN Pass-Through
    • Management VLAN
    QoS (Quality of Service)
    • Compliance With IEEE 802.11e Standard
    • WMM
    Fast Roaming
    • 802.11r/k
    Wireless Security
    • WPA2-PSK
    • WPA2-Enterprise
    • WPA3-PSK
    • WPA3-Enterprise
    Local Web Access
    • Supports HTTP or HTTPS
    Environmental & Physical
    Temperature Range
    • Operating: 32ºF~104ºF (0ºC~40ºC)
    • Storage: -40ºF~176 ºF (-40ºC~80ºC)
    Humidity (non-condensing)
    • Operating: 90% or less
    • Storage: 90% or less
    Device Dimensions & Weights
    ECW230 DeviceWeight:
    • 1.31 lbs. (597 g)

    Length:
    • 8.27" (210 mm)

    Width:
    • 8.27" (210 mm)

    Height:
    • 1.31" (33.2 mm)

    PackagingWeight:
    • 1.96 lbs. (891 g)

    Length:
    • 9.65" (245 mm)

    Width:
    • 9.65" (245 mm)

    Height:
    • 3.35" (85 mm)
