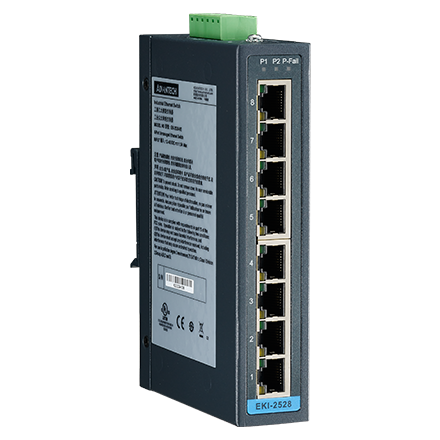

8-port 10/100Mbps Unmanaged Ethernet switch

SKU: EKI-2528-BE
GTIN (EAN/UPC): 4719879822663
Brand: Advantech
https://safeconsulting.no/web/image/product.template/12925/image_1920?unique=a170b45

kr 1,308.12 1308.1200000000001 NOK kr 1,308.12 VAT Excluded

kr 1,308.12 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Summary Description

    The EKI-2528-BE is an 8-port unmanaged Ethernet switch offering Auto MDI/MDI-X, 10/100Mbps auto-negotiation, and robust protection features ideal for industrial networks.

    Key Features

    • 8 Fast Ethernet ports with Auto MDI/MDI-X
    • 10/100Mbps Auto Negotiation
    • Broadcast storm protection
    • 4,000 VDC Ethernet ESD protection
    • 3000 VDC surge protection for power line
    • Compact size with DIN-rail/Wallmount, and IP30 metal mechanism
    • Redundant 12 ~ 48 VDC power input and P-Fail relay
    • Operating temperatures from -10 to 60°C

    Description

    EKI-2528-BE provides broadcast storm protection, surge protection, and redundant power inputs. It supports a wide temperature range, IP30-rated metal housing, and is suitable for DIN-rail or wall mounting.

    Product Specifications

    Specification Details
    General
    Ethernet Port Count
    • 8
    Mounting
    • DIN, Panel
    Power
    • 12-48VDC
    Technology
    • Ethernet
    Temperature
    • -10 to 60C
    Unmanaged
    • Yes
    Power
    Power Connector Type
    • 6-pin removable screw terminal
    Power Consumption
    • 4.71W
    Power Input (DC)
    • 12 ~ 48 VDC
    Redundant Dual Inputs
    • Yes
    Protection
    Overload Current
    • Present
    Reverse Polarity
    • Present
    Environment
    Operating Temperature
    • -10 ~ 60°C (14 ~ 140°F)
    Storage Temperature
    • -40 ~ 85°C (-40 ~ 185°F)
    Temperature (Max. Operating)
    • 60°C (140°F)
    Temperature (Min. Operating)
    • -10°C (14°F)
    Mechanism
    Dimensions (W x H x D)
    • 30 x 140 x 95 mm (1.18' x 5.51' x 3.74 in.)
    IP Rating
    • IP30
    Mounting (DIN-rail)
    • Yes
    Mounting (Wall)
    • Yes
    Ethernet Communication
    RJ-45 Port Connector Type
    • RJ-45
    RJ-45 Port Number
    • 8
    RJ-45 Transmission Distance
    • 100 m
    RJ-45 Transmission Speed
    • 10/100 Mbps
    Certification
    EMI
    • CE, FCC Class A
    EMS
    • EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8
    Safety
    • UL 60950-1
    Warranty
    Warranty Period
    • 5 years
    PoE Information
    Support PoE
    • No
