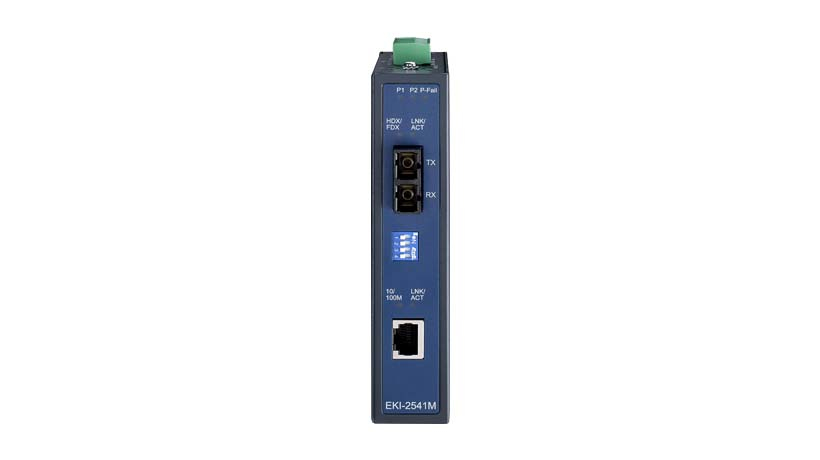

Ethernet to Multi mode Fiber Media converter

• 1 x 10/100 Mbps Ethernet port with RJ45
• 1 x 100 Mbps Multi-mode SC fiber port
• Redundant 12 ~ 48 VDC power input
• Supports full/half duplex flow control
• Operational temperature -10 to 60°C

• Fiber-to-building conversions
• Data transmission in harsh environments
• Telecommunications central offices
• Industrial network expansion
• Long-distance data transmission

The EKI-2541M/2541S are designed to transparently convert Ethernet networks to fiber networks. The advantages of fiber optics are the wide bandwidth, EMI immunity, and longdistance transmission. Therefore, the EKI-2541M/2541S are ideal for fiber-to-building applications at central offices or local sites. These converters support MDI/MDIX auto detection,
thus eliminating the need to use crossover wires. Furthermore, they can operate normally at temperatures of -10 ~ 60°C and they accept a wide voltage range of 12 ~ 48 VDC. They
also feature 3,000 VDC surge protection (EFT) against overvoltage, making them highly suitable for harsh operating environments. The EKI-2541M/2541S are enhanced Ethernet
to fiber-optic converters. Aside from their standard features, these versatile converters also feature link fault pass-through. Typically, when one side of the link fails, the other side
continues transmitting packets and waiting for a response that never arrives from the disconnected side. However, the EKI-2541M/2541S will force the link to shut down as soon as
the link failure is detected, thus giving the application software a chance to correct the problem
