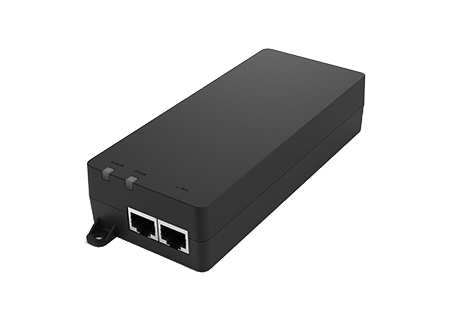

EnGenius Gigabit PoE Injector

SKU: EPA5090GBT
GTIN (EAN/UPC): 4713361936128
Brand: EnGenius
https://safeconsulting.no/web/image/product.template/13635/image_1920?unique=9e4f689

kr 953.18 953.1800000000001 NOK kr 953.18 VAT Excluded

kr 953.18 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    EnGenius 90W 802.3 bt/at/af Gigabit Power-over-Ethernet Adapter. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt. Product colour: Black, LED indicators: Power, Pin assignment & polarity: Pin4(Vdc+)&Pin5(Vdc+); Pin7(Vdc-)&Pin8(Vdc-); Pin1(Rx+)&Pin2(Rx-); Pin3(Tx+)&Pin6(Tx-). Power over Ethernet (PoE) voltage: 54 V, Output power: 90 W, Input voltage: 100 - 240 V. Compliance certificates: CB, CE, Federal Communications Commission (FCC), UL. Width: 150 mm, Depth: 65 mm, Height: 34 mm

    Key Features

    • 10,100,1000 Mbit/s
    • IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
    • Black

    Key Applications

    • High-Power Network Devices
    • Media Servers
    • Thin Clients
    • POS Systems
    • Healthcare Equipment
    • Intelligent Lighting
    • PTZ Cameras
    • All-In-One PCs
    • Remote Signage
    • Surveillance Systems

    Description

    The EPA5090GBT IEEE 802.3bt standard Power-over-Ethernet adapter supports high-speed data and up to 90 Watts/54V of power to compliant devices such asnetwork devices that need a higher power to work normally to 100 meters away over a single cable. It is designed specifically to meet the demand for growing higher power required network equipment as big power AP, media server, thin client, POS system, health care, Lighting, PTZ speed dome camera, all-in-one touch PC, remote digital signage display. A compact, optimal port design provides easy, precise installation, while built-in power surge protection preserves valuable equipment.

    Product Specifications

    Specification Details
    Network
    Ethernet interface type
    • Gigabit Ethernet
    Ethernet LAN data rates
    • 10,100,1000
    Networking standards
    • IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
    Features
    Product colour
    • Black
    Wall mountable
    • Yes
    LED indicators
    • Power
    Pin assignment & polarity
    • Pin4(Vdc+)&Pin5(Vdc+); Pin7(Vdc-)&Pin8(Vdc-); Pin1(Rx+)&Pin2(Rx-); Pin3(Tx+)&Pin6(Tx-)
    Power protection features
    • Over current,Over voltage,Short circuit
    Power
    Power over Ethernet (PoE) voltage
    • 54
    Output power
    • 90
    Input voltage
    • 100 - 240
    Input frequency
    • 50 - 60
    Input current
    • 0.95A @ 120V, AC 0.5A @ 240V AC
    Surge protection voltage
    • 4
    Certificates
    Compliance certificates
    • CB,CE,Federal Communications Commission (FCC),UL
    Operational conditions
    Operating temperature (T-T)
    • 0 - 40
    Storage temperature (T-T)
    • -20 - 70
    Weight & dimensions
    Width
    • 150
    Depth
    • 65
    Height
    • 34
    Weight
    • 210
    Logistics data
    Warranty period
    • 1
