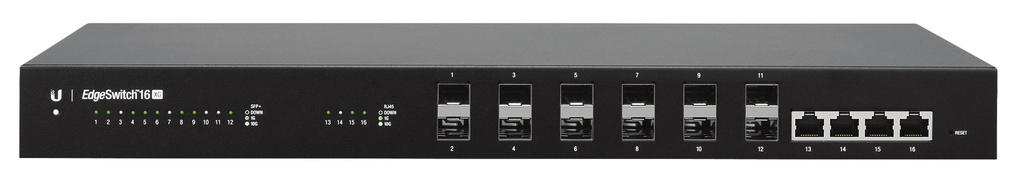

Ubiquiti EdgeSwitch 10Gbit 16 Port

• Managed Web-based management
• Quality of Service (QoS) support
• Basic switching RJ-45 Ethernet ports quantity: 4 Console port: RJ-45
• 10G support 10BASE-T, 10GBASE-T, 100BASE-T, 1000BASE-T
• MAC address table: 8000 entries Switching capacity: 320 Gbit/s
• Access Control List (ACL)
• 1U Rack mounting
• Power supply included

• Data Center Networking
• Enterprise Networks
• Cloud Services
• High-Capacity Link Aggregation
• Virtual LAN Environments

10G 16-Port Managed Aggregation Switch

Available with sixteen 10G ports, the high-performance EdgeSwitch™ enhances network capacity and provides high-bandwidth services to growing networks.

10G High-Capacity Links

The EdgeSwitch features 12 SFP+ ports and four RJ45 10GBASE-T ports to efficiently deliver and aggregate data at 10G speeds.

Powerful Switching Performance

The EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non‑blocking throughput, the EdgeSwitch supports up to 160 Gbps.

Advanced Enterprise Switching

The EdgeSwitch uses a sophisticated operating system that provides advanced switching features, including VLAN tagging and link aggregation, and limited layer-3 features, including static routing and DHCP server functionality.
