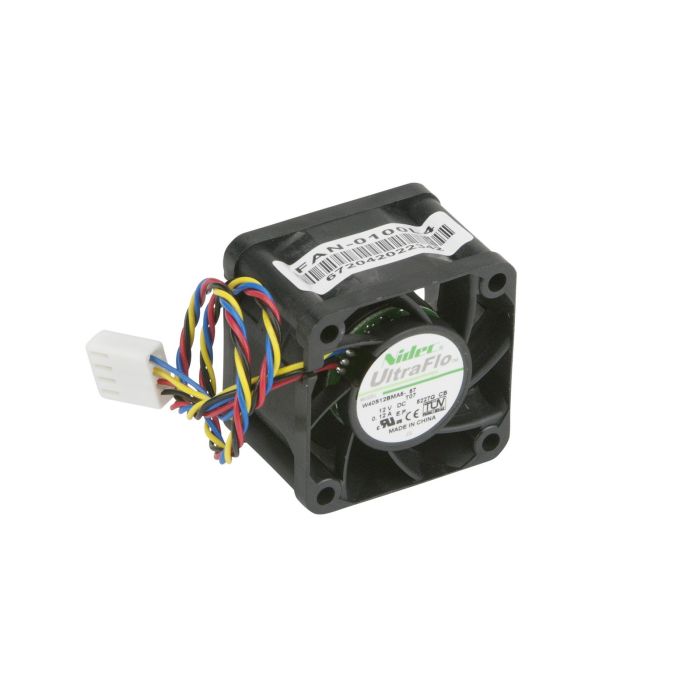

40X28MM 4-PIN PWM FAN FOR SC510 & SC511
FAN-0100L4
Summary Description
Supermicro's 40mm Axial Fan (FAN-0100L4) is engineered for compatibility with several Supermicro chassis, including the CSE-111, CSE-119TS, CSE-505, CSE-510, and CSE-819TS series. This fan, made by Nidec, operates at a speed of 8,500 RPM and has been tested for peak performance and quality assurance. It offers a maximum airflow rate of 12 CFM and an acoustic noise level of 34 dBA, ensuring effective and quiet cooling. Additionally, the fan meets RoHS and REACH compliance standards.
Key Features
- RoHS and REACH compliant
- Acoustic Noise Level: 34 dBA
- Compatible with CSE-111, CSE-119TS, CSE-505, CSE-510, and CSE-819TS Series Chassis
- Supermicro Certified
- Rated Fan Speed: 8500 RPM
- Nidec Axial Fan - 40 x 40 x 28mm
- Fan Speed: 8,500 RPM
- Maximum Airflow Rate: 12 CFM
Key Applications
- SC510
- SC511
- CSE-111
- CSE-119TS
- CSE-505
- CSE-510
- CSE-819TS
Description
Nidec (W40S12BMA5-57T07) FAN-0100L4 is a standard fan for CSE-111, CSE-119TS, CSE-505, CSE-510, and CSE-819TS series chassis. This fan has been fully tested and validated by Supermicro to ensure the best quality and cooling performance.
Product Specifications
| Specification | Details |
|---|---|
| General | |
| Brand |
|
| Fan Size |
|
| Rated Fan Speed |
|
| Acoustic Noise Level |
|
| Maximum Airflow Rate |
|
| Rate Current (A) |
|
| Connector |
|
| Dimensions |
|
| Search Terms |
|
| Warranty |
|
| Product Environmental Compliance |
|
