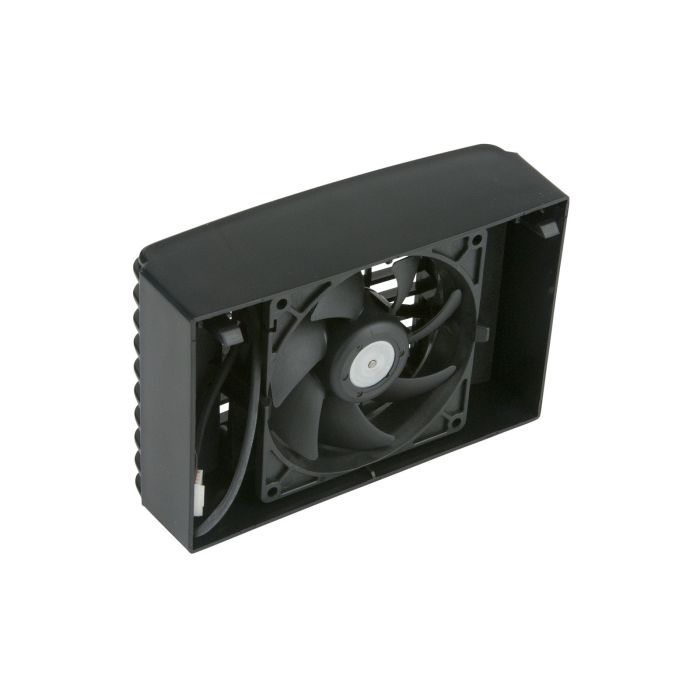

92X25MM 4-PIN PWM FAN W/ HUS FOR SC743

FAN-0103L4
https://safeconsulting.no/web/image/product.template/3746/image_1920?unique=a6ebd58

kr 226.69 226.69 NOK kr 226.69 VAT Excluded

kr 226.69 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Summary Description

    The Supermicro 92mm Exhaust Axial Fan (FAN-0103L4) is engineered by Nidec and has been fully tested and validated to ensure quality and cooling performance. With a speed of 2400 RPM and a noise level of 25 dBA, this fan is compatible with multiple Supermicro chassis series. It delivers an airflow rate of 40 CFM and is RoHS and REACH compliant.

    Key Features

    • RoHS and REACH compliant
    • Maximum Airflow Rate: 40 CFM
    • Fan Speed: 2,400 RPM
    • Compatible with CSE-743l and CSE-745TS Series Chassis
    • Supermicro Certified
    • Acoustic Noise Level: 25 dBA
    • Rated Fan Speed: 2400 RPM
    • Nidec Axial Fan - 92 x 92 x 25mm

    Key Applications

    • SC743 (SQ Rear)

    Description

    Nidec (T92T12MHA7-57T071) FAN-0103L4 is a standard fan for CSE-743L and CSE-745TS series chassis. This fan has been fully tested and validated by Supermicro to ensure the best quality and cooling performance.

    Product Specifications

    Specification Details
    General
    Brand
    • Nidec
    Fan Size
    • 92mm
    Rated Fan Speed
    • 2400 RPM
    Acoustic Noise Level
    • 25 dBA
    Maximum Airflow Rate
    • 40 CFM
    Rate Current (A)
    • 0.15A
    Connector
    • 4 Pin
    Dimensions
    • 92L x 92H x 25W (mm)
    Search Terms
    • B8-09225ANI-005C004, T92T12MHA7-57T071
    Warranty
    • 1 year warranty
    Product Environmental Compliance
    • RoHS and REACH compliant, details available upon request
    Validated Chassis
    • CSE-743AC-1200B-SQ, CSE-743AC4-1200B-SQ, CSE-743TQ-865B-SQ, CSE-743TQ-1200B-SQ
