80x80x38 mm, 8.2K RPM, PWM Fan for 748

FAN-0116L4
https://safeconsulting.no/web/image/product.template/11998/image_1920?unique=a415753

kr 249.08 249.08 NOK kr 249.08

kr 249.08

Not Available For Sale

    This combination does not exist.

    Summary Description

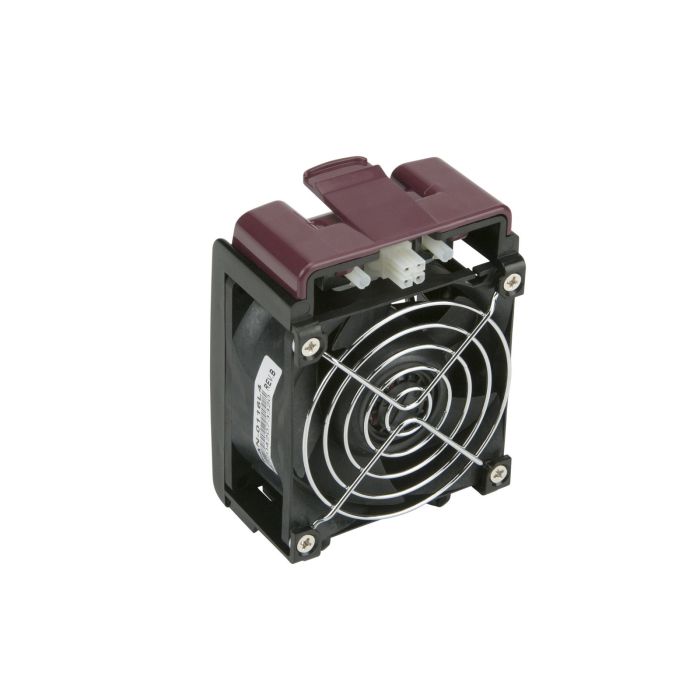

    The Supermicro 80mm Hot-Swappable Exhaust Axial Fan (FAN-0116L4) is designed to provide superior cooling performance for Supermicro chassis models. This Nidec axial fan operates at a speed of 8,200 RPM and has been fully tested and validated by Supermicro to ensure reliable performance and quality. It is compatible with CSE-747BTS and CSE-748TS series chassis, providing a maximum airflow rate of 85.5 CFM and an acoustic noise level of 57.5 dBA. Additionally, this fan is RoHS and REACH compliant, ensuring environmental safety.

    Key Features

    • Nidec Axial Fan - 80 x 80 x 38mm
    • Compatible with CSE-747BTS and CSE-748TS Series Chassis
    • Fully Tested and Validated by Supermicro
    • Fan Speed: 8,200 RPM
    • RoHS and REACH Compliant
    • 4 Pin Connector
    • Maximum Airflow Rate: 85.5 CFM
    • Supermicro Certified
    • Acoustic Noise Level: 57.5 dBA
    • Excellent Cooling Performance

    Key Applications

    • SC748TQ-R1400 (Rear)

    Description

    Nidec (V80E12BS1A5-57T07A1) FAN-0116L4 is a standard fan for CSE-747BTS and CSE-748TS series chassis. This fan has been fully tested and validated by Supermicro to ensure the best quality and cooling performance.

    Product Specifications

    Specification Details
    General
    Brand
    • Nidec
    Fan Size
    • 80mm
    Rated Fan Speed
    • 8200 RPM
    Acoustic Noise Level
    • 57.5 dBA
    Maximum Airflow Rate
    • 85.5 CFM
    Rated Current (A)
    • 0.9A
    Connector
    • 4 Pin
    Dimensions
    • 80L x 80H x 38W (mm)
    Search Terms
    • A8-08038ANI-015C001, B8-08038ANI-024C002, V80E12BS1A5-57T07A1
    Warranty
    • 1 year warranty
    Product Environmental Compliance
    • RoHS and REACH compliant, details available upon request
    Validated Chassis
    • CSE-747BTQ-R1K62B, CSE-748TQ-R1400B
