80x80x38 mm 7K RPM Chassis Middle Fan W/ Housing

FAN-0126L4
https://safeconsulting.no/web/image/product.template/3765/image_1920?unique=4175d88

kr 240.38 240.38 NOK kr 240.38

kr 240.38

Not Available For Sale

    This combination does not exist.

    Summary Description

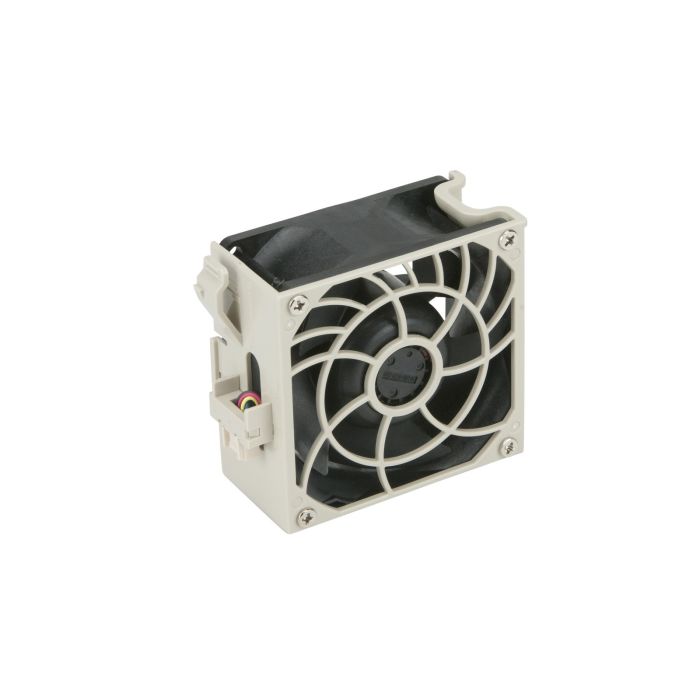

    The Supermicro FAN-0126L4 is designed for general 2U and 3U series chassis. This 80 x 80 x 38mm axial fan is Supermicro Certified and operates at a fan speed of 7,000 RPM. With a maximum airflow rate of 72.5 CFM and an acoustic noise level of 53.5 dBA, the fan guarantees efficient and quiet cooling. It's RoHS and REACH compliant, ensuring environmental safety.

    Key Features

    • RoHS and REACH compliant
    • Maximum Airflow Rate: 72.5 CFM
    • 80 x 80 x 38mm Axial Fan
    • Brand: Nidec
    • 4 Pin Connector
    • Supermicro Certified
    • Fan Speed: 7,000 RPM
    • Rated Current: 0.6A
    • Acoustic Noise Level: 53.5 dBA
    • Compatible with General 2U and 3U Series Chassis

    Key Applications

    • SC825
    • SC826

    Description

    Supermicro FAN-0126L4 is a standard fan for general 2U and 3U series chassis. This fan has been fully tested and validated by Supermicro to ensure the best quality and cooling performance.

    Product Specifications

    Specification Details
    General
    Brand
    • Nidec
    Fan Size
    • 80mm
    Rated Fan Speed
    • 7000 RPM
    Acoustic Noise Level
    • 53.5 dBA
    Maximum Airflow Rate
    • 72.5 CFM
    Rate Current (A)
    • 0.6A
    Connector
    • 4 Pin
    Dimensions
    • 80L x 80H x 38W (mm)
    Search Terms
    • A8-08038ANI-021C001, B8-08038ANI-031C002, V80E12BHA5-57T07A2
    Warranty
    • 1 year warranty
    Product Environmental Compliance
    • RoHS and REACH compliant, details available upon request
    Validated Chassis
    • CSE-213A-R720LPB, CSE-213A-R740LPB, CSE-213A-R740WB, CSE-213A-R900LPB, CSE-213A-R900UB, CSE-213AC-R920LPB, CSE-213AC-R920WB, CSE-213LT-563LPB, CSE-213LT-563UB, CSE-213LT-600LPB, CSE-213LTQ-R720LPB, CSE-213LTQ-R720UB, CSE-216A-R900LPB, CSE-216A-R900UB, CSE-216BA-R1K28LPB, CSE-216BA-R1K28WB, CSE-216BA-R920LPB, CSE-216BA-R920UB, CSE-216BA-R920WB, CSE-216BAC-R920LPB, CSE-216BE1C-R741JBOD, CSE-216BE1C-R920LPB, CSE-216BE1C-R920WB, CSE-216BE2C-R741JBOD, CSE-216BE2C-R920LPB, CSE-216BE2C-R920WB, CSE-216BE16-R1K28LPB, CSE-216BE16-R1K28WB, CSE-216BE16-R920LPB, CSE-216BE16-R920WB, CSE-216BE26-R1K28LPB, CSE-216BE26-R1K28WB, CSE-216BE26-R920LPB, CSE-216BE26-R920UB, CSE-216BE26-R920WB, CSE-216E16-R1010LPB, CSE-216E26-R1200LPB, CSE-219A-R920LPB, CSE-219A-R920UB, CSE-219A-R920WB, CSE-417BE1C-R1K23JBOD, CSE-417BE1C-R1K28LPB, CSE-417BE1C-R1K28WB, CSE-417BE2C-R1K23JBOD, CSE-417BE2C-R1K28WB, CSE-417E16-R1400LPB, CSE-417E26-R1400LPB, CSE-418E16-R1K62B, CSE-418E16-R1K62B2, CSE-523L-410B, CSE-523L-505B, CSE-823TQ-653LPB, CSE-825TQ-563LPB, CSE-825TQ-563UB, CSE-825TQ-600LPB, CSE-825TQ-600WB, CSE-825TQ-710LPB, CSE-825TQ-R500WB, CSE-825TQ-R700LPB, CSE-825TQ-R720LPB, CSE-825TQ-R720UB, CSE-825TQ-R740LPB, CSE-825TQ-R740UB, CSE-825TQ-R740WB, CSE-825TQC-600LPB, CSE-825TQC-600WB, CSE-825TQC-R740LPB, CSE-825TQC-R740WB, CSE-826BA-R1K28LPB, CSE-826BA-R1K28WB, CSE-826BA-R920LPB, CSE-826BA-R920UB, CSE-826BA-R920WB, CSE-826BAC4-R920LPB, CSE-826BAC4-R920WB, CSE-826BE1C-R741JBOD, CSE-826BE1C-R920LPB, CSE-826BE1C-R920WB, CSE-826BE2C-R920LPB, CSE-826BE2C-R920WB, CSE-826BE16-R1K28LPB, CSE-826BE16-R1K28WB, CSE-826BE16-R920UB, CSE-826BE16-R920WB, CSE-826BE26-R1K28LPB, CSE-826BE26-R1K28WB, CSE-826BE26-R920LPB, CSE-826BE26-R920UB, CSE-826BE26-R920WB, CSE-826E16-R500LPB, CSE-826E16-R1200LPB, CSE-826TQ-R500LPB, CSE-826TQ-R800LPB, CSE-829TQ-R920UB, CSE-835TQ-R800B, CSE-835TQ-R920B, CSE-835TQ-R921B, CSE-835TQC-R1K03B, CSE-835TQC-R802B, CSE-836A-R1200B, CSE-836BA-R1K28B, CSE-836BA-R920B, CSE-836BE1C-R1K03B, CSE-836BE1C-R1K03JBOD, CSE-836BE2C-R1K03B, CSE-836BE2C-R1K03JBOD, CSE-836BE16-R1K28B, CSE-836BE16-R920B, CSE-836BE26-R1K28B, CSE-836BE26-R920B, CSE-836E16-R500B, CSE-836E16-R1200B, CSE-836E26-R1200B, CSE-836TQ-R500B, CSE-836TQ-R800B, CSE-847A-R1400LPB, CSE-847BA-R1K28LPB, CSE-847BE1C-R1K28LPB, CSE-847BE1C-R1K28WB, CSE-847BE2C-R1K28LPB, CSE-847BE2C-R1K28WB, CSE-847E1C-R1K28JBOD, CSE-847E2C-R1K28JBOD, CSE-847E16-R1K28JBOD, CSE-847E16-R1K28LPB, CSE-847E16-R1K28WB, CSE-847E16-R1400LPB, CSE-847E16-R1400UB, CSE-847E16-RJBOD1, CSE-847E26-R1K28JBOD, CSE-847E26-R1K28LPB, CSE-847E26-R1K28WB, CSE-847E26-R1400LPB, CSE-847E26-RJBOD1, CSE-848A-R1K62B, CSE-848E16-R1K62B
