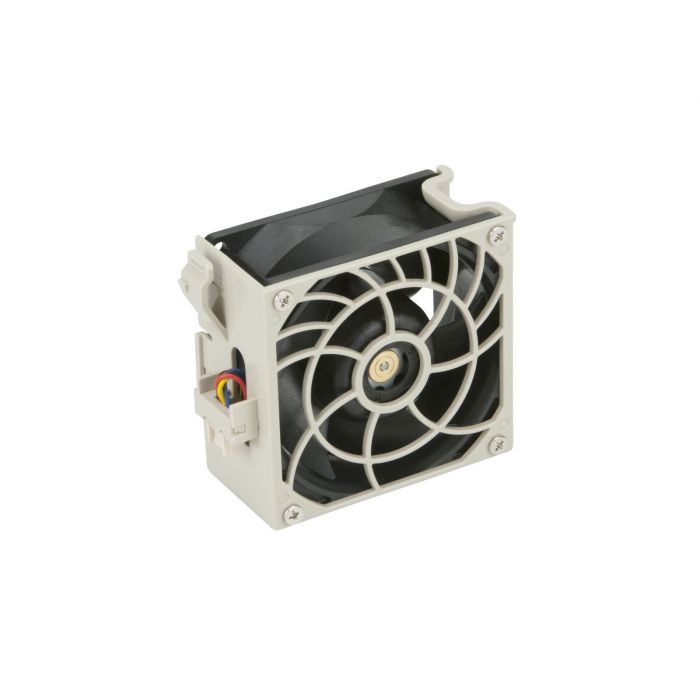

80x80x38 mm, 10.5K RPM, Optional Middle Cooling Fan for X10

FAN-0158L4
https://safeconsulting.no/web/image/product.template/12012/image_1920?unique=5e77b27

kr 307.45 307.45 NOK kr 307.45

kr 307.45

Not Available For Sale

    This combination does not exist.

    Summary Description

    The Supermicro 80mm Hot-Swappable Middle Axial Fan (FAN-0158L4) features a Sanyo Denki Axial Fan measuring 80 x 80 x 38mm with a fan speed of 10,500 RPM. Ideal for 2U Ultra Series Chassis, this fan has been fully tested and validated by Supermicro for top-tier quality and cooling performance. It offers low power consumption, a high airflow rate of 100.6 CFM, and maintains an Acoustic Noise Level of 60 dBA. Additionally, the product is RoHS and REACH compliant and comes with a 1-year warranty.

    Key Features

    • Maximum Airflow Rate: 100.6 CFM
    • RoHS and REACH compliant
    • Fully tested and validated by Supermicro
    • Low power consumption
    • 60 dBA Acoustic Noise Level
    • Supermicro Certified
    • Compatible with 2U Ultra Series Chassis
    • 1 year warranty
    • Sanyo Denki Axial Fan - 80 x 80 x 38mm
    • Fan Speed: 10,500 RPM

    Key Applications

    • 2U Ultra Series Chassis
    • High-performance cooling solutions
    • Low power consumption applications
    • Environments requiring RoHS and REACH compliance

    Description

    Sanyo Denki (9GA0812P1G691) FAN-0158L4 is a low power consumption optional fan for 2U Ultra series chassis. This fan has been fully tested and validated by Supermicro to ensure the best quality and cooling performance.

    Product Specifications

    Specification Details
    General
    Brand
    • Sanyo Denki
    Fan Size
    • 80mm
    Rated Fan Speed
    • 10500 RPM
    Acoustic Noise Level
    • 60 dBA
    Maximum Airflow Rate
    • 100.6 CFM
    Rate Current (A)
    • 1.2A
    Connector
    • 4 Pin
    Dimensions
    • 80L x 80H x 38W (mm)
    Search Terms
    • B8-08038ASA-026T001, A8-08038ASA-010T001, 9GA0812P1G691
    Warranty
    • 1 year warranty
    Product Environmental Compliance
    • RoHS and REACH compliant, details available upon request
    Validated Chassis
    • CSE-216BAC4-R1K23LPB, CSE-216BE1C4-R1K23LPB, CSE-826BAC4-R1K23LPB, CSE-826BAC4-R1K23WB, CSE-826BE1C4-R1K23LPB, CSE-829HE1C4-R1K62LPB, CSE-836BE1C-R1K23B, CSE-847BE1C4-R1K23LPB
