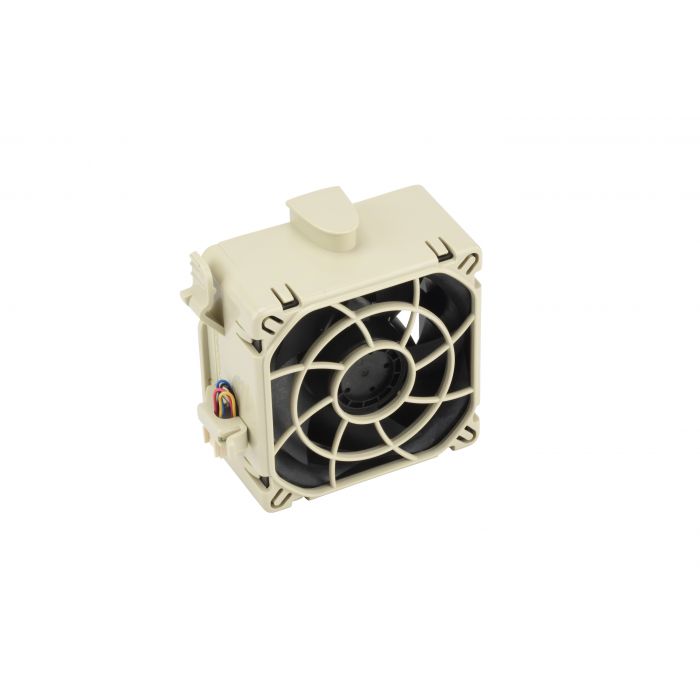

80x80x38 mm, 9.4K RPM, Hot-swappable Middle Cooling Fan for
FAN-0182L4
Summary Description
The Supermicro 80mm Hot-Swappable Middle Axial Fan (FAN-0182L4) is a reliable solution for SC743, SC745, and SC745B chassis. With a fan speed of 9,400 RPM and an acoustic noise level of 62.0 dBA, this axial fan provides efficient cooling. It has been fully tested and validated by Supermicro and is compliant with RoHS and REACH standards. Additional features include a 4 Pin connector and a maximum airflow rate of 103.1 CFM.
Key Features
- Maximum Airflow Rate: 103.1 CFM
- RoHS and REACH compliant
- Connector: 4 Pin
- 80 x 80 x 38mm Axial Fan
- Supermicro Certified
- Acoustic Noise Level: 62.0 dBA
- Rate Current: 1.23A
- Validated Chassis: CSE-745BAC-R1K28B2
- Fan Speed: 9,400 RPM
- Compatible with SC743, SC745, and SC745B
Key Applications
- SC743 chassis cooling
- SC745 chassis cooling
- SC745B chassis cooling
Description
Ablecom (B8-08038ADE-007T001) FAN-0182L4 9,400rpm is a standard middle fan for SC743, SC745, and SC745B intended to support X11 Purley platform with TDP up to 205w. This fan has been fully tested and validated by Supermicro to ensure the best quality and cooling performance.
Product Specifications
| Specification | Details |
|---|---|
| General | |
| Brand |
|
| Fan Size |
|
| Rated Fan Speed |
|
| Acoustic Noise Level |
|
| Maximum Airflow Rate |
|
| Rate Current (A) |
|
| Connector |
|
| Dimensions |
|
| Warranty |
|
| Product Environmental Compliance |
|
| Validated Chassis |
|
