Summary Description
LinkIT OS2 Duplex fiber optic cable is ideal for single-mode applications, featuring LC connectors with UPC polish. Available in multiple colors and lengths, compliant with CE and RoHS standards.
Key Features
- OS2 Single-Mode Duplex
- 9/125 µm Core Diameter
- Low Insertion Loss: ≤0.3 dB
- LSZH Jacket
- Temperature Range: -40 to +75 °C
Key Applications
- Data Centers
- Telecommunication Networks
- Single-Mode Fiber Applications
- Long-Distance Signal Transmission
Description

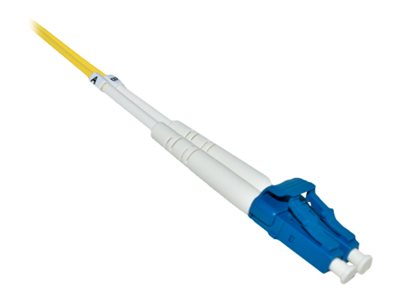

This OS2 Duplex fiber optic cable is available in multiple colors and lengths, featuring LC connectors with UPC polish on both ends. Designed for single-mode applications with a core diameter of 9/125 µm, it supports wavelengths of 1310/1550 nm. It has low insertion loss of ≤0.3 dB, an optical return loss of ≥55 dB, and a diameter of 2 mm. The LSZH jacket ensures fire-retardant and halogen-free properties, complying with IEC safety standards. It withstands temperatures from -40 to +75 °C with a bend radius of 20 mm and tensile strength of 150N. Certified according to CE and RoHS standards.
Product Specifications
| Specification | Details |
|---|---|
| General | |
| Product Description |
|
| Type |
|
| Technology |
|
| Fiber Optic Type |
|
| Length |
|
| Color |
|
| Features |
|
| Connectivity | |
| Connector |
|
| Connector (Other End) |
|
| Diverse | |
| Standards |
|
| Warranty | |
| Service and Support |
|
