Summary Description

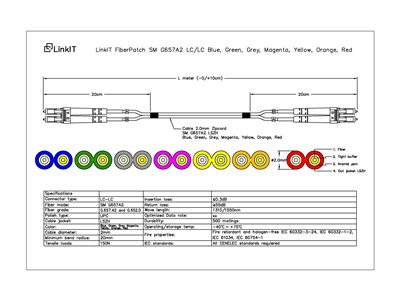

This 2m OS2 Duplex fiber cable features LC connectors with UPC polish on both ends, designed for singlemode applications supporting 1310/1550 nm wavelengths.
Key Features
- OS2 Duplex Fiber Cable
- LC/UPC Connectors
- Halogen-free LSZH Jacket
- Supports 1310/1550 nm Wavelengths
- CE & RoHS Certified
- Low Insertion Loss ≤0.3 dB
Key Applications
- Data Center Cabling
- Telecommunication Networks
- High-Speed Internet
- Fiber To The Home (FTTH)
- LAN/WAN Connections
- Singlemode Applications
Description
The LinkIT OS2 Duplex fiber optic cable is available in various colors and lengths, equipped with LC connectors and UPC polishing. Designed for singlemode applications, it supports wavelengths of 1310/1550 nm and boasts low insertion loss of ≤0.3 dB. With a 2mm diameter LSZH cover, it adheres to IEC standards for fire resistance and halogen-free properties. It withstands temperatures from -40 to +75 C with a bend radius of 20 mm and tensile strength of 150N, certified under CE and RoHS standards.
Product Specifications
| Specification | Details |
|---|---|
| General | |
| Product Description |
|
| Type |
|
| Technology |
|
| Fiber Optic Type |
|
| Features |
|
| Length |
|
| Core/Cladding Diameter |
|
| Color |
|
| Connectivity | |
| Connector |
|
| Connector (Other End) |
|
| Miscellaneous | |
| Compliant Standards |
|
