Summary Description

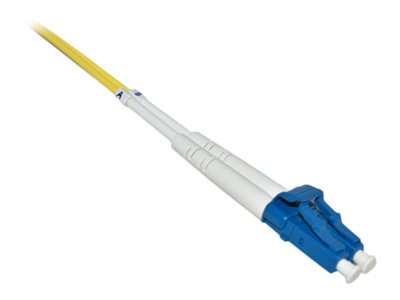

The LinkIT OS2 LC/LC 30m fiber optic cable features LC connectors with UPC polishing and is designed for singlemode operations. It provides a low insertion loss and a high return loss, complying with IEC safety standards.
Key Features
- Low Insertion Loss ≤0.3 dB
- High Optical Return Loss ≥55 dB
- 9/125 µm Core Diameter
- LSZH Halogen-Free Jacket
- Operating Temperature Range -40 to +75°C
- G657A Cable for Low Bend Loss
Key Applications
- Telecommunications
- Data Center Connectivity
- Singlemode Networks
- Long Haul Networks
- High-Speed Data Transfers
Description
This OS2 fiber optic cable with a 9/125 micron core diameter supports 1310/1550 nm wavelengths and offers low insertion loss and excellent optical return loss. The 2mm diameter cable is covered in a halogen-free LSZH jacket, ensuring fire resistance. It withstands temperatures from -40 to +75°C and a bend radius of 20mm.
Product Specifications
| Specification | Details |
|---|---|
| Product Details | |
| Product Description |
|
| Type |
|
| Technology |
|
| Fiber Optic Type |
|
| Features |
|
| Length |
|
| Core/Cladding Diameter |
|
| Connection |
|
| Connection (Other End) |
|
| Color |
|
| Manufacturer Warranty |
|
| General | |
| Network Cable Type |
|
| Technology |
|
| Fiber Optical Type |
|
| Number of Fibers |
|
| Core/Cladding Diameter |
|
| Features |
|
| Length |
|
| Color |
|
| Connectivity | |
| Connector |
|
| Connector (Other End) |
|
| Miscellaneous | |
| Standards Compliance |
|
| Manufacturer Warranty | |
| Service & Support |
|
