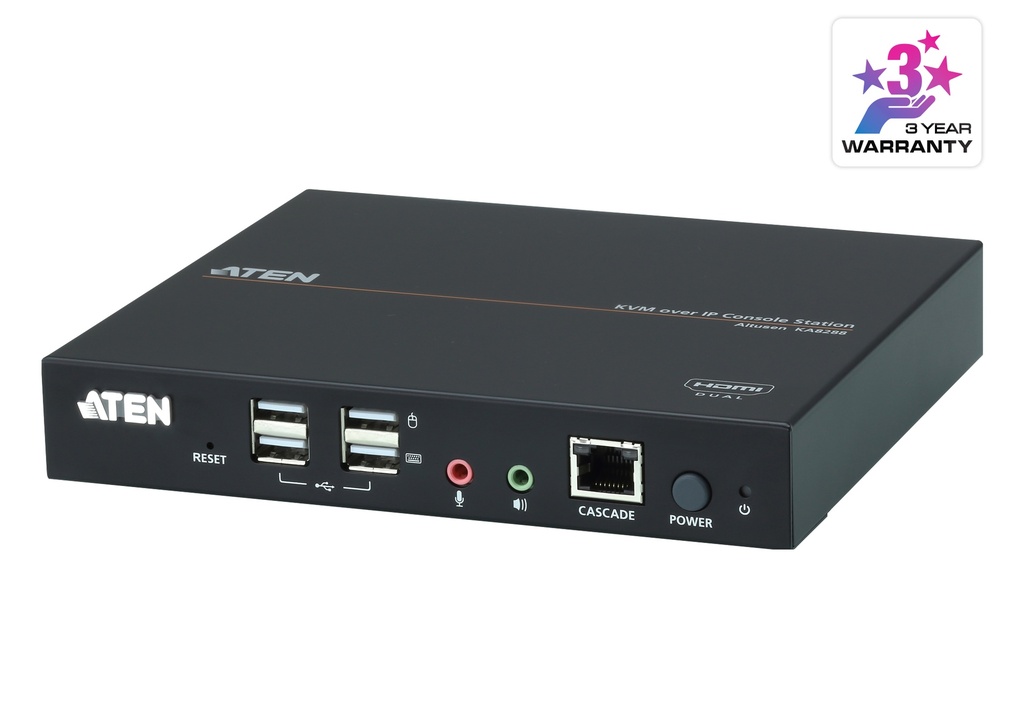

Aten HDMI KVM over IP Console Station

SKU: KA8288-AX-G
Brand: Aten
https://safeconsulting.no/web/image/product.template/13949/image_1920?unique=9d3b09e

kr 15,472.60 15472.6 NOK kr 15,472.60 VAT Excluded

kr 15,472.60 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    ATEN Dual HDMI KVM over IP Console Station. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: Full HD+, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal, LED indicators: Power. Power source: DC, Input voltage: 5.3 V, Power consumption (typical): 6.53 W. Compliance certificates: RoHS

    Key Features

    • Rack mounting Black
    • Keyboard port type: USB Mouse port type: USB Video port type: HDMI
    • Full HD+ 1920 x 1200 pixels
    • Housing material: Metal
    • DC 6.53 W

    Key Applications

    • Studios
    • Offices
    • Data Centers
    • Broadcast Stations
    • Control Rooms
    • Network Operations Centers (NOC)

    Description

    The KVM over IP Console Station KA8288 is a standalone console that replaces PC or NB, enabling users to remotely access, monitor and control all servers connected to multiple ATEN's KVM over IP switches* with impenetrable security against virus threats. It also supports various data encryption methods, ensuring impervious data protection. The KVM over IP Console Station can be deployed anywhere instant access is needed and stringent security required, ideal for applications such as studios, offices, data centers, broadcast stations, control rooms, or network operations centers (NOC).
    1x KA8288 Dual HDMI KVM over IP Console Station
    1x 0AD8-8005-40MG Power Adapter
    1x LIN2-418K-E12G Power Cord
    1x Mounting Kit
    4x Foot Pad
    1x User Instructions

    Product Specifications

    Specification Details
    Ports & interfaces
    Keyboard port type
    • USB
    Mouse port type
    • USB
    Video port type
    • HDMI
    HDMI ports quantity
    • 2
    USB connector type
    • USB Type-A
    Serial port type
    • DE-9 (DB-9)
    Serial ports quantity
    • 1
    Audio connections
    • Yes
    Headphone outputs
    • 1
    Number of microphone inputs
    • 1
    DC-in jack
    • Yes
    Network
    Ethernet LAN
    • Yes
    Ethernet LAN (RJ-45) ports
    • 1
    Performance
    HD type
    • Full HD+
    Maximum resolution
    • 1920 x 1200
    Video bandwidth
    • 60
    Design
    Rack mounting
    • Yes
    Product colour
    • Black
    Housing material
    • Metal
    LED indicators
    • Power
    Push button
    • Yes
    Display
    Built-in display
    • No
    Power
    Power source
    • DC
    Input voltage
    • 5.3
    Power consumption (typical)
    • 6.53
    Sustainability
    Compliance certificates
    • RoHS
    Operational conditions
    Operating temperature (T-T)
    • 0 - 40
    Storage temperature (T-T)
    • -20 - 60
    Operating relative humidity (H-H)
    • 0 - 80
    Weight & dimensions
    Width
    • 155.4
    Depth
    • 174.2
    Height
    • 28.8
    Weight
    • 1290
    Packaging data
    Package width
    • 98
    Package depth
    • 325
    Package height
    • 210
    Package weight
    • 1490
    Packaging content
    Cables included
    • AC
    Manual
    • Yes
    AC adapter included
    • Yes
    Logistics data
    Master (outer) case net weight
    • 6450
    Harmonized System (HS) code
    • 85176200
    Master (outer) case width
    • 342
    Master (outer) case length
    • 512
    Master (outer) case height
    • 232
    Master (outer) case gross weight
    • 8190
    Products per master (outer) case
    • 5
