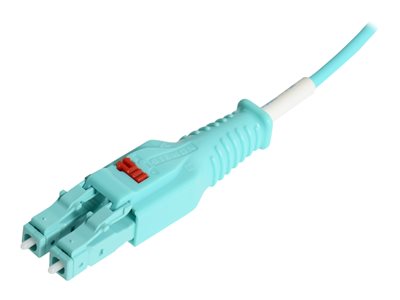

Siemon Fiber LC/LC push-pul OM4 Aqua 5m

LBP-LCLC5V-05AH
https://safeconsulting.no/web/image/product.template/14768/image_1920?unique=60c5762

kr 0.00 0.0 NOK kr 0.00 VAT Excluded

kr 0.00 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Summary Description

    The Siemon XGLO BladePatch fiber cable with a 5-meter length offers enhanced safety and performance with its LSZH jacket, suitable for dense network environments. Supports high-speed data transfer using OM4 multimode fiber technology.

    Key Features

    • Halogen-Free Design
    • OM4 Multimode Optical Fiber
    • Innovative RFP Feature
    • Compact Push-Pull Boot
    • High-Speed Data Capability
    • Compliance with RoHS
    • LSOH Jacket for Safety

    Key Applications

    • Data Centers
    • Enterprise Networks
    • Telecom Infrastructure
    • Campus Networks
    • Cloud Services
    • Internet Service Providers
    • High-Speed Data Transmission

    Description

    The Siemon XGLO BladePatch cable is designed for maximum safety with a Low Smoke Zero Halogen jacket, ideal for network hubs. It employs duplex multimode fiber optics, ensuring high-speed data transfers compliant with OM4 standards. Its advanced features, including innovative design elements and compliance with industry standards, position it as a crucial component in high-performance networks.

    Product Specifications

    Specification Details
    General
    Product Description
    • Siemon XGLO BladePatch Network Cable - 5 m - Aqua
    Type
    • Patch Cable - OM4
    Technology
    • Duplex Fiber Optic
    Fiber Optic Type
    • Multimode
    Features
    • Halogen-Free
    • Uniboot Design
    • Low Profile Boot
    • Rotating Snap Lock
    • Reverse Fiber Position (RFP)
    • 850/1300 nm Wavelength
    • Push-Pull Boot
    Length
    • 5 m
    Core/Cladding Diameter
    • 50/125 microns
    Color
    • Aqua
    Connectivity
    Connector
    • 2 x LC Multimode
    Connector (Other End)
    • 2 x LC Multimode
    Compliance
    Standards
    • RoHS
    • IEC 61754-20
    • GR-326-CORE
    • IEC 60332-3C
    • TIA/EIA-492 AAAD
    • IEC 60793-2-10 Category A1a.3
    • TIA-604-10
    • ISO/IEC 11801-1
    • ANSI/TIA-568.3-D
    • IEC 61753 Category C
