Summary Description
The LinkIT AOC SFP+ cable is designed for high-performance Ethernet networks, featuring a reliable 850nm VCSEL laser transmitter and a maximal link length of 150m on OM3 MMF.
Key Features
- Up to 10.3125Gbps Data Links
- 850nm VCSEL Laser Transmitter
- Maximum Link Length of 150m on OM3 MMF
- Hot-pluggable SFP+ Footprint
- Power Consumption Less Than 1W
- RoHS Compliant and Lead-Free
- Support Digital Diagnostic Monitor Interface
- +3.3V Single Power Supply
- Operating Temperature 0°C to +70°C
Key Applications
- 10GBASE-SR Ethernet
Description

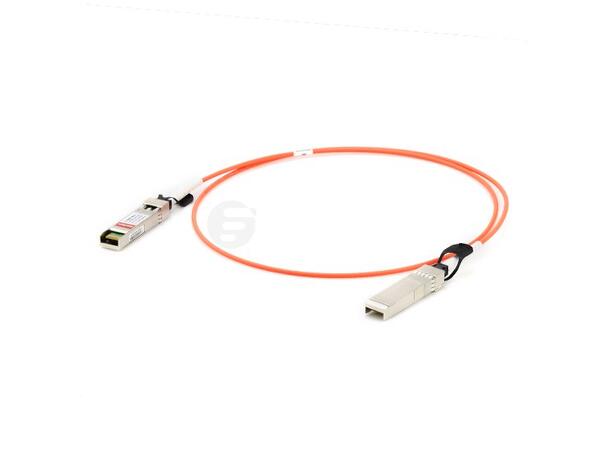

LinkIT AOC SFP+ 10Gbps 5m Cisco is a high-performance active optical cable. It offers up to 10.3125Gbps data links with an 850nm VCSEL laser transmitter. With its hot-pluggable SFP+ footprint and low power consumption under 1W, it supports the Digital Diagnostic Monitor interface. Compliant with SFP+ MSA, this cable is RoHS compliant and supports a +3.3V single power supply with an operating temperature range of 0°C to +70°C.
Product Specifications
| Specification | Details |
|---|---|
| General | |
| Koding |
|
| Lengde |
|
| Compliance | |
| Standards |
|
