Summary Description

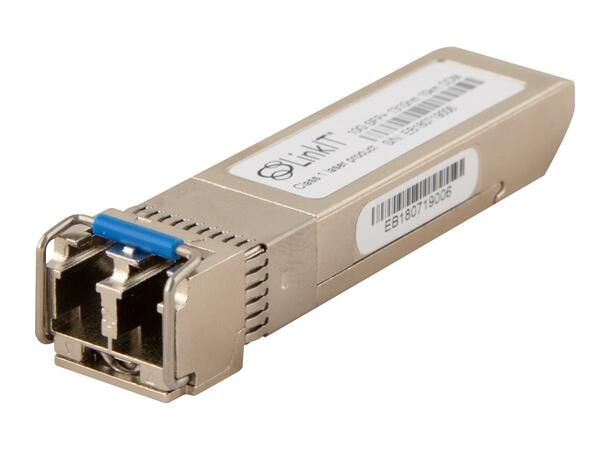

The LinkIT SFP+ module provides 10Gbps data rate, reaching up to 300 meters. It is compatible with Cisco and operates at 850nm in multi-mode.
Key Features
- Compliant to SFP+ MSA
- ROHS Compliant
- Superior EMI Performance
- Data Rate: 8.5Gbps to 10Gbps
- VCSEL 850nm Laser
- Up to 300m Reach
- Hot Pluggable Connector
- Low Power Consumption
Key Applications
- 10GBASE –SR
- 8.5G/10.5G/s Fiber Channel
Description
The LinkIT SFP+ 10Gbps SR 300m Cisco module features compliance with SFP+ MSA and supports data rates from 8.5Gbps to 10Gbps. This module includes a VCSEL 850nm Laser and operates with an LC duplex connector. Its all-metal housing ensures superior EMI performance, while consuming less than 1.0W power. Digital diagnostics is supported via SFF-8472 Rev 10.2 compliance.
Product Specifications
| Specification | Details |
|---|---|
| Features | |
| Koding |
|
| Compliance |
|
| Mechanical | Housing:
Temperature Range:
|
| Electrical | Power Supply:
Power Consumption:
|
