Summary Description

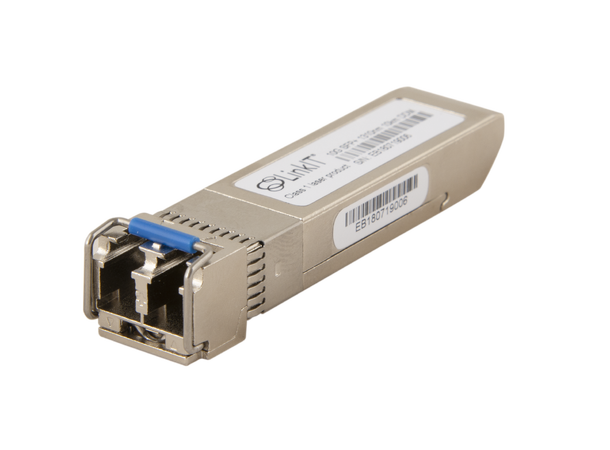

The LinkIT SFP+ 10Gbps SR module offers high-performance and reliable connectivity over multimode fiber, featuring a distance up to 300m, low power consumption, and a broad operating temperature range.
Key Features
- Compliant to SFP+ MSA
- Fully ROHS compliant
- All metal housing for superior EMI performance
- Operating data rate from 8.5Gbps to 10Gbps
- VCSEL 850nm Laser
- High sensitivity PIN photodiode and TIA
- Hot pluggable 20pin connector
- Low power consumption < 1.0W
- 0°C to 70°C operating temperature range
- Digital Diagnostic Monitoring compliant
Key Applications
- 10GBASE –SR
- 8.5G/10.5G/s Fiber Channel
Description
LinkIT SFP+ 10Gbps SR 300m module is designed for high-speed data transfer in professional environments. It is compliant with various industry standards, ensuring compatibility and performance. Features include a VCSEL 850nm laser, high sensitivity PIN photodiode, and hot pluggable 20-pin connector, making it ideal for 10GBASE-SR and 8.5G/10.5G/s Fiber Channel applications.
Product Specifications
| Specification | Details |
|---|---|
| Compliance | |
| IEEE 802.3ae |
|
| SFF-8431 |
|
| SFF-8472 |
|
| FC-PI-4 |
|
| Technical Details | |
| Operating Data Rate |
|
| Transmitter |
|
| Receiver |
|
| Connector |
|
| Power Consumption |
|
| Temperature Range |
|
| Power Supply |
|
