Summary Description
This module supports up to 53.125Gbps per channel using PAM4 modulation. It is compatible with the 400GAUI-8 interface and includes a DDM function with a single MPO16 connector.
Key Features
- Up to 53.125Gbps per channel
- PAM4 modulation
- 400GAUI-8 electrical interface
- Integrated 850nm VCSEL
- Digital Diagnostics Monitoring
Key Applications
- Data Center
- 400GE Interconnect Requirements
Description

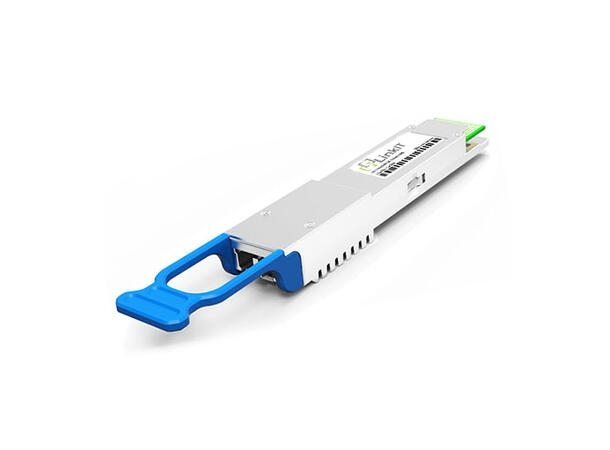

Featuring a hot-pluggable QSFP-DD form factor, this module integrates an 850nm VCSEL and PD array, and is powered by a +3.3V supply, with a max power consumption of 8W. It can reach up to 70m on MMFOM3 and 100m on MMFOM4 fibers, and complies with ROHS2.0 and IEEE 802.3cd standards.
Product Specifications
| Specification | Details |
|---|---|
| Optical Features | |
| Wavelength |
|
| Optical Interface |
|
| Performance | |
| Data Rate per Channel |
|
| Power Consumption |
|
| Standards Compliance | |
| Standards |
|
