Summary Description

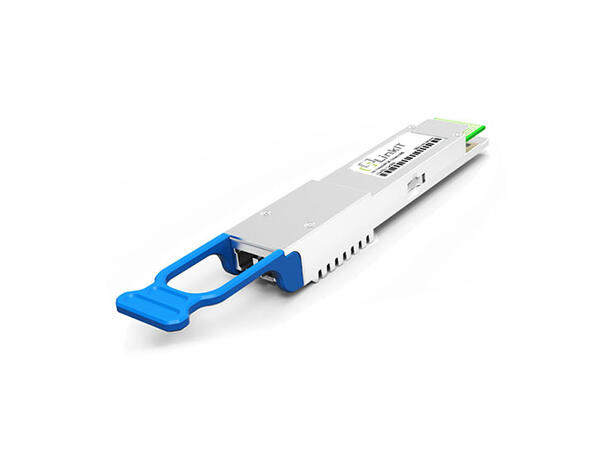

The LinkIT QSFP112 provides a data rate up to 53.125 Gbps per channel supporting 400GAUI-8 interface. Integrated with 850nm VCSEL and PD array, it offers a single MPO16 optical interface.
Key Features
- Up to 53.125Gbps per channel
- Support 400GAUI-8 interface
- Integrated 850nm VCSEL array
- Single MPO16 connector
- Hot-pluggable form factor
- Compliant with ROHS2.0
- Reach up to 100m on MMF
Key Applications
- Data Center
- 400GE Interconnect Requirements
Description
Featuring a 850nm VCSEL array and MPO/MTP-16 interface, the LinkIT QSFP112 supports high-speed data rates up to 53.125Gbps per channel by PAM4 modulation, compatible with 400GAUI-8. It includes a DDM function, is hot-pluggable, operates under 8W power, reaching 70m on OM3 and 100m on OM4 multimode fibers, compliant with IEEE 802.3cd, QSFP-DD MSA, CMIS4.0, and ROHS2.0 standards.
Product Specifications
| Specification | Details |
|---|---|
| Transmission | |
| Data Rate Per Channel |
|
| Interface | |
| Electrical |
|
| Optical |
|
| Functions | |
| Digital Diagnostics Monitoring |
|
| Hot Plug-ability |
|
| Power Supply | |
| Consumption |
|
| Voltage |
|
| Standards Compliance | |
| ROHS |
|
| Other Standards |
|
