LinkIT QSFP28 100Gbps SR4 100m Intel
LI-QSFP28MPO-SR4-INT
Summary Description

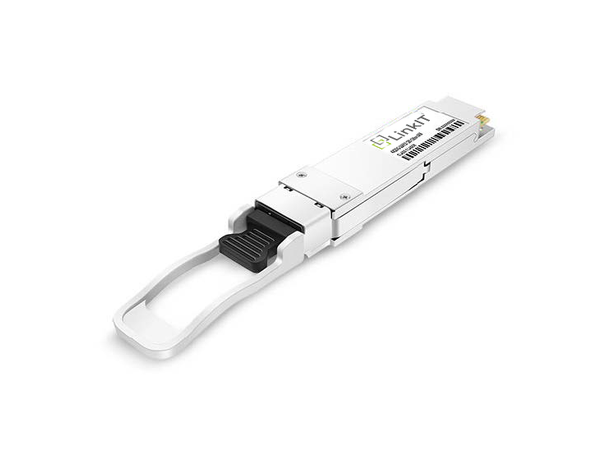

The LinkIT QSFP28 100Gbps SR4 transceiver module is designed for high-performance data communications and operates in a temperature range of 0°C to 70°C. It supports multiple protocols, including Ethernet and Infiniband, with a maximum link length of 100 meters over OM4 multimode fiber. The module features a 4x25Gbps transmitter based on 850nm VCSEL technology.
Key Features
- MPO-12 connector
- Supports Base-8 cabling
- Hot-pluggable
- 850 nm VCSEL
- Multi-Mode Fiber
- 4x TX and RX
Key Applications
- 100 Gigabit Ethernet
- 100 Gigabit Infiniband
Description
This QSFP28 transceiver module from LinkIT operates at 100Gbps, conforming to MSA specifications. It supports a range of interfaces, including Ethernet and Infiniband, making it ideal for data center and high-speed networking applications. It maintains performance over a 100 meter range with OM4 multimode fiber. Compatibility includes IEEE 802.3bm, QSFP28 MSA, SFF and more, ensuring versatile use.
Product Specifications
| Specification | Details |
|---|---|
| General Specifications | |
| Brand |
|
| Wave Length (nm) |
|
| Distance |
|
| Technical Specifications | |
| Transmission Speed |
|
| Fibre Type |
|
| Standards |
|
| Temperature |
|
| EAN |
|
| Certifications |
|
