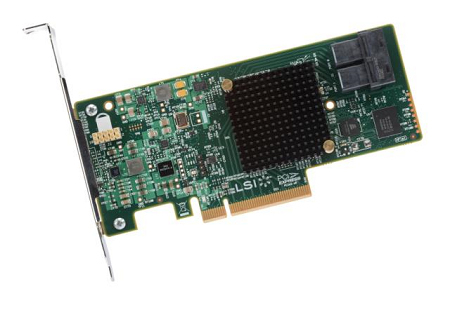

MegaRAID SAS 9341-4i SGL

LSI00419
https://safeconsulting.no/web/image/product.template/8687/image_1920?unique=b20187c

kr 2,604.34 2604.34 NOK kr 2,604.34

kr 2,604.34

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    Broadcom MegaRAID SAS 9341-4i. Supported storage drive interfaces: SAS, Serial ATA, Host interface: PCI Express x8. RAID levels: 0, 1, 5, 10, 50, JBOD, Data transfer rate: 12 Gbit/s, Mean time between failures (MTBF): 2800000 h. Voltage: 12 V, Power consumption (typical): 13 W. Width: 66 mm, Depth: 152.4 mm, Weight: 600 g. PCI Card form factor: Full-height (low-profile)

    Key Features

    • Supported storage drive interfaces: SAS, Serial ATA
    • Host interface: PCI Express x8
    • RAID levels: 0, 1, 5, 10, 50, JBOD
    • 12 Gbit/s
    • 2800000 h

    Key Applications

    • Small to Medium Business (SMB) Servers
    • Gaming Enthusiast Systems
    • RAID Storage Solutions
    • High-performance Computing
    • Data Centers
    • Network Attached Storage (NAS)
    • Backup and Recovery Servers
    • Workstations

    Description

    LSI MegaRAID SATA+SAS entry controller cards allow small to medium business (SMB) owners and gaming enthusiasts to enjoy the latest RAID technology at affordable prices with low power consumption. This product line delivers trusted MegaRAID reliability with minimal maintenance effort. MegaRAID entry controller cards offer users a straight-forward solution that includes essential RAID levels and uncomplicated configuration options.

    Product Specifications

    Specification Details
    Ports & interfaces
    Supported storage drive interfaces
    • SAS,Serial ATA
    Host interface
    • PCI Express x8
    PCI Express slots version
    • 3.0
    Internal SATA ports quantity
    • 4
    Performance
    RAID levels
    • 0,1,5,10,50,JBOD
    RAID Level Migration
    • Yes
    Data transfer rate
    • 12
    SSD support
    • No
    LED indicators
    • Yes
    S.M.A.R.T. support
    • Yes
    Online Capacity Expansion
    • Yes
    Mean time between failures (MTBF)
    • 2800000
    Certification
    • EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL f/ MIC; BSMI; C-tick
    Power
    Voltage
    • 12
    Power consumption (typical)
    • 13
    System requirements
    Windows operating systems supported
    • Yes
    Linux operating systems supported
    • Yes
    Operational conditions
    Operating temperature (T-T)
    • 0 - 70
    Storage temperature (T-T)
    • -40 - 105
    Operating relative humidity (H-H)
    • 5 - 90
    Storage relative humidity (H-H)
    • 5 - 90
    Weight & dimensions
    Width
    • 66
    Depth
    • 152.4
    Weight
    • 600
    Other features
    PCI Card form factor
    • Full-height (low-profile)
    PCI Express connector
    • Yes
    Quantity
    • 1
    Other operating systems supported
    • Yes
