  2. A2SAN-H, Embed 3.5"SBC,Apollo Lake Atom,4 Core,DDR3L-BUL

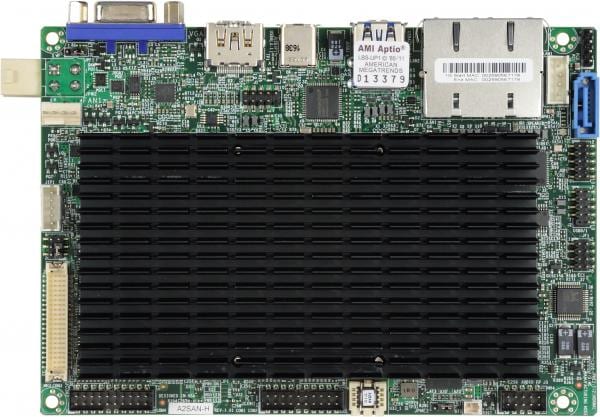

A2SAN-H, Embed 3.5"SBC,Apollo Lake Atom,4 Core,DDR3L-BUL

MBD-A2SAN-H-B
https://safeconsulting.no/web/image/product.template/10182/image_1920?unique=dfd9ff3

kr 2,414.43 2414.43 NOK kr 2,414.43

kr 2,414.43

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    Designed with an Intel® Atom E3940 processor, the Supermicro MBD-A2SAN-H delivers essential connectivity and functionality for a variety of industrial applications. It supports up to 8GB of DDR3L memory, multiple high-speed USB ports, and dual GbE LAN, ensuring reliable performance and robust networking capabilities.

    Key Features

    • Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket
    • Intel® Atom processor E3940 (9.5W, 4C)
    • 1 M.2 B-Key 2280, 1 Full size Mini-PCIe, 1 SATA 3.0
    • Dual GbE LAN with Intel® i210-AT
    • Intel® Goldmont microarchitecture 14nm System-on-Chip
    • 1 USB 3.1 Gen2 Type-C port, 2 USB 3.0 ports, 4 USB 2.0 ports, 4 COM ports, 1 SATA 3.0, 8-bit GPIO, SMBus
    • Supports 12V DC power input
    • 1 HDMI, 1 VGA, 1 48-bit LVDS, Intel® HD Graphic 3 independent displays
    • Supports on board TPM 2.0

    Key Applications

    • Industrial Automation
    • IoT Gateways
    • Digital Signage
    • Embedded Systems
    • Networking Devices

    Description

    The Supermicro MBD-A2SAN-H is a versatile 3.5" SBC equipped with an Intel® Atom processor E3940. It features up to 8GB DDR3L Non-ECC SO-DIMM, multiple USB ports, dual GbE LAN, HDMI, VGA, and LVDS ports, supporting three independent displays. Additionally, it offers one SATA 3.0, one M.2 B-Key 2280, and one full-size Mini-PCIe for extensive expandability. This motherboard is ideal for a range of applications requiring a robust and flexible industrial computing solution.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-A2SAN-H
    Physical Stats
    Form Factor
    • 3.5" SBC
    Dimension
    • 5.7" x 4" (14.6cm x 10.16cm)
    Processor
    CPU
    • Intel® Atom® Processor E3940
    • Single Socket FCBGA-1296 supported, CPU TDP supports Up to 9.5W TDP
    Core
    • Up to 4 cores, 4 threads
    Note
    System Memory
    Memory Capacity
    • 1 DIMM slots
    • Up to 8GB Unbuffered non-ECC SODIMM, DDR3-1866MT/s
    Memory Type
    • 1866 MT/s non-ECC DDR3 SODIMM Unbuffered DDR3L up to 8GB
    DIMM Sizes
    • 2GB, 4GB, 8GB
    Memory Voltage
    • 1.35V
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • SoC controller for 1 SATA3 (6 Gbps) ports
    Audio
    • ALC 888S HD Audio
    Graphics
    • 1 Intel® HD Graphics port(s)
    Network Controllers
    • Dual LAN with Intel® Ethernet Controller I210-AT
    Input / Output
    SATA
    • 1 SATA3 (6Gbps) port(s)
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports
    USB
    • 1 USB 3.2 Gen2 port(s) (1 type C)
    • 4 USB 2.0 port(s) (4 via header)
    • 2 USB 3.0 port(s) (2 rear)
    Video Output
    • 1 VGA port(s), 1 HDMI port(s), 1 48-bit LVDS port(s)
    Serial Port
    • 4 COM Port(s) (4 header)
    TPM
    • 1 TPM Chip
    Others
    • 1 8-bit GPIO header
    • 1 SMBus header
    • 1 System Fan
    • 1 Panel backlight power header
    • 1 Speaker
    • 1 HD Audio header (Mic-in/Headphone-out)
    Expansion Slots
    PCIe
    • 1 Full size Mini-PCIe (USB2.0 x 1,PCIe Gen2 x 1)
    • 1 M.2 2280 B-Key (PCIe Gen2 x 1,SATA x 1)
    M.2
    • M.2 Interface: SATA; PCIe 2.0 x1; USB 2.0
    • Form Factor: 2280
    • Key: B-Key
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • ACPI 6.0
    • SMBIOS 3.0
    • UEFI 2.5
    • PCI FW 3.0
    Management
    Software
    • SuperDoctor® 5, Watchdog
    System Management Software
    • SuperDoctor 5
    Power Configurations
    • ACPI Power Management, +12V DC Power Input, Control of power-on for recovery from AC power loss, Force Power On by Jumper
    PC Health Monitoring
    Voltage
    • VBAT, System temperature, System level control, 3.3V standby, +5V, +3.3V, +12V, +1.35V, VCGI
    LED
    • Standby alert LED
    Temperature
    • CPU thermal trip support
    FAN
    • 1x 4-pin fan header (up to 1 fan)
    • Thermal control tachometer fan connectors
    • System level control
    • PWM fan speed control
    • Low noise fan speed control
    • Fan speed control
    Other Features
    • WOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ACPI power management, 4-pin 12v DC power connector
    Operating Environment
    Operating Temperature Range
    • 0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    Passive heatsink
    SNK-C0103L1A2SAN-H Heatsink 20mm height
    SATA cable
    CBL-SAST-08811SATA Data cable 25CM
    SATA Power Cable
    CBL-PWEX-09821SATA Power Cable 25cm
    Retail Package
    Audio Cable
    CBL-OTHR-09861Audio Cable 20cm
    COM Cable
    CBL-CUSB-09841COM Cable 20cm
    Passive heatsink
    SNK-C0103L1A2SAN-H Heatsink 20mm height
    QRG
    MNL-1935-QRG1Motherboard Quick Reference Guide
    SATA cable
    CBL-SAST-08811SATA Data cable 25CM
    SATA Power Cable
    CBL-PWEX-09821SATA Power Cable 25cm
    USB Cable
    CBL-CUSB-09831USB2.0 cable 20cm

    Optional Part List

    Part Number Quantity Description
    M.2 Module bracket
    MCP-290-00161-0N1Bracket for add 2242/3042 module support
    Mini PCIe extended bracket
    MCP-110-00097-0N1Mini PCIe extended bracket to extend half size to full size
